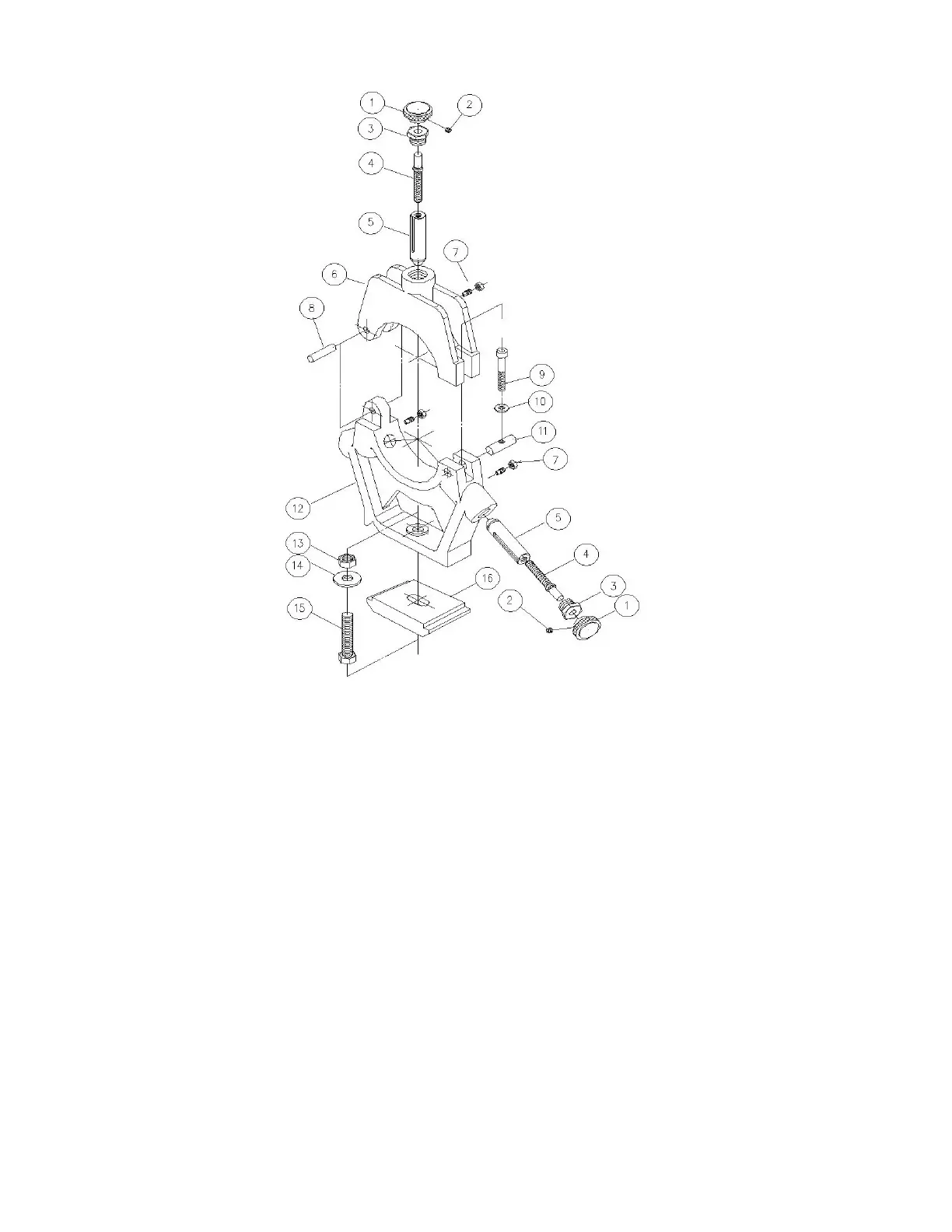

15.17.1 EVS-1440B Steady Rest Assembly – Exploded View
15.17.2 EVS-1440B Steady Rest Assembly – Parts List
Index No Part No Description Size Qty
1 ................ E1440VS-FR01 ......... Nut ........................................................................... Ø20xØ24x25L ............... 3
2 ................ TS-1523011 .............. Set Screw ................................................................ M6x6mm ....................... 3
3 ................ E1440VS-FR03 ......... Screw ....................................................................... Ø23x17L ....................... 3
4 ................ E1440VS-FR04 ......... Set Screw ................................................................ Ø9.5x77L ...................... 3
.................. E1440VS-FR01A ....... Nut Assembly (includes #1~4) ................................. ...................................... 3
5 ................ EVS1440B-SR05 ...... Bronze Shaft ............................................................ Ø18.8x78L .................... 3
6 ................ E1236VS-SR06 ......... Arm .......................................................................... 168x32x125 .................. 1
7........TS-1523041/TS-2311061 ... Set Screw w/Nut ...................................................... M6x12L + M6 nut .......... 3
8 ................ E1440VS-SR08 ......... Shaft ........................................................................ Ø8x40L ......................... 1
9 ................ TS-1504111 .............. Socket Head Cap Screw ........................................ M8x55mm ..................... 1
10 .............. TS-0732061 .............. Washer .................................................................... 3/8 in ............................. 1
11 .............. E1440VS-SR11 ......... Pin ........................................................................... Ø12.7x40L .................... 1
12 .............. E1236VS-SR12 ......... Base ........................................................................ 171x32x153 .................. 1
13 .............. TS-0561051 .............. Nut ........................................................................... 1/2 in. ............................ 1
14 .............. TS-0680061 .............. Washer .................................................................... 1/2 in. ............................ 1
15 .............. TS-0070071 .............. Cap Screw ............................................................... 1/2x2-1/2 in. .................. 1
16 .............. EBL1236-F30 ............ Clamp Plate ............................................................. 85Lx94Wx28h ............... 1
