Jet EVS-1440B - EVS-1440 B Chuck Assembly - Exploded View; EVS-1440 B Chuck Assembly - Parts List; EVS-1440 B Face Plate (OPTIONAL) - Exploded View; EVS-1440 B Face Plate (OPTIONAL) - Parts List

55

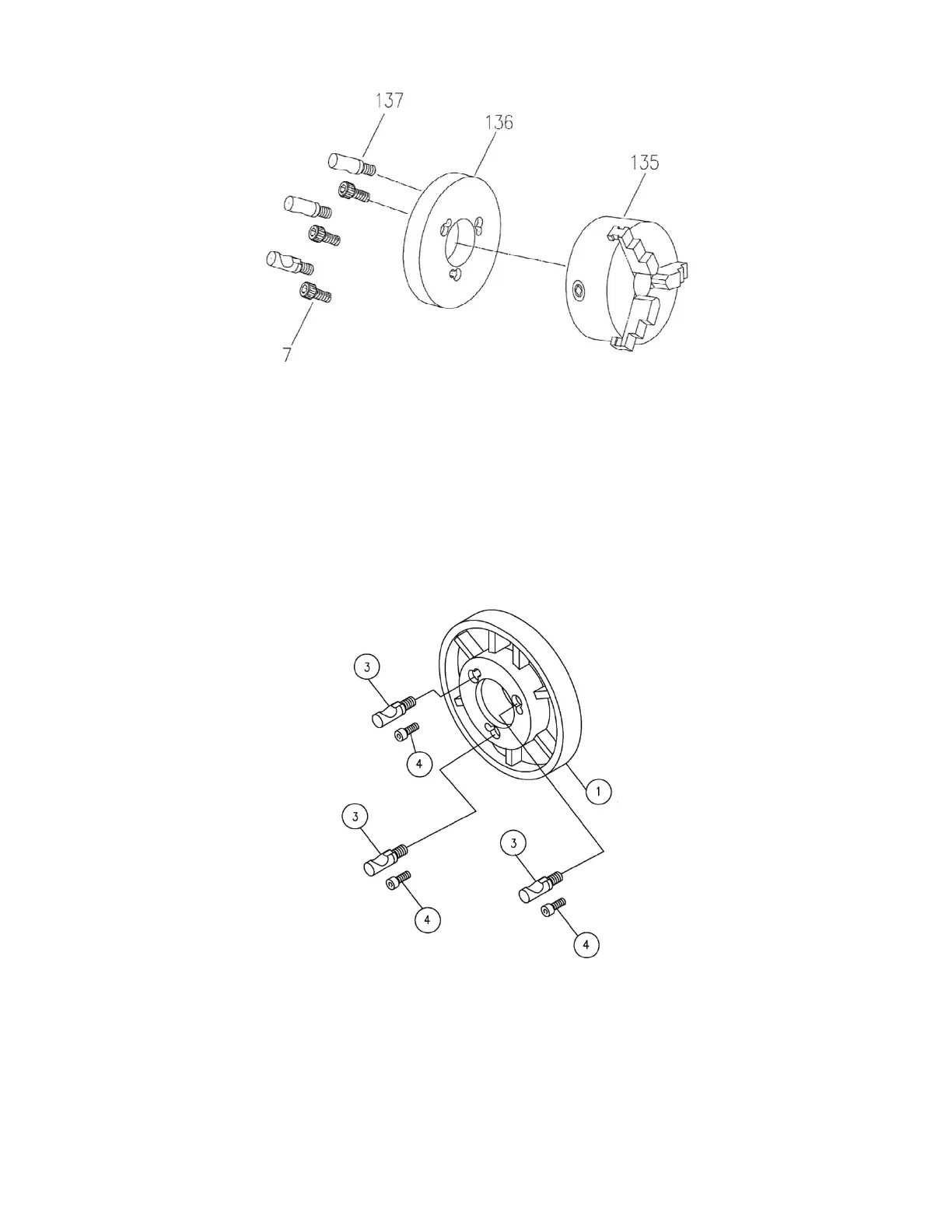

15.13.1 EVS-1440B Chuck Assembly – Exploded View
15.13.2 EVS-1440B Chuck Assembly – Parts List
Index No Part No Description Size Qty
7 ................ TS-1503051 .............. Socket Head Cap Screw ........................................ M6x20mm ..................... 3
135 ............ EBL1236VS-SK6 ....... 3-Jaw Scroll Chuck .................................................. 6" ................................... 1
136 ............ EBL1236VS-G136 ..... Backplate ................................................................. 6" ................................... 1
137 ............ EBL1236VS-G137 ..... Stud ......................................................................... D1-4 .............................. 3
15.14.1 EVS-1440B Face Plate (OPTIONAL) – Exploded View
15.14.2 EVS-1440B Face Plate (OPTIONAL) – Parts List
Index No Part No Description Size Qty
1 ................ E1440VS-FP02 ......... Face Plate 12” ......................................................... Ø300x40Hmm ............... 2
3 ................ EBL1236VS-G137 ..... Stud ......................................................................... D1-4 .............................. 3
4 ................ TS-1503051 .............. Socket Head Cap Screw ......................................... M6x20 ........................... 3
