FX-DIS Local Controller Display Technical Bulletin20
6. Select a Command and press Enter. The Adjust page appears (Figure 25). For
analog points, use the left and right arrow keys to position the cursor to a
desired digit location. Then, use the up/down arrow keys to increment and
decrement a value. For binary points, use the up/down arrow keys to scroll
through the available selections. Figure 25 shows an example for the Adjust
Pages.
7. Press Enter to select Accept.
8. Press Enter again to verify the selection and send the command.
9. Press Esc to return to the Main Menu.
Displaying Overridden Points
To display overridden points:
1. Go to the Main Menu.
2. Select the Overrides option. A list of all points that are currently overriden
appears (Figure 26). If no points are overriden, the user message Status: No
objects are overridden appears.
3. Use the up/down arrow keys to scroll through the list of points and their current
values.
Adjust
Accept
Cancel
OCC-SCHEDULE
Selections
FIG:CmdOccSch
Occupied
Current Setting
Occupied

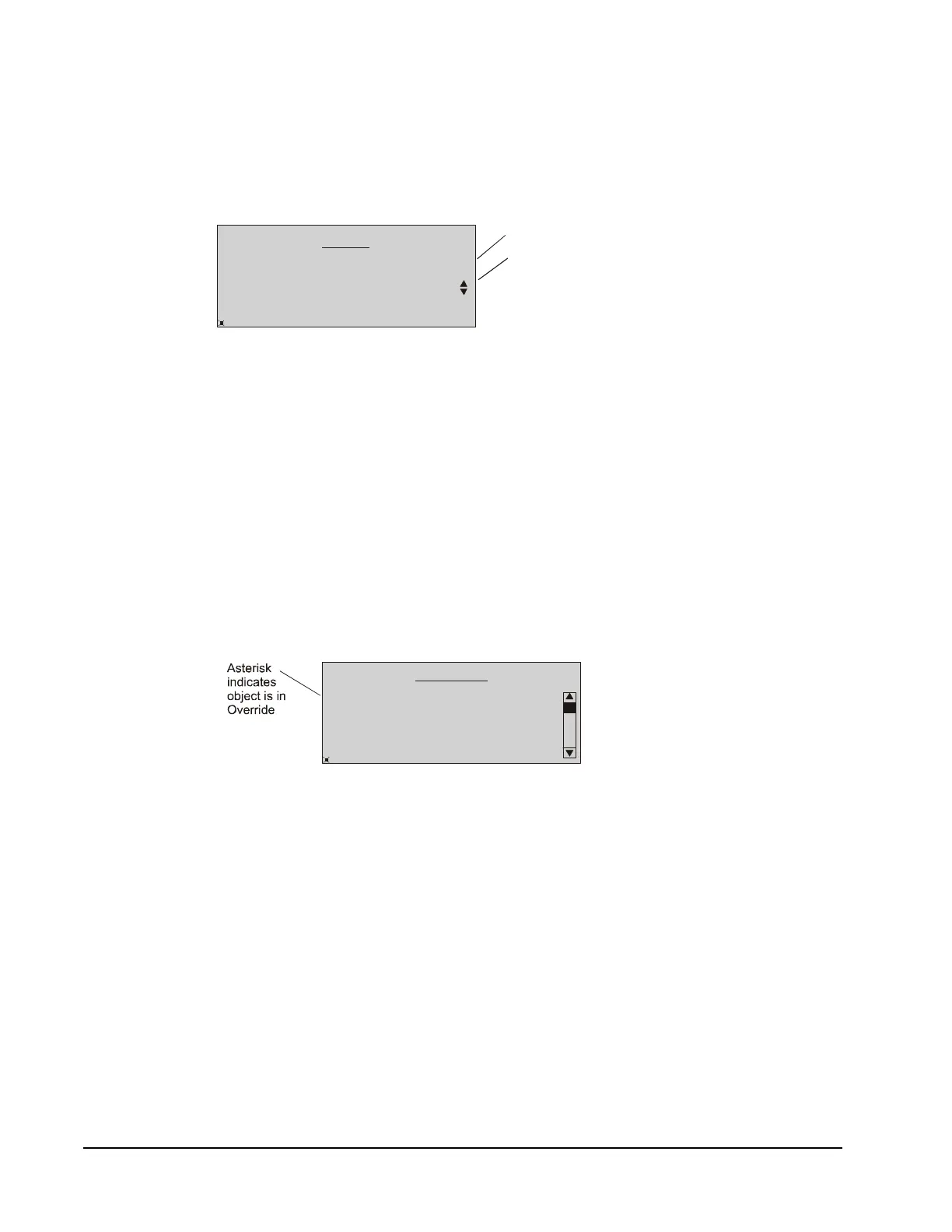

Figure 26: Overrides Page
Overrides
*ZN-SP
*CLG-EN
FIG:OvrLst
75.0
False
To Next Page
