FX-DIS Local Controller Display Technical Bulletin 5
Local Controller Display on the Sensor Actuator (SA) Bus
The Local Controller Display is an optional accessory to an FX-PCG and FX-PCV
that provides a user interface to the device. The display installs on the front door of
the panel that houses the controller and is connected to the SA Bus. Figure 1 shows
an example network of FX-PC controllers with Local Controller Displays.

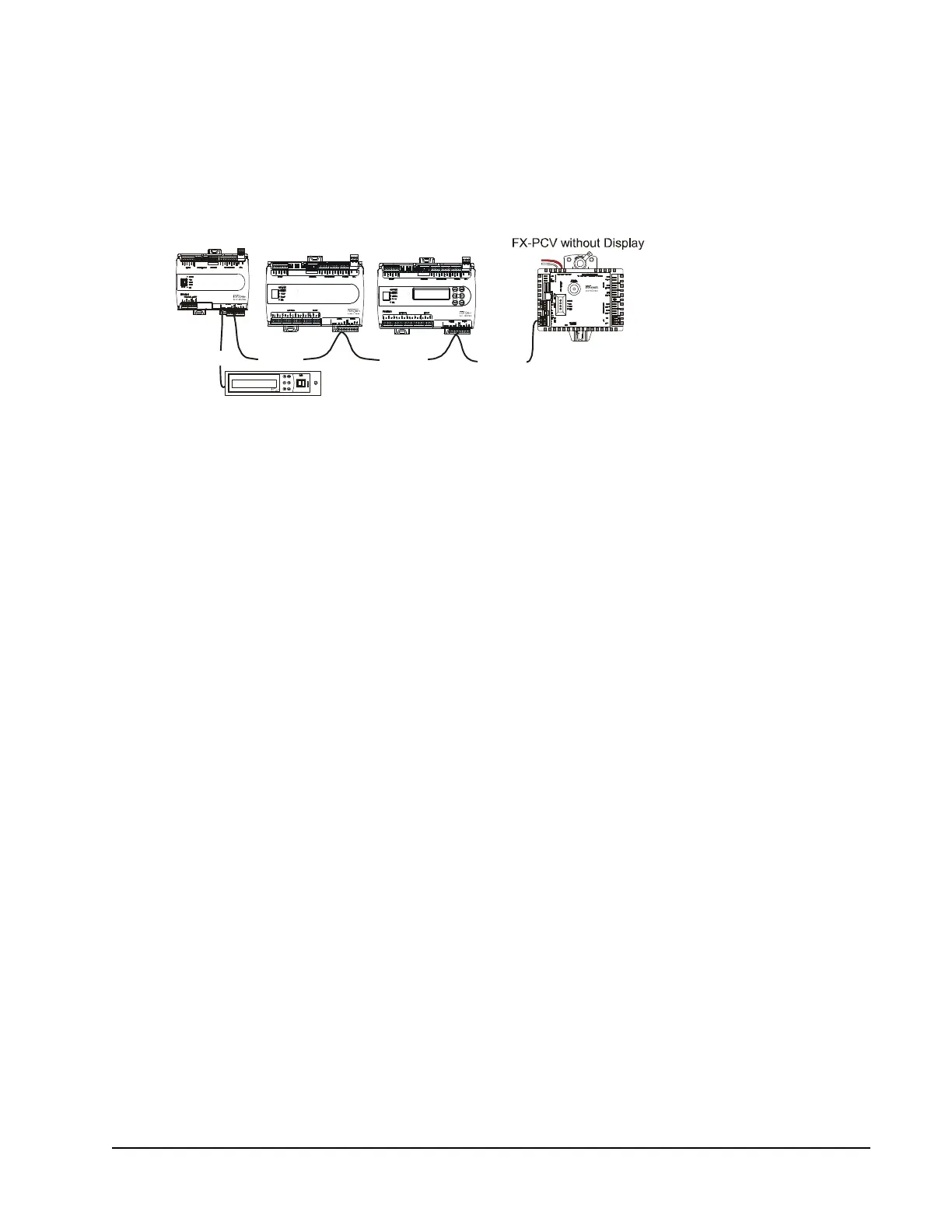

Figure 1: FX-PC Controllers on the FC Bus
F
X
_
F
I
G
:
D
I
S
_
N
t
w
r
k
FX-PCG
without Display
FX-PCG
with Integral Display
* Typically, a local display is mounted to the door of an enclosure that contains the controller.
FX-DIS**
FC Bus FC Bus
FX-PCG with
Local Display*
SA Bus
FC Bus
** Note: Do not connect the local display to an FX-PCG that has an integral display.
PCG
PCG
FX-PCV-1610-0
PCG
