Alarm Operation
Shown in Figure 26, the Alarm Configuration screen of the Unit Ventilator
Controller configuration wizard provides user-set alarms. You can configure and
enable these alarms to match the requirements of your current site. User-set alarms
are available for the following control points:
• space air temperature
• discharge air temperature
• return air temperature
• mixed air temperature
• space humidity
• auxiliary alarm
• fan alarm
• pump alarm
In addition to the preceding user-set alarms, other alarms are provided. These
include:
• heartbeat alarms for network inputs
• disconnect alarms for sensor points
• emergency mode alarm

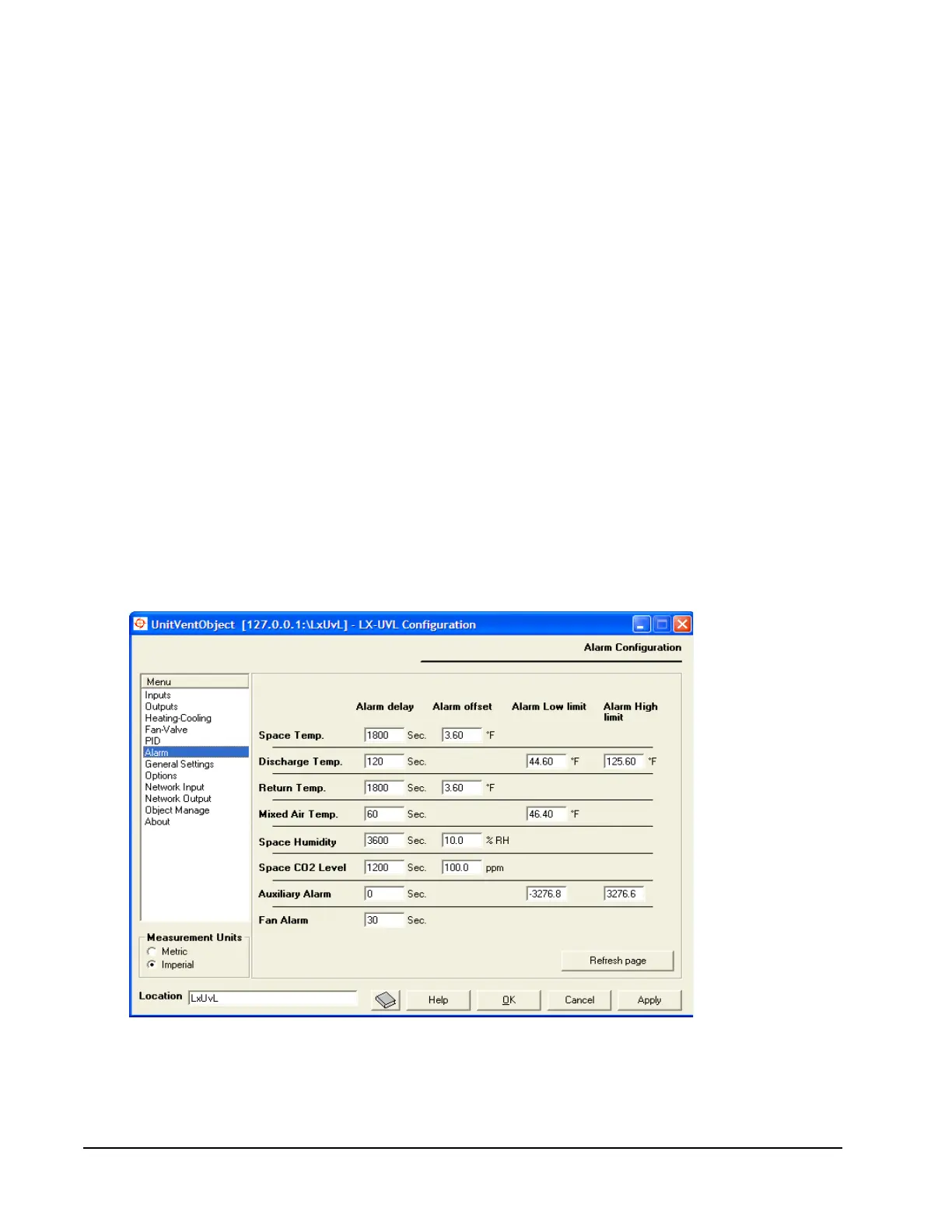

Figure 26: Alarm Configuration Screen
