UNT Controller—Unitary (UNT) Controller
DA1
COM BUS
T 1 T2
240 VAC 24 VAC
uvwire
BINARY IN
ANALOG INPUTS
BINARY OUTPUTS
ANA OUT
TE1
RM-T
RM-SP
TE2
TE3
Triac to
24 VAC
BOs High
Side
Switched
EP1
+
PNEUM
Power
Transformer
240/24 VAC
Fan
Relay
COM
IN
COM
S
20

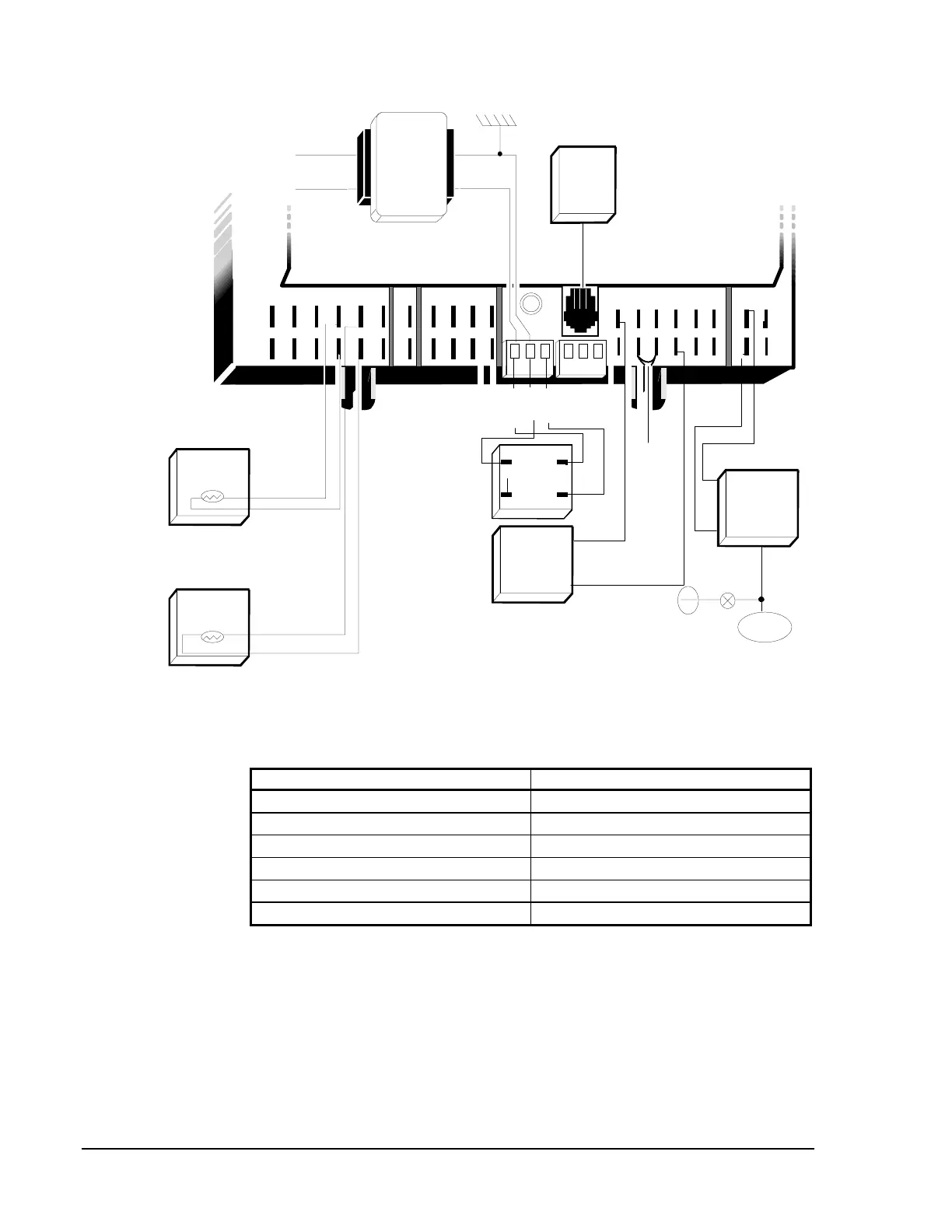

Figure 26: Unit Vent Wiring Example
Table 21: Unit Vent Bill of Materials
Component Description Part Number
C1 Digital Controller
AS-UNT111-1
TE1 Zone Temperature Sensor
TE-6400/6500 Series
TE2 Outdoor Air Sensor
TE-6300 Series
TE3 Discharge Air Sensor
TE-6300 Series
EP1 Electric to Pneumatic Interface
EP-8000 Series
DA1 Zone Damper Actuator
M100CGA-2
Bill of Materials
