d. Attach the female terminal with two wires to the TRIACS terminal.
e. Attach the female terminal with one wire to the common terminal
immediately adjacent to the TRIACS terminal.
Note: The MOV assembly will be factory installed on UNT220-1
controllers mounted in York rooftop units beginning
March 16, 1998.
The MOV assembly will not be factory installed on
UNT120-1 controllers.
•
For units meeting both conditions, install transient voltage
protectors in both locations as described above.
Attach
field wire
here.
workaround
MOV
Common
Tr i a c s

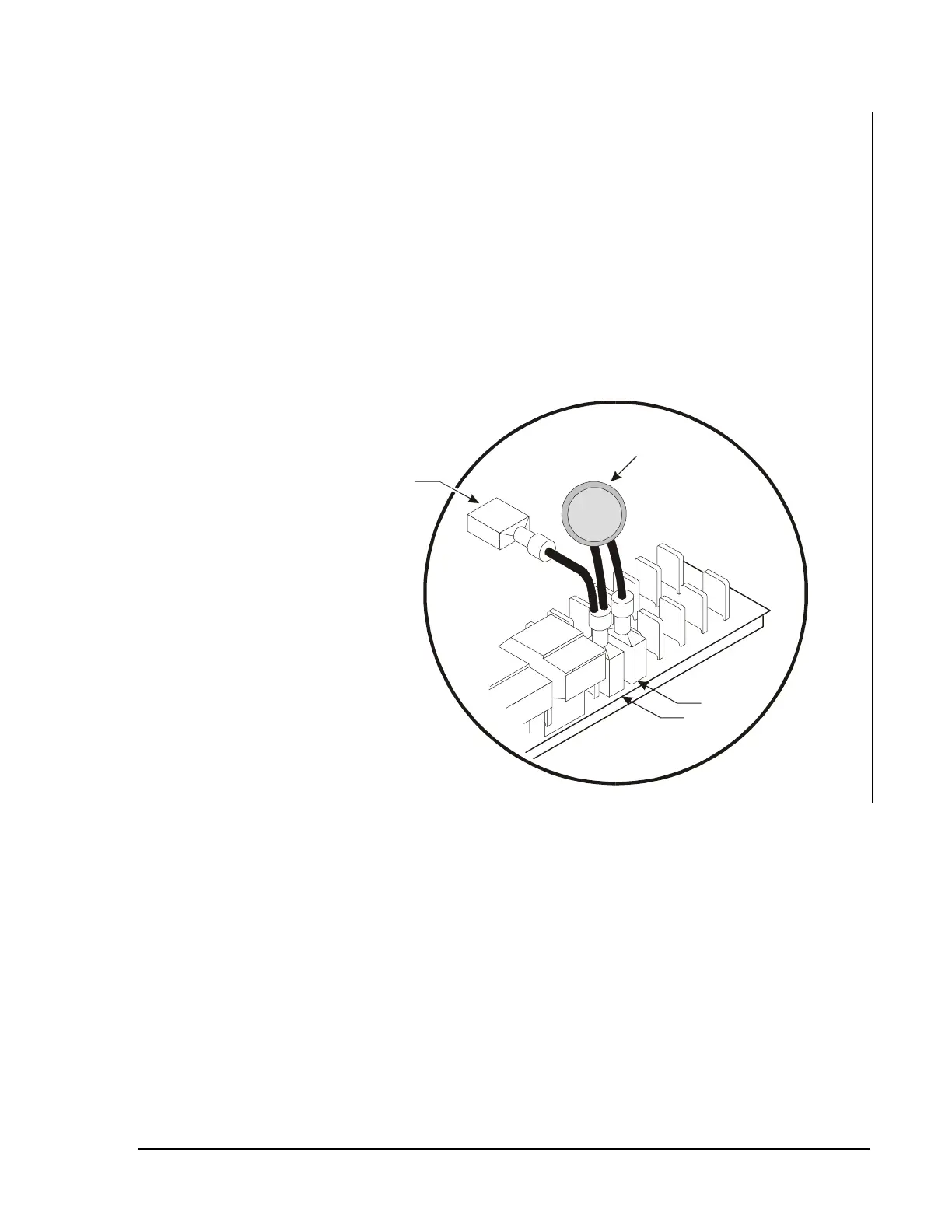

Figure 38: Installation of MOV
