ENGINE
Symbol Description
1
st

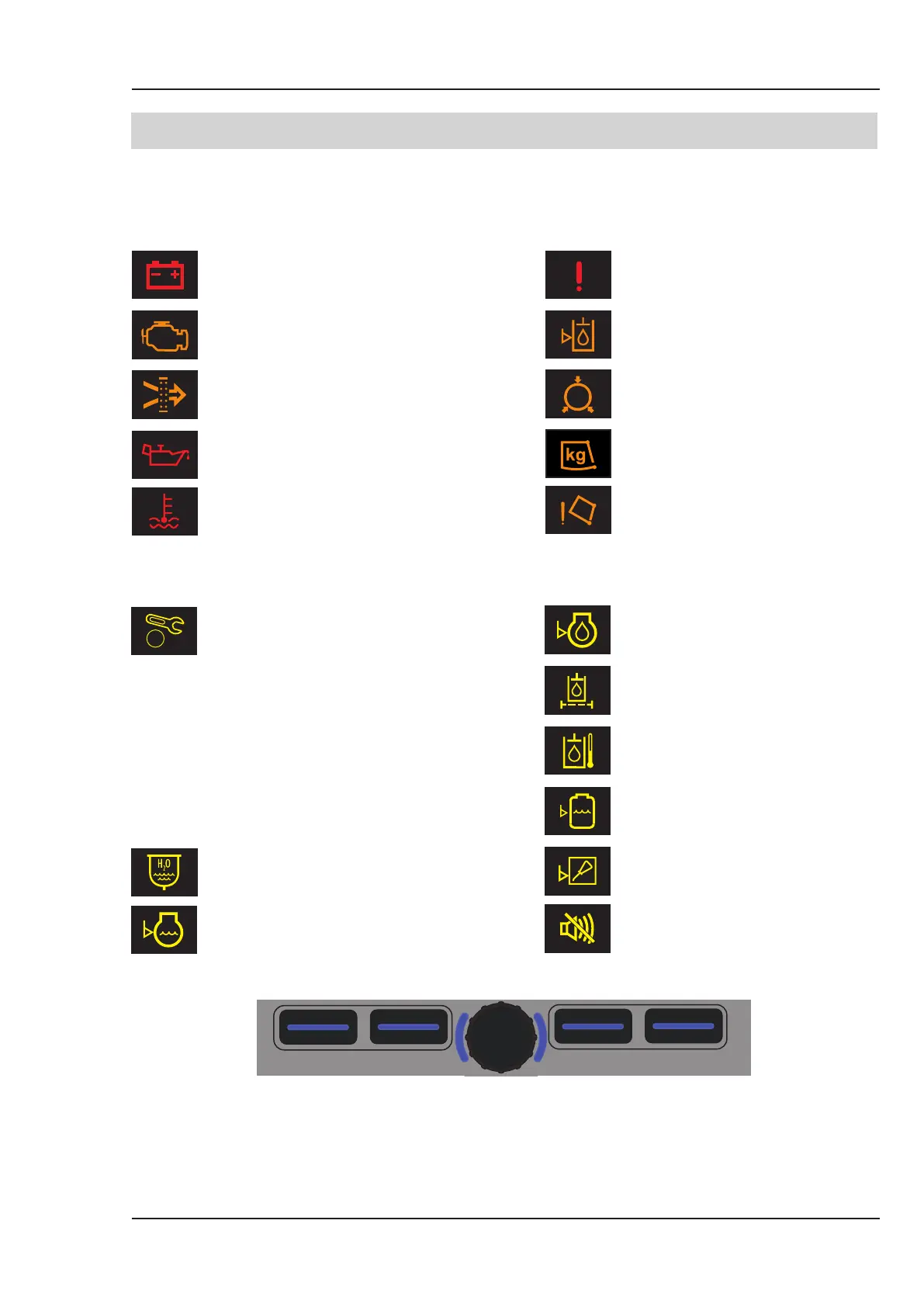

INFORMATION BAR
Alternator Charge
Engine Management
Air Filter State Indicator
Engine no oil pressure
Engine coolant overheat
Electrical Faults
Hydraulic oil low level
Low air pressure and audible
warning
Vehicle overload
Body raise indicator/rear door
locks open
Symbol Description
Symbol Description
Symbol Description
MULTIFUNCTONALSOFTKEYSANDROTARYENCODER
SoftKeys
Depending on screen selection the functions change. The function is displayed above
the key with a blue icon.
Rotary Encoder
Enables you to navigate the menus. Pressing it selects the highlighted icon.
1st 50 Hour Service
A 500 Hour Service
B 1000 Hour Service
A 1500 Hour Service
C 2000 Hour Service or 12
Monthly
D
4000 Hour Service or 24
Monthly
Water in Fuel System
Engine Coolant low level
Engine Oil low level
Hydraulic Filter State Indicator
Water Tank low level
Low Autolube
Mute internal buzzer
Hydraulic Oil Temperature
F1
F2
F3
F4
