Johnston VT651 - VS - Single Engine Centre Console

Chapter - Controls
Page Issue 01
OG
2:6
V Range 501 ● 651 ● 801 - Operator’s Guide

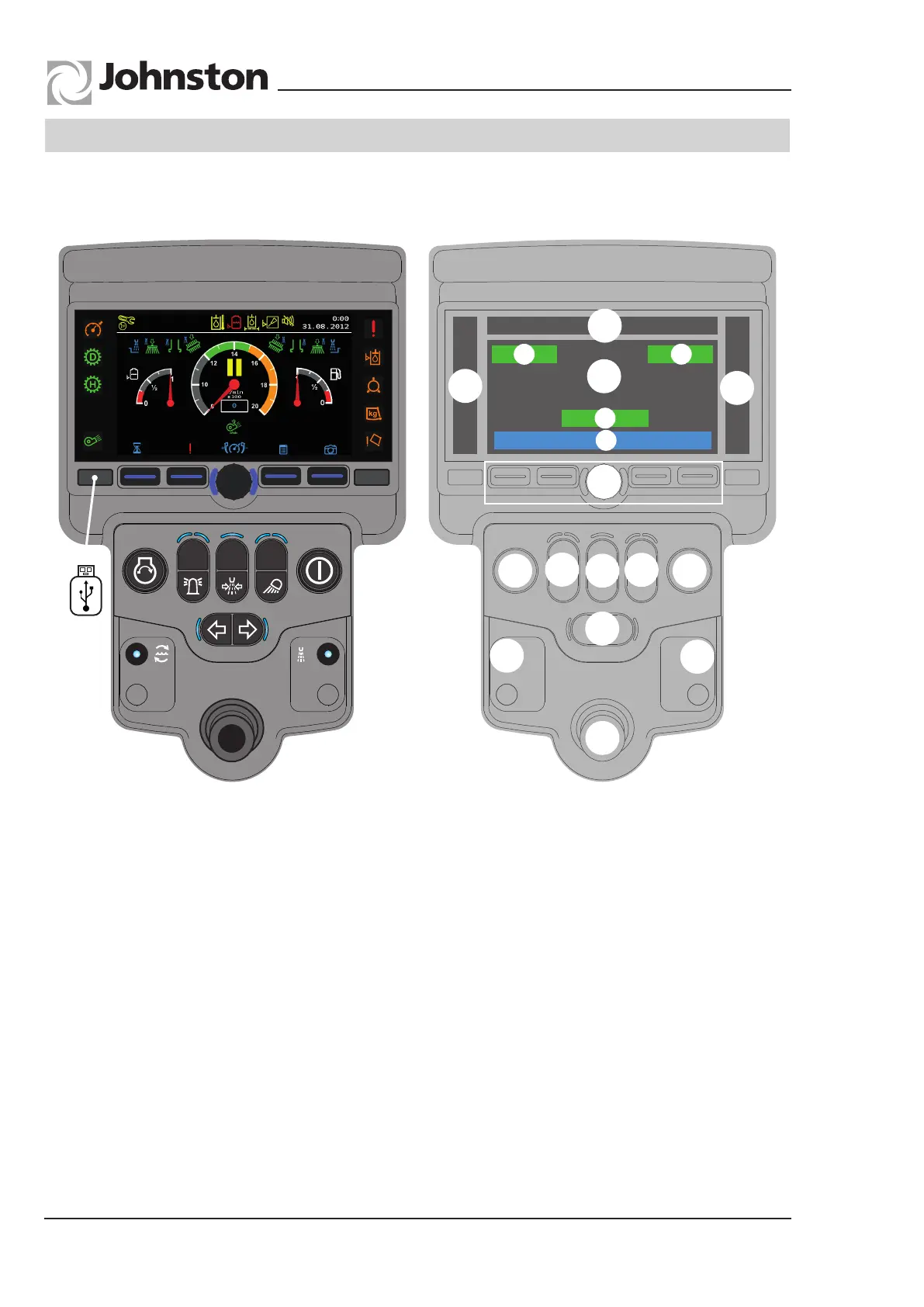

CENTRE CONSOLE
F1
F2
F3
F4
+
USB
MO2OG-055
F
G
E
L
H
I
K
B
C
A
A
J
M
D
1
2
3
4
A Warning LED’s
B Information Bar
C Display Screen
1 Left hand sweep status
2 Right hand sweep status
3 Option status
4 Soft key function
D Soft Keys and Rotary Encoder
E Sweeper Ignition and Initiates
engine rpm
F Gearbox Engage/Dis-engage
G Sweep Select
H Beacons
I * Supawash
J Work Lamps
K * Water Recirculation
L * Additional Water Sprays
M Directional drive selector
* Denotes Optional Equipment
VS - Single Engine
