V Range 501 ● 651 ● 801 - Operator’s Guide
SYSTEMS WAFER FUSES
POWAPAK
NODE
SUBFRAME
NODE
AUXILLARY
ENGINE
FRONT
BEACON
SYSTEMS
LOCKER
NODE
HIGH
CURRENT
NODE 1
WIDE
SWEEP
BALANCE
CAB
CONTROLS
20A
F1
20A
F2
20A
F3
20A
F4
20A
F5
15A
F6
F7
15A
F8
15A
F9
10A
F10
5A
F11
10A
F12
HIGH
CURRENT
NODE 2
FRONT
SYSTEMS
NODE
ROTATILT
SPARE
10A
MAX
MO2OG-013
15A

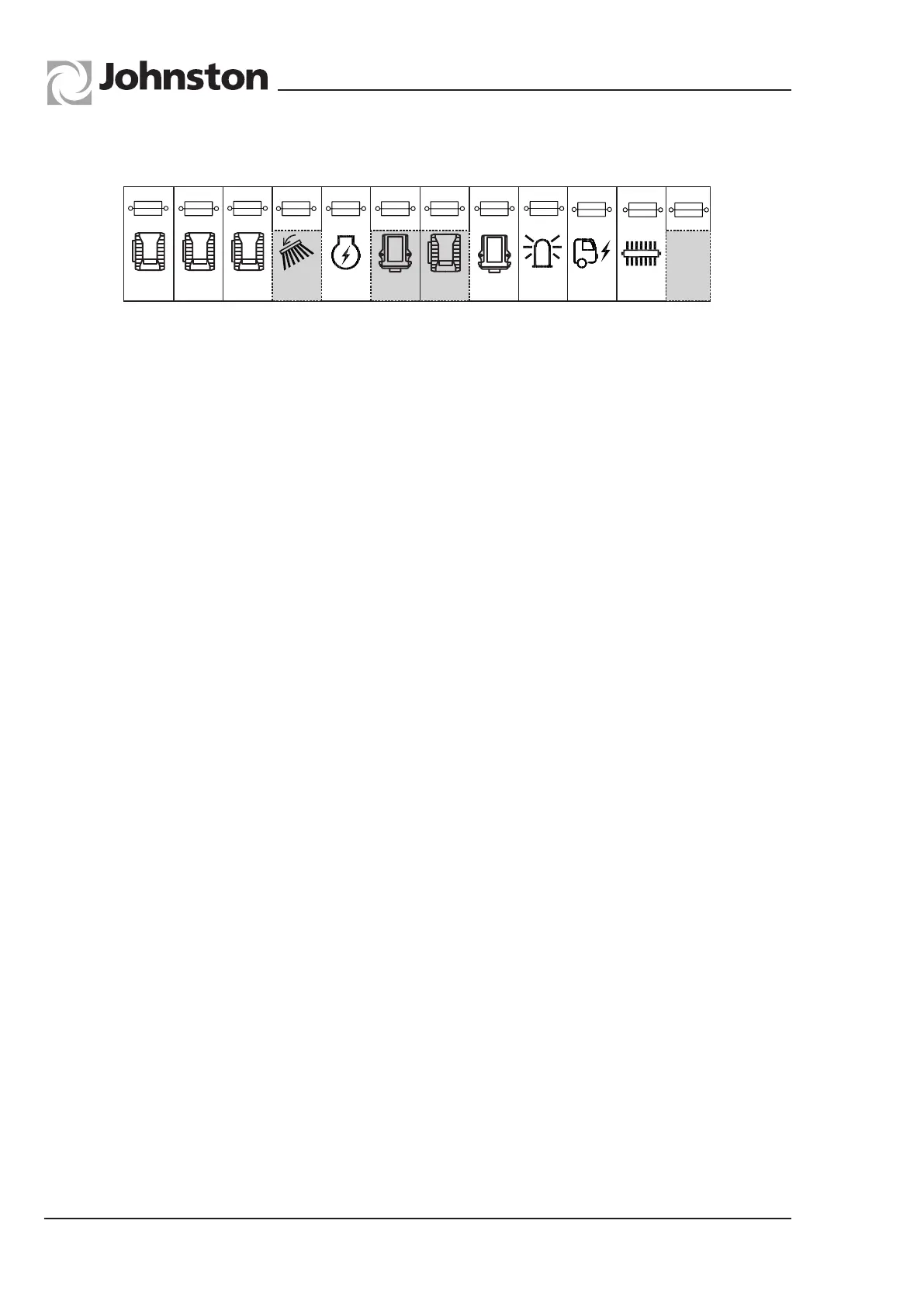

Fuse No. Function VT VS Colour
F1 Systems Locker Node 20 20 Yellow
F2 Powapak Node 20 20 Yellow
F3 Subfame Node 20 20 Yellow
F4 Rotatilt Option 20 20 Yellow
F5 Auxiliary Engine 20 N/A Yellow
F6 High Current Node 2 15 15 Blue
F7 Front Systems Node 15 15 Blue
F8 High Current Node 1 15 15 Blue
F9 Front Beacon 15 15 Blue
F10 Cab Control 10 10 Red
F11 Wide Sweep Brush 5 5 Orange
F12 Spare 10 10 Red
