Johnston VT651 - External Controls - Body Rear

Chapter - Controls
Page Issue 01
OG
2:13
V Range 501 ● 651 ● 801 - Operator’s Guide
Johnston Sweepers Limited

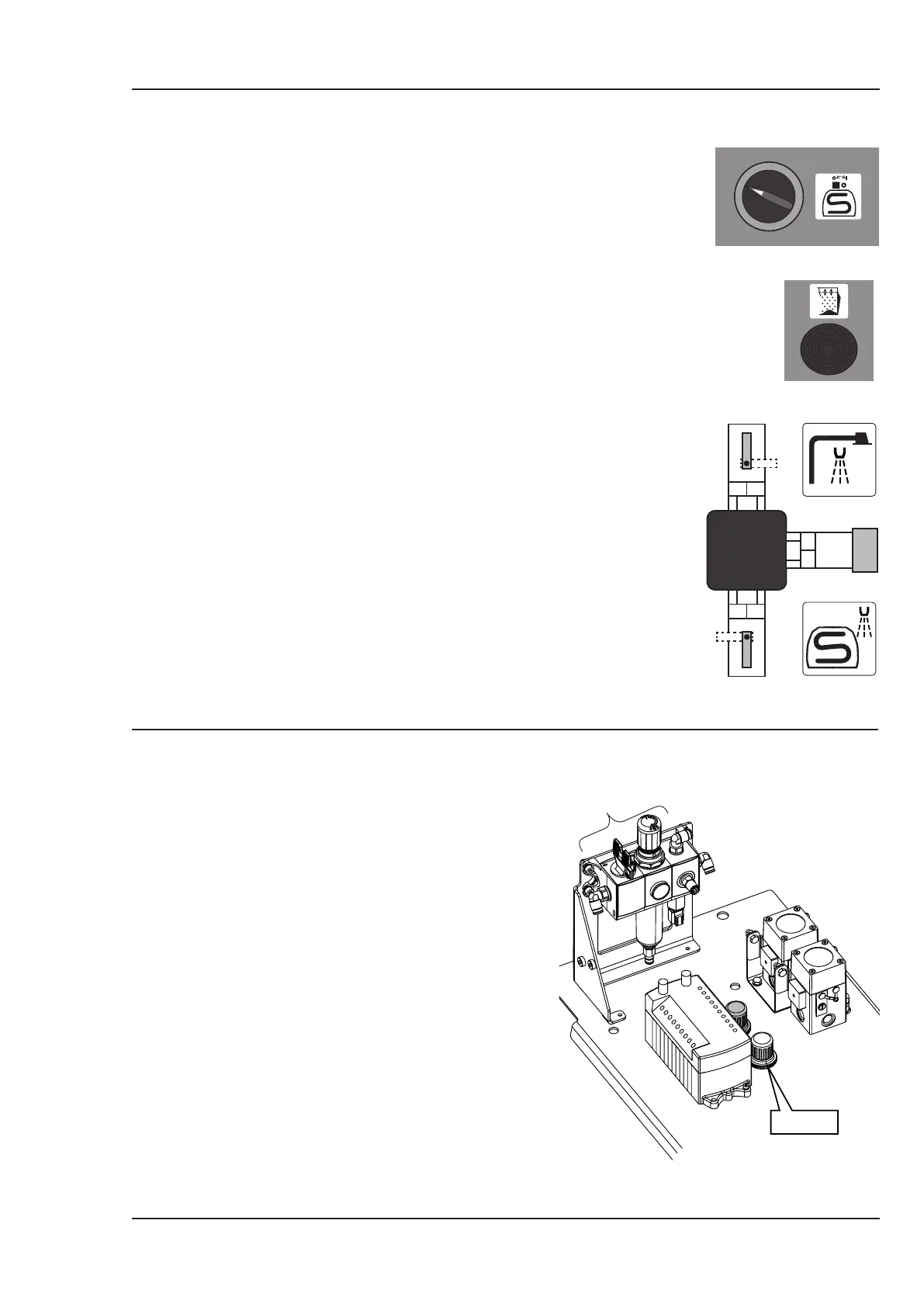

EXTERNAL CONTROLS - BODY REAR
A - Top Mounted Wanderhose Water
Manual tap
B - Wash Down Hose
Bayonet fitting
C - Littasnatch Water
Manual tap
MO2OG -038
MO2OG -039
MO2OG -040
A
C
B
RearMeshShaker
Push Button - Press to activate mesh shakers
Littasnatch
Rotary Switch - Opens/Closes Littasnatch Gate
Wide Sweep Brush Lift
P-18V1
Wide Sweep Brush lift regulator
EXTERNALCONTROLS-SYSTEMSLOCKER
A - Pneumatic Filter Regulator
Including:
Isolation tap
Air Pressure switch
Air Pressure gauge
MO2OG-043
P-18V1
A
