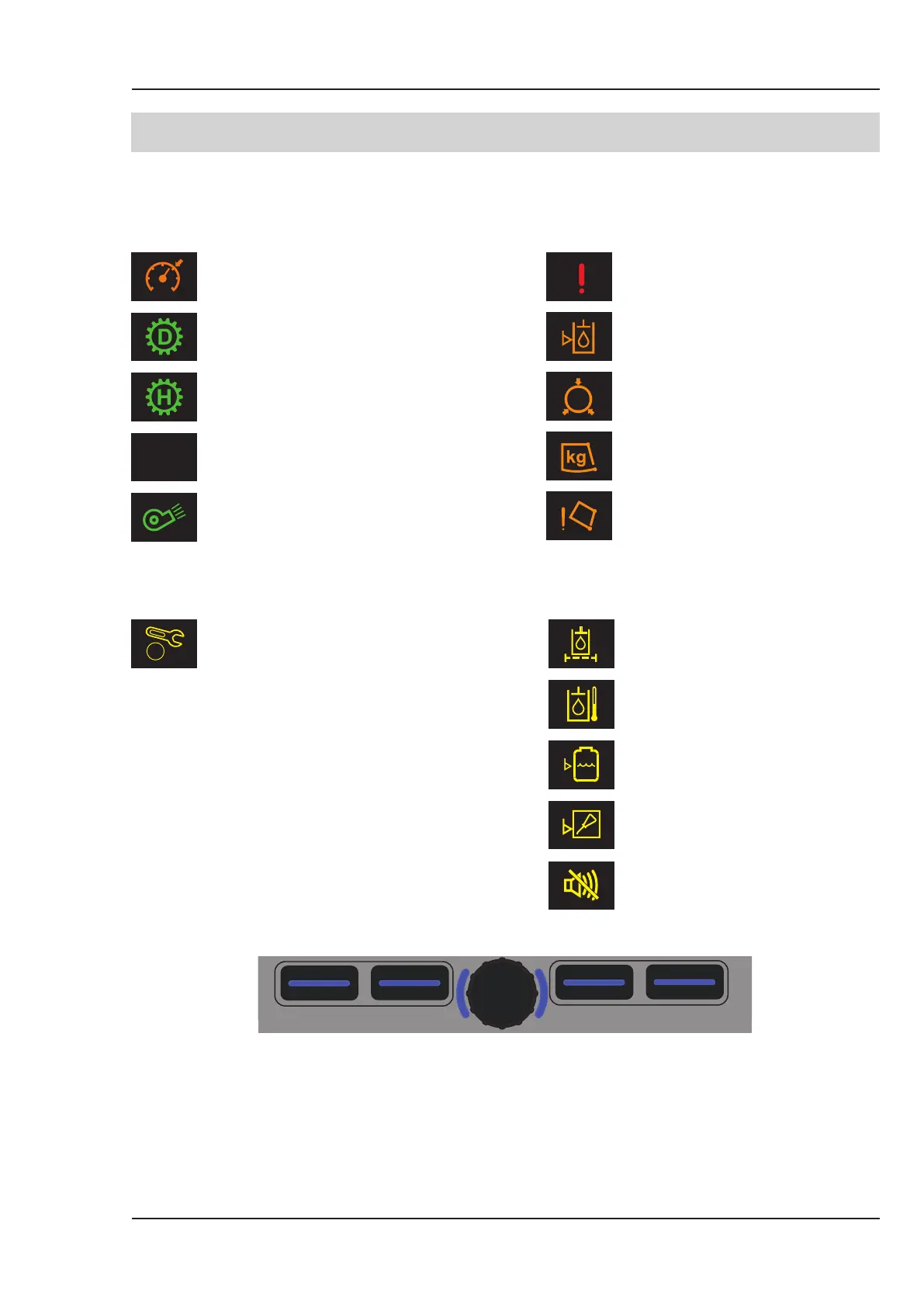

ENGINE
Symbol Description
INFORMATION BAR
Cruise Control Active
Transit Drive - Work Mode
Disengaged
Hydrodrive Drive - Work Mode
Enaged
Not used
Suction Fan Active
Electrical Faults
Hydraulic oil low level
Low air pressure and audible
warning
Vehicle overload
Body raise indicator/rear door
locks open
Symbol Description
Symbol Description
Symbol Description
MULTIFUNCTONALSOFTKEYSANDROTARYENCODER
SoftKeys
Depending on screen selection the functions change. The function is displayed above
the key with a blue icon
Rotary Encoder
Enables navigation of the menus. Pressing it selects the highlighted icon.
When Forward drive is selected, the encoder controls the cruise function. Pressing the
encoder enables it, and rotating the encoder CW increases and CCW decreases the
road speed.
Hydraulic Filter State Indicator
Water Tank low level
Low Autolube
Mute internal buzzer
Hydraulic Oil Temperature
F1
F2
F3
F4
MO2OG-015
SYSTEMS
WARNING LED’s
1
st
1st 50 Hour Service
A 500 Hour Service
B 1000 Hour Service
A 1500 Hour Service
C 2000 Hour Service or 12
Monthly
VS - Single Engine
