9.3 Digital Screen Setting
When the control board is working, the users can check working state of gate opener by digital screen
on the control board.

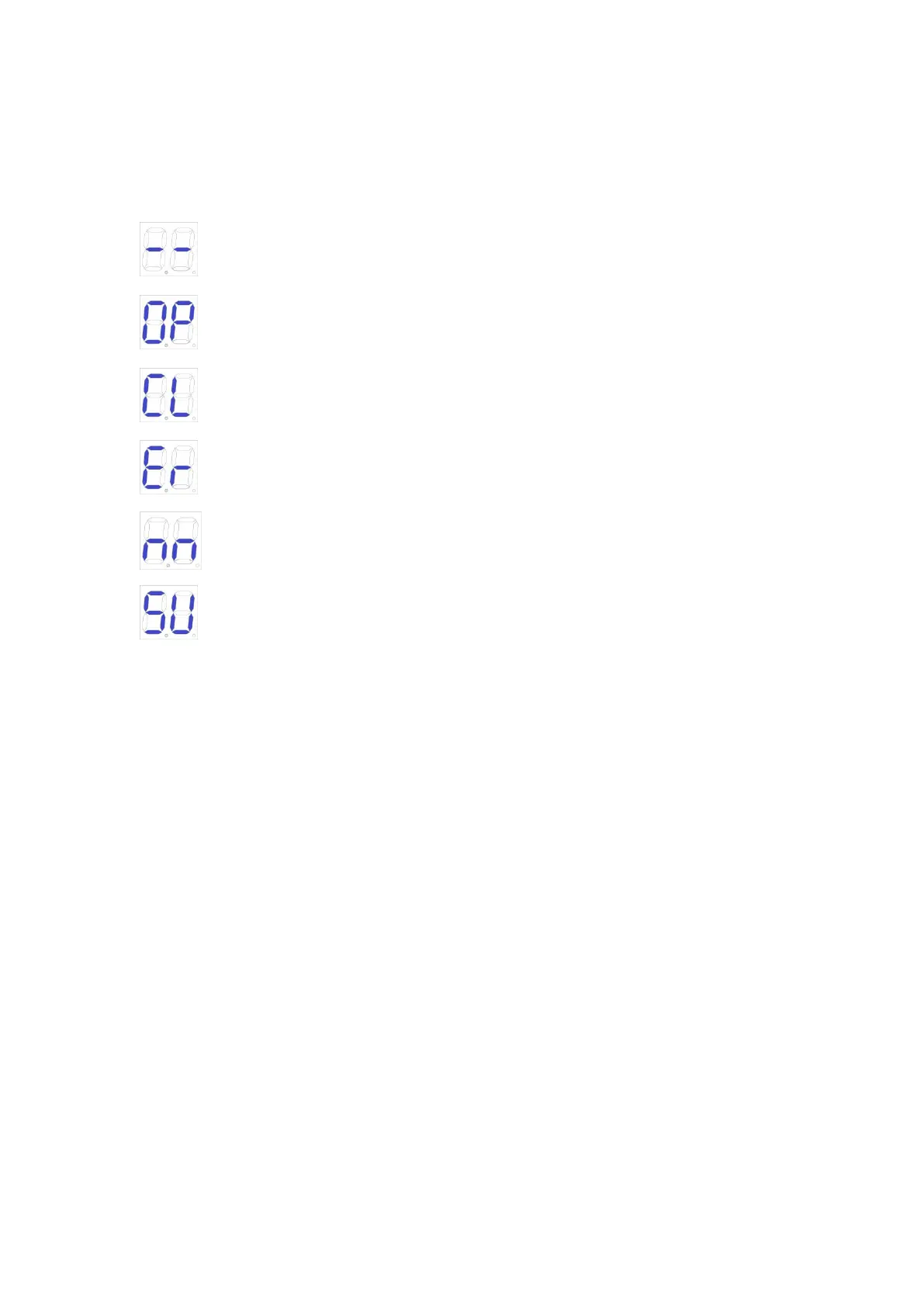

: no input;
: under opening state;
: under closing state;
: error;
:manual mode;
: travel setting;
9.4 Travel Setting (VERY IMPORTANT)
In the first installation of gate openers, the installer need to set open and closed limit switch positions
for running the travel.
Fully open both sides of the gate and lock the clutch, and then press and hold the "-" button on the
control board until the digital screen shows "SU". After this step, the gate will firstly run towards the
closing direction and stop, and then the gate will automatically open. When the two swing gates are fully
open, the gates will automatically close for the second time, and the travel setting will be completed
when the gates are closed. If the distance of starting slow speed of gate is not appropriate, adjust the
"SLOW DOWN " button to revise the distance.
Note:
If the gate suddenly stops during travel setting, please increase the resistance force.
If the gate didn’t stop when meets the obstacles during travel setting, please appropriately reduce
the resistance force.
Installer must redo travel setting after modifying the "SPEED" trimmer.
