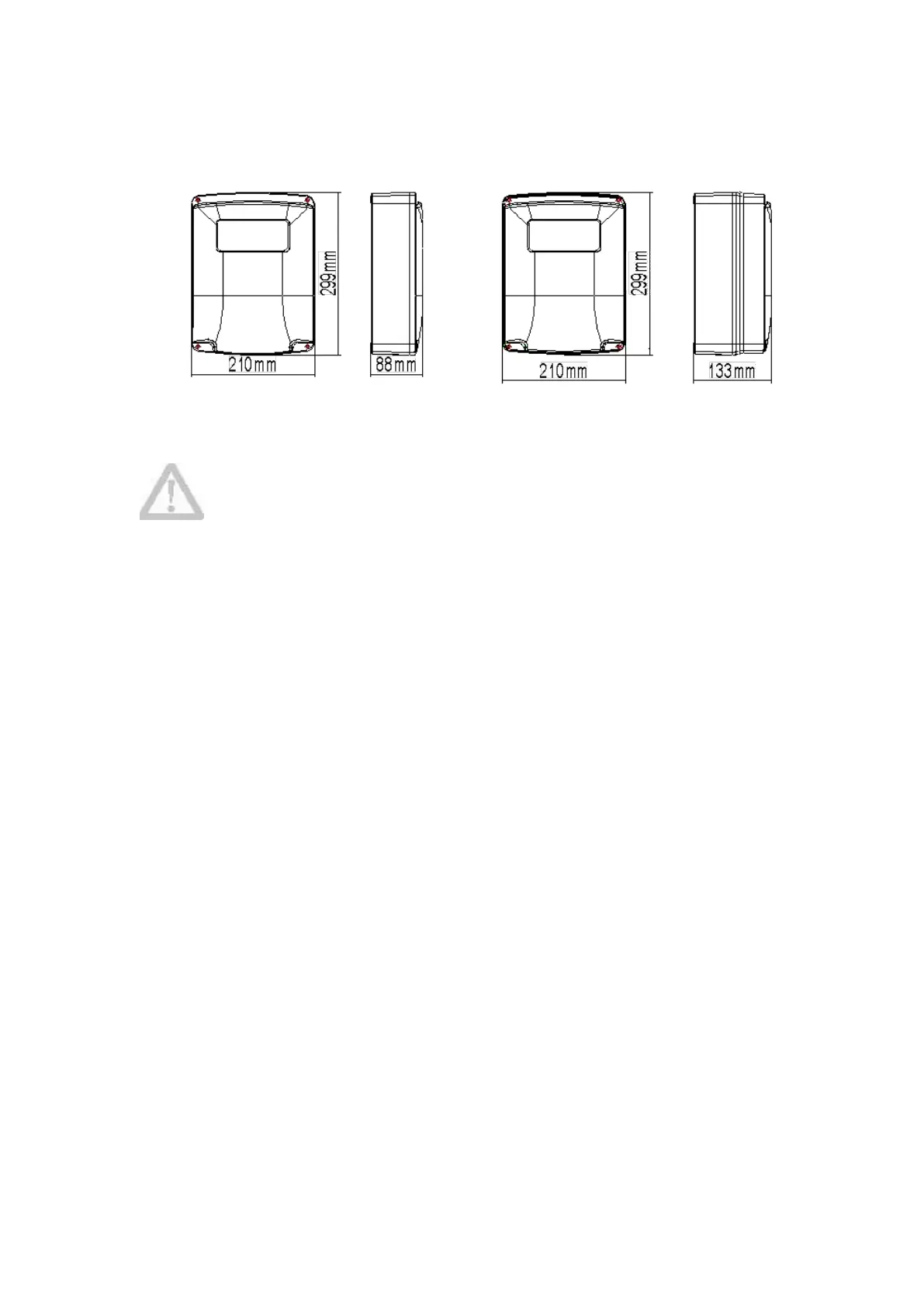

8.3 Dimension of Control Box
Figure 10
Note
To ensure safety and protect the machines, please install a gate stopper at the open limit position
when the gate opens outward to prevent the gate from running over its travel. Meanwhile, to
enable the 2 swings to close to its accurate limit position, please install a limit stopper at the closed
limit position (as shown in figure 3). Similarly, when the gate opens inward, please install a limit
stopper at the closed limit position (as shown in figure 2).
Before installing the main machine, please make sure the main machine and components are in
good mechanical performance and the gate can be manually operated flexibly.
One control unit can optionally drive one main machine or two main machines.
Earth leakage circuit breaker must be installed on where the gate movement can be seen, and the
minimum mounting height for the control box should be over 1.5m to avoid being touched by kids.
After installation, please check whether the mechanical property is good or not, whether gate
movement is flexible or not after unlocking, and whether the infrared sensor (optional) is installed
correctly and effectively.
