JOYTECH SW300DC - Page 11

9
Figure 7
E)

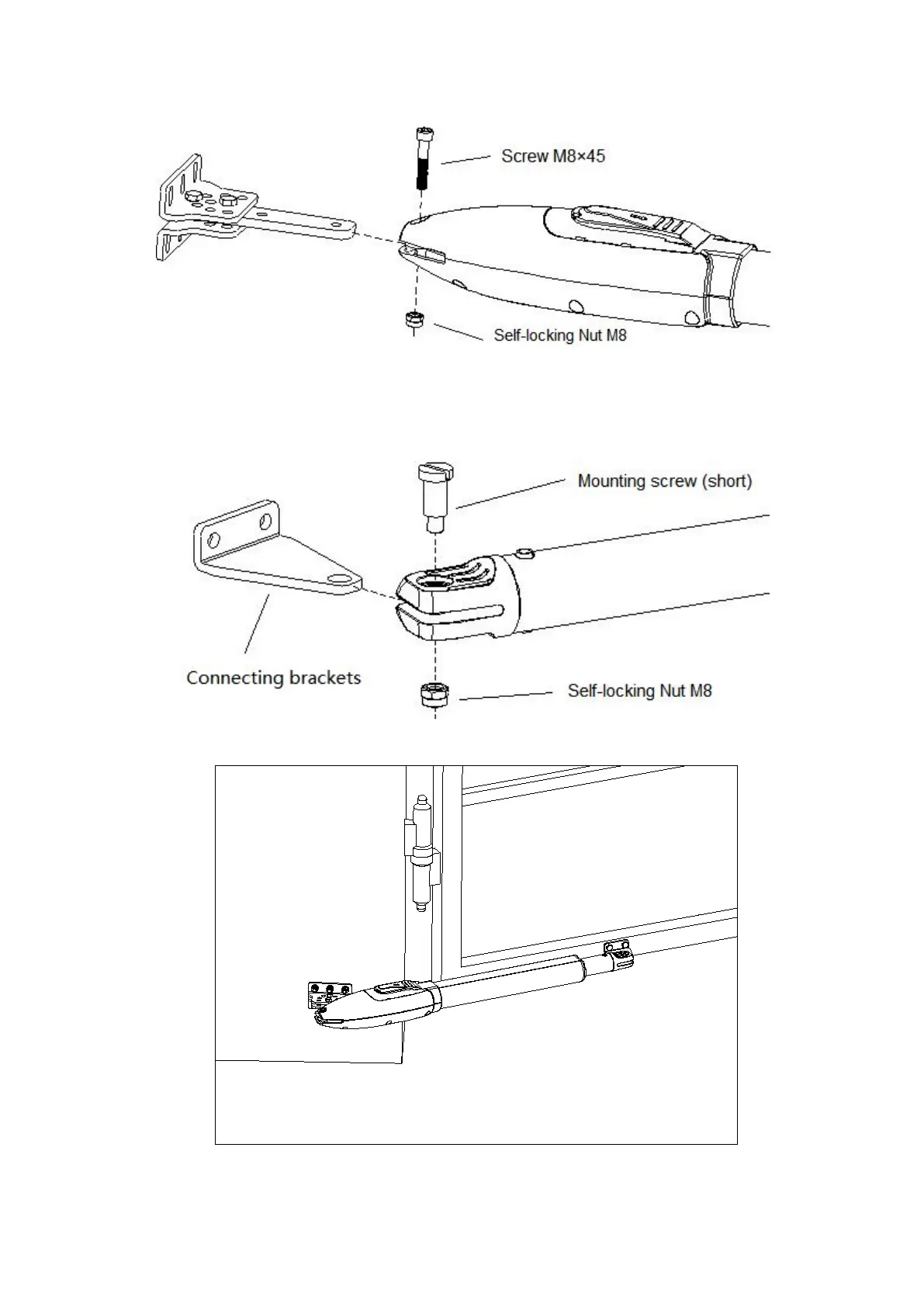

As shown in figure 8 below, connect wall bracket with wall according to marked position. Then,
connect main machine with wall bracket by screw and nut. (Please use spirit level to make sure the
installation levelness.)
Figure 8
Figure 9
