Figure 4

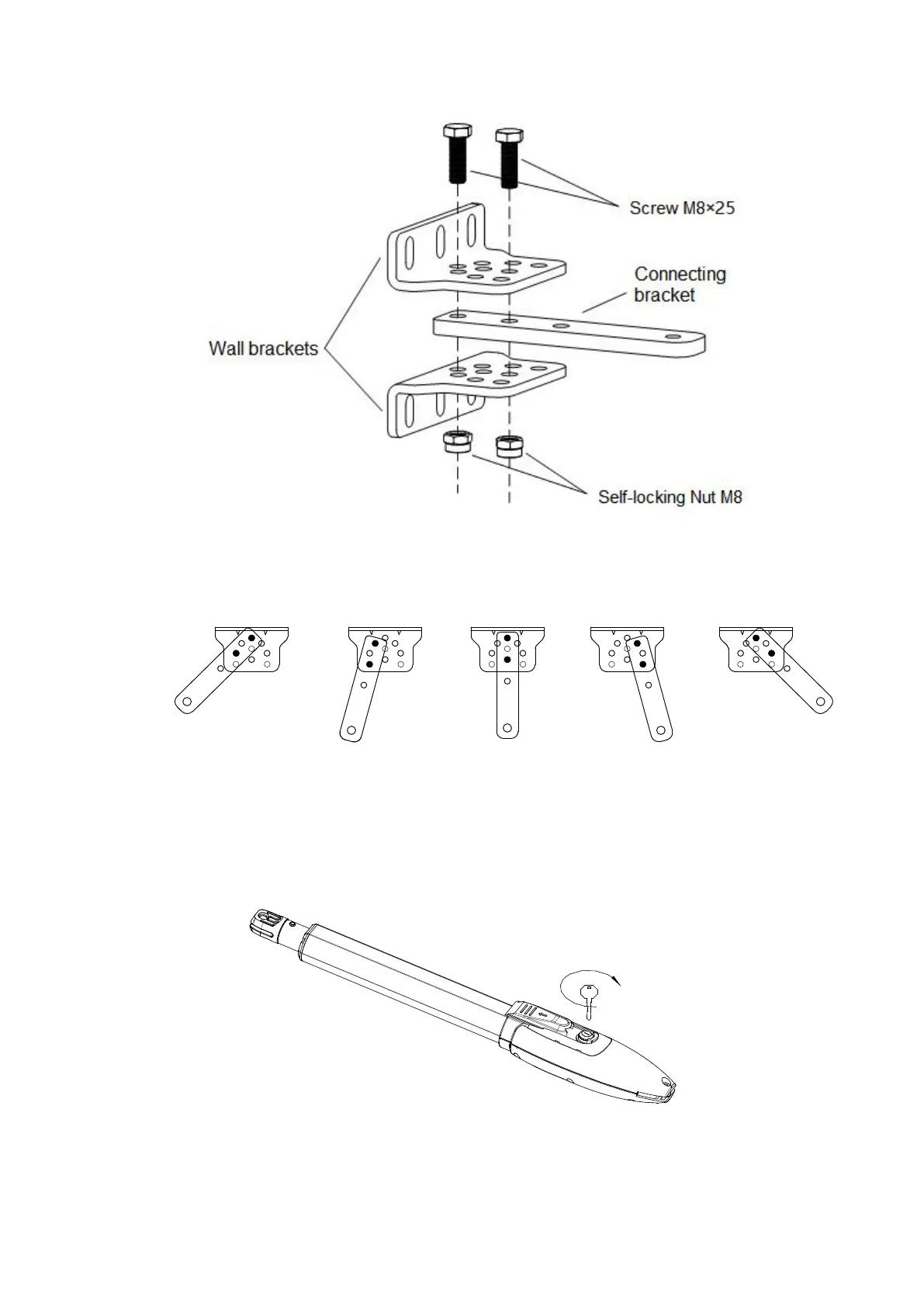

B) The connecting bracket and the wall bracket can be connected according to different conditions,
please refer to figure 5.
Figure 5
C) Before the installation, please unlock the two main machines. Unlock method: Open the manual
release cover, insert the manual release key, rotate the key until it’s released, as shown in Figure 6,
then turn the telescopic arm, you’ll find it’s stretched by hand easily.
Figure 6
D)
Connect the main machine with connecting brackets by screw and nut as shown in Figure 7.
