JP-33 SERVICE MANUAL
Technical Support Location of Components

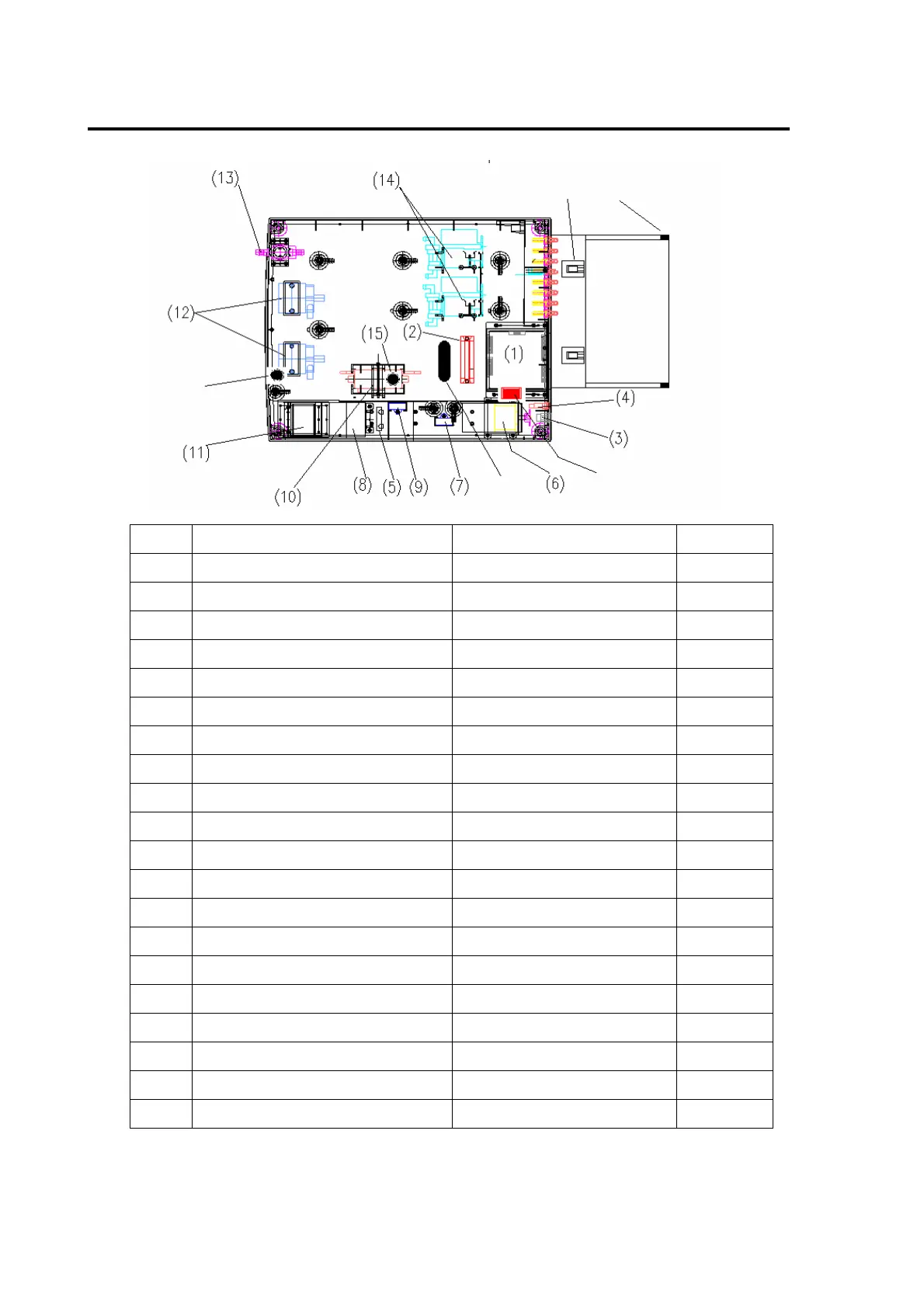

1. Location of Electrical Components
(18) (20)
(16)
(17) (19)
No Part Name Part No. Quantity
1 Main PCB Assembly F63-23001 1
2 Terminal Block F63-21016 1
3 Main Switch F63-21013 1
4 Fuse F63-21015 2
5 SSR for Dry Heater (:110volt only) F63-21018 1
6 Main Motor F63-21001 1
7 Condenser for Main Motor F63-21001 con 1
8 Blower Fan Motor F63-21002 1
9 Condenser for Blower F63-21003 1
10 DEV Heater F63-21006 1
11 Dry Heater ( located on upper side) F63-21012 1
12 Circulation Pump F63-21009 2
13 Solenoid Valve for Water F63-21010 12
14 RPL Pump F63-21005 2
15 Thermostat of DEV Heater Outer F63-21022 1
16 Level Sensor for Wash F63-00012 1
17 Temperature Sensor of DEV F63-00010 1
18 Film Sensor (inside Feed-Tray) F63-00013 2
19 Limit Switch for Film Sensor F63-00008 1
20 Pilot Indicator of Film Loading F63-00014 2
- -
44
