JP-33 SERVICE MANUAL
Technical Support Location of Components

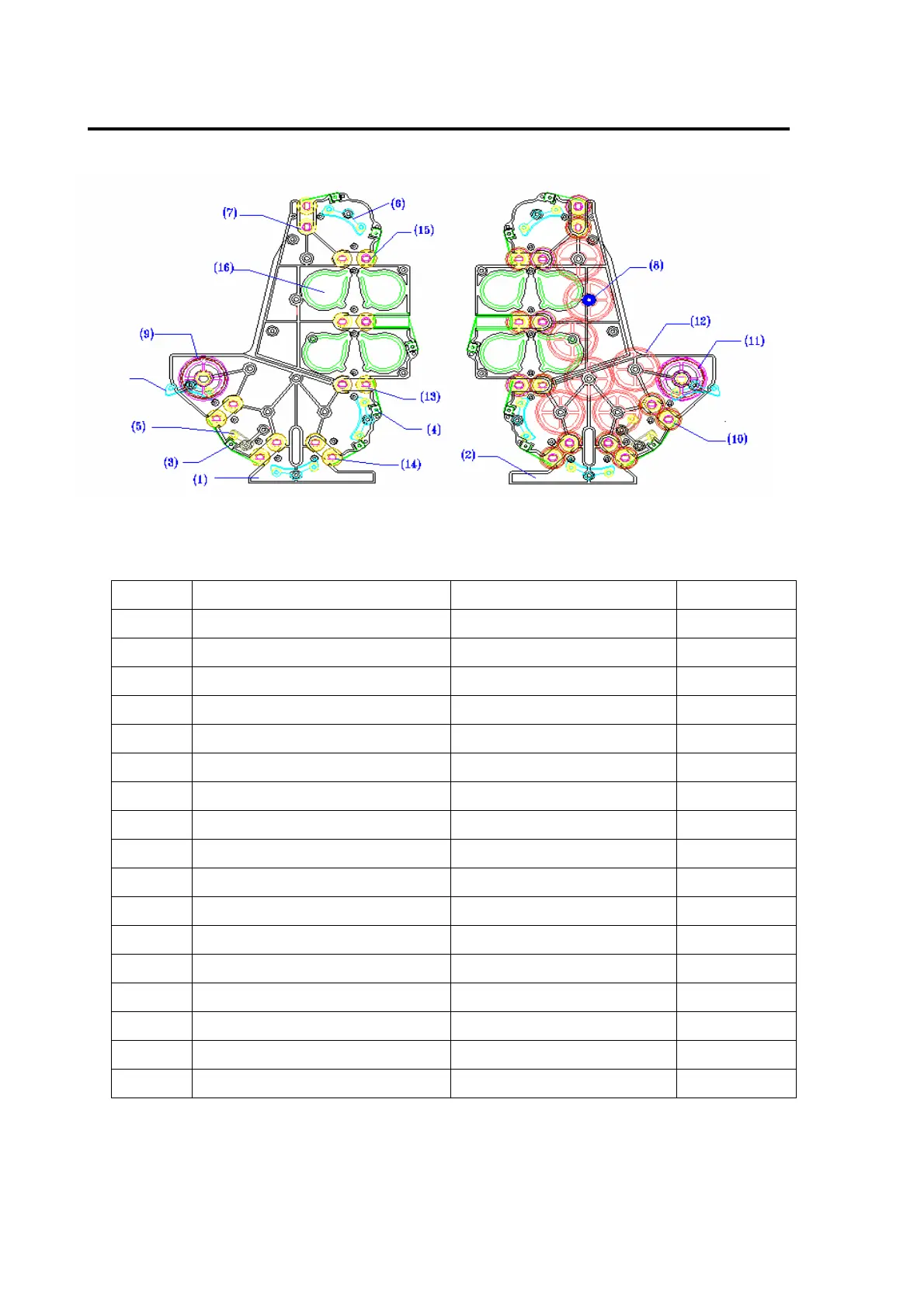

4. Location of Washer, Dryer Rack Components
(17)
Right Side View Left Side View
No Part Name Part No. Quantity
1 Wash rack side plate R F63-11029B 1
2 Wash rack side plate L F63-11029A 1
3 Spring A & C (Large type) F63-13004A & B 2
4 Spring B & D (Small type) F63-13005A & B 10
5 Film Guide B Small F63-11021 1
6 Film Guide A Large F63-11020 3
7 Roller Bushing F63-11026 33
8 Snap Ring Type “E” F63-14002 25
9 Gear Worm Wheel F63-11025 1
10 Gear A 0.8” D-cut F63-11022 14
11 Gear C 1.5” D-cut F63-11024 1
12 Gear B 1.5” Idle F63-11023 7
13 Roller Rubber F63-13001 8
14 Roller PVC F63-13002 4
15 Roller Phenol F63-13003 2
16 Air Pipe for Dryer F63-13019 4
17 Film Guide of Crossover F63-11031 1
- -
47
