JP-33 SERVICE MANUAL
Technical Support Location of Components

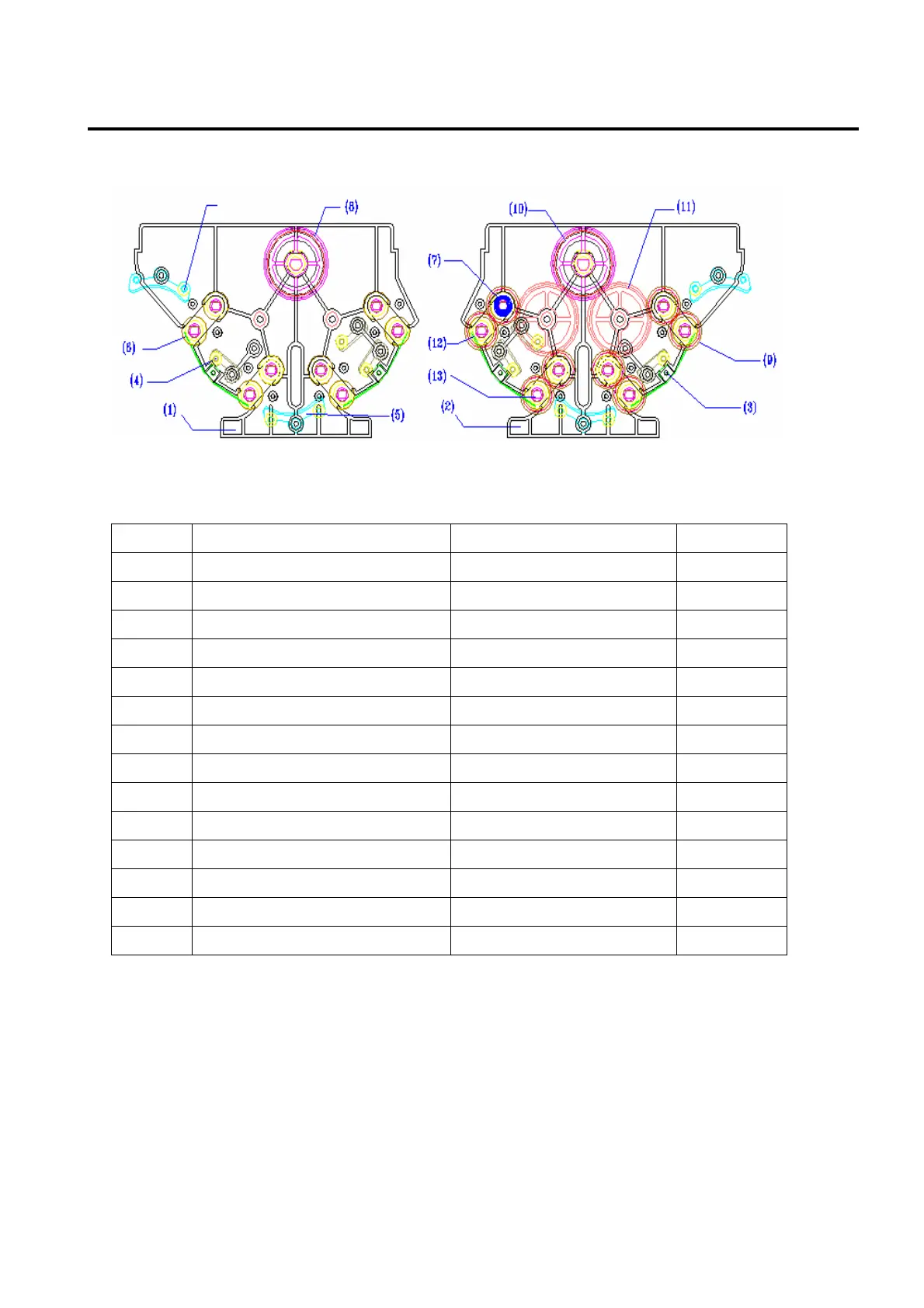

3. Location of Fixer Rack Components
(14)
Right Side View Left Side View
No Part Name Part No. Quantity
1 FIX rack side plate R F63-11028B 1
2 FIX rack side plate L F63-11028A 1
3 Spring A & C (Large type) F63-13004A & B 4
4 Film Guide B Small F63-11021 3
5 Film Guide A Large F63-11020 1
6 Roller Bushing F63-11026 21
7 Snap Ring Type “E” F63-14002 15
8 Gear Worm Wheel F63-11025 1
9 Gear A 0.8” D-cut F63-11022 8
10 Gear C 1.5” D-cut F63-11024 1
11 Gear B 1.5” Idle F63-11023 2
12 Roller Rubber F63-13001 5
13 Roller PVC F63-13002 3
14 Film Guide of Crossover F63-11031 1
- -
46
