JP-33 SERVICE MANUAL
Technical Support - Trouble Shooting
Troubleshooting general problems
1-1. Problem
Cannot insert film, or unit does not activate when film is inserted.

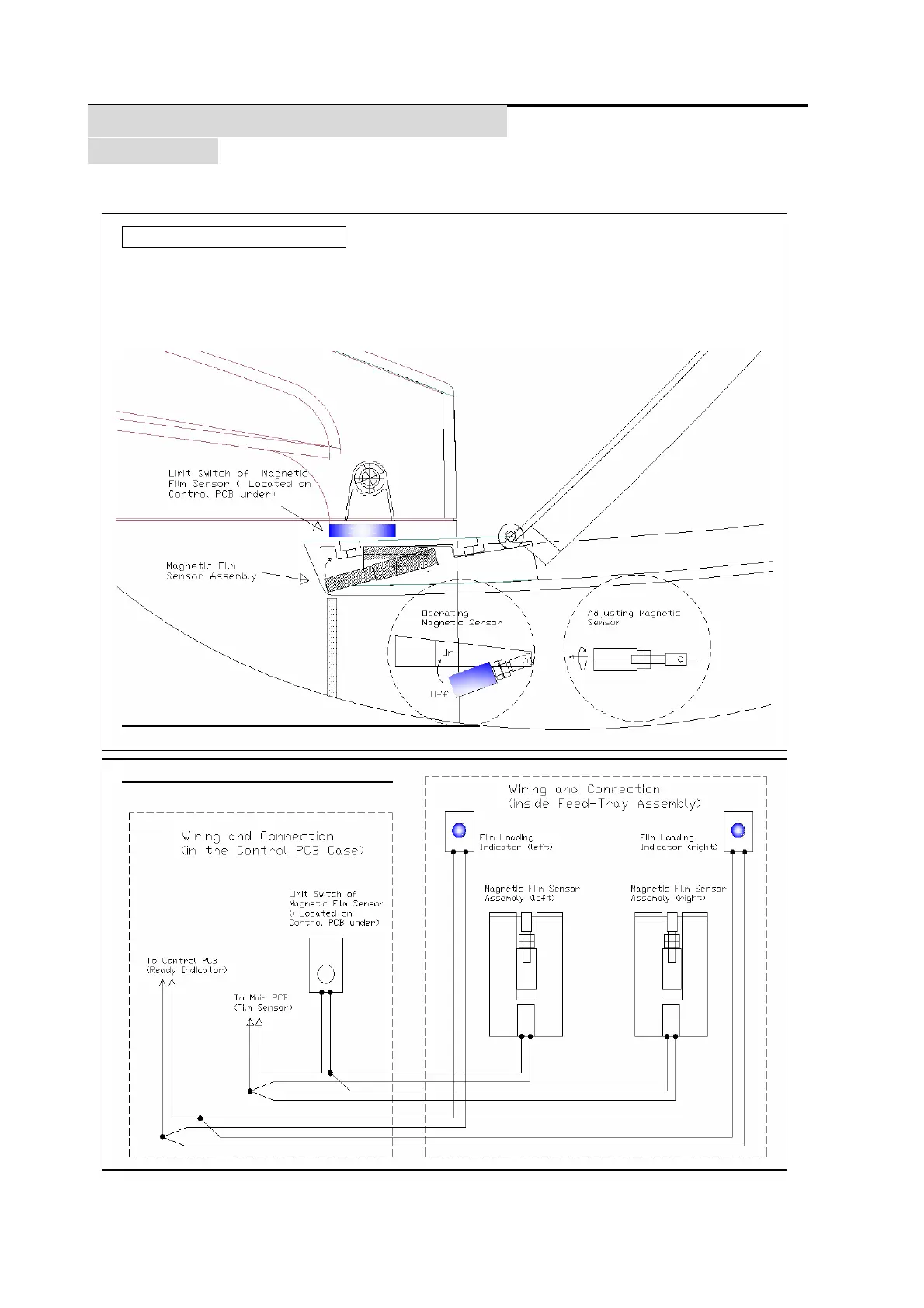

Check Film Sensor manually.
Film Sensor is located inside the Feed Tray.
: It can easily be seen and accessed when feed tray cover is opened.
Check the operation of the sensor by a dummy film inserting.
: If the magnetic sensor is not working properly because of obstructions, sensor bar can
not sensing (: up) or recovering position (: down).
You can repair a obstruction by sensor adjusting.
You check wiring by bellow diagram.
- -
16
