ON
To enter System Setup mode,
press both programming
levers up and turn on the
Power switch.
Power Switch
Programming Levers
RST
I
ON
To enter Function mode,
turn on the Power switch
and then press both
programming levers up.
Power Switch
THR
-
REV•NORM
18
XF631 MANUAL • CHAPTER 5: Input Mode and Functions
To enter the Function mode, turn on the transmitter. Press the Scroll
and Increase buttons up simultaneously until a beep is heard. The
display will change accordingly and show the last active function.
Press the Scroll button up to scroll down through the functions one by
one as shown in the flowchart at left. Once the appropriate function is
selected, use the Channel button to select the appropriate channel.
Use the Increase and Decrease buttons to adjust the values displayed on
the screen.
CHAPTER 5: Input Mode and Functions continued
FUNCTION MODE5.6
THR
-
REV•NORM
SERVO REVERSING
Page 24
SUB-TRIM
Page 26
TRAVEL ADJUSTMENT
Page 27
DUAL RATES
Page 25
0
THR
SB-TRIM
+I00
%
THR
TRV ADJ
+I00
%
AI0

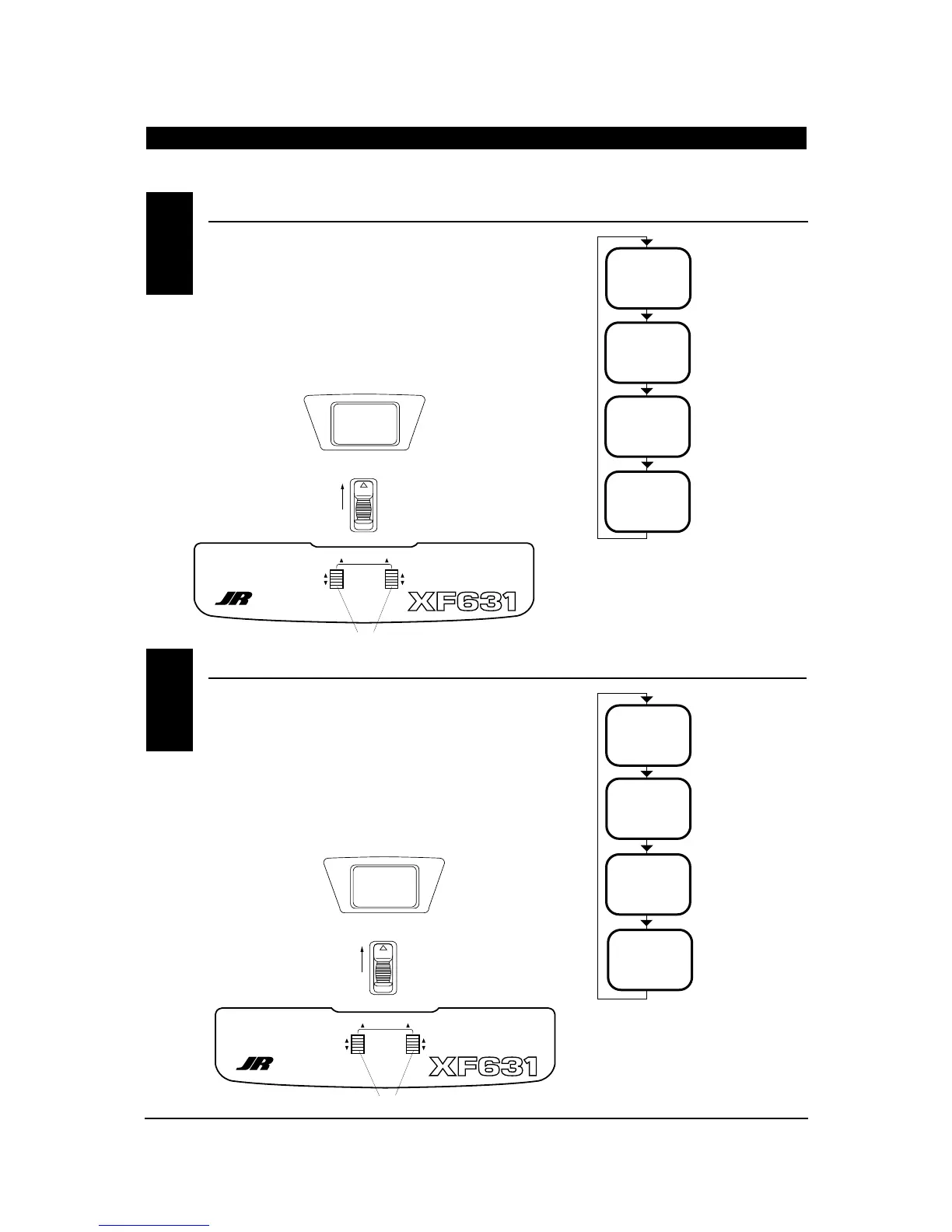

To enter the System mode, press the Scroll and Increase buttons up
simultaneously while you turn on the transmitter. You can now select
any of four system mode functions shown here in the flow chart. To
exit the System mode, press the Scroll and Increase buttons
simultaneously or turn off the transmitter. Press up the Scroll button
to move through the System mode functions. Information for each
function is located on the page number listed next to the
function name.
SYSTEM MODE5.5
MODEL NAME ENTRY
Page 22
WING TYPE
SELECTION
FPR FLAPERON
DELTA
V-TAIL
Page 2021
RST
DATA RESET
Page 18
MODEL SELECTION
Page 19
I
MDL
OF
WNG
MIX
I
I
MDI
MIX
CHANNEL
SCROLL
INCREASE
DECREASE
ENTER
DIGITAL TRIM EQUIPPED 6 CHANNEL
MULTI-DATA COMPUTER DISPLAY SYSTEM
CHANNEL
SCROLL
INCREASE
DECREASE
ENTER
DIGITAL TRIM EQUIPPED 6 CHANNEL
MULTI-DATA COMPUTER DISPLAY SYSTEM
Programming Levers
D/R
