Section 17 Adjusting and Setting up Equipment (for Services) 17-8
17.3 Verifying Installation and Initial
Setting
Use the [Installation] dialog box to verify the installation of this equipment and perform initial setting.
17.3.1 Displaying the [Installation] dialog box
Clicking on the [Installation] in the submenu, the [Installation] dialog box appears.

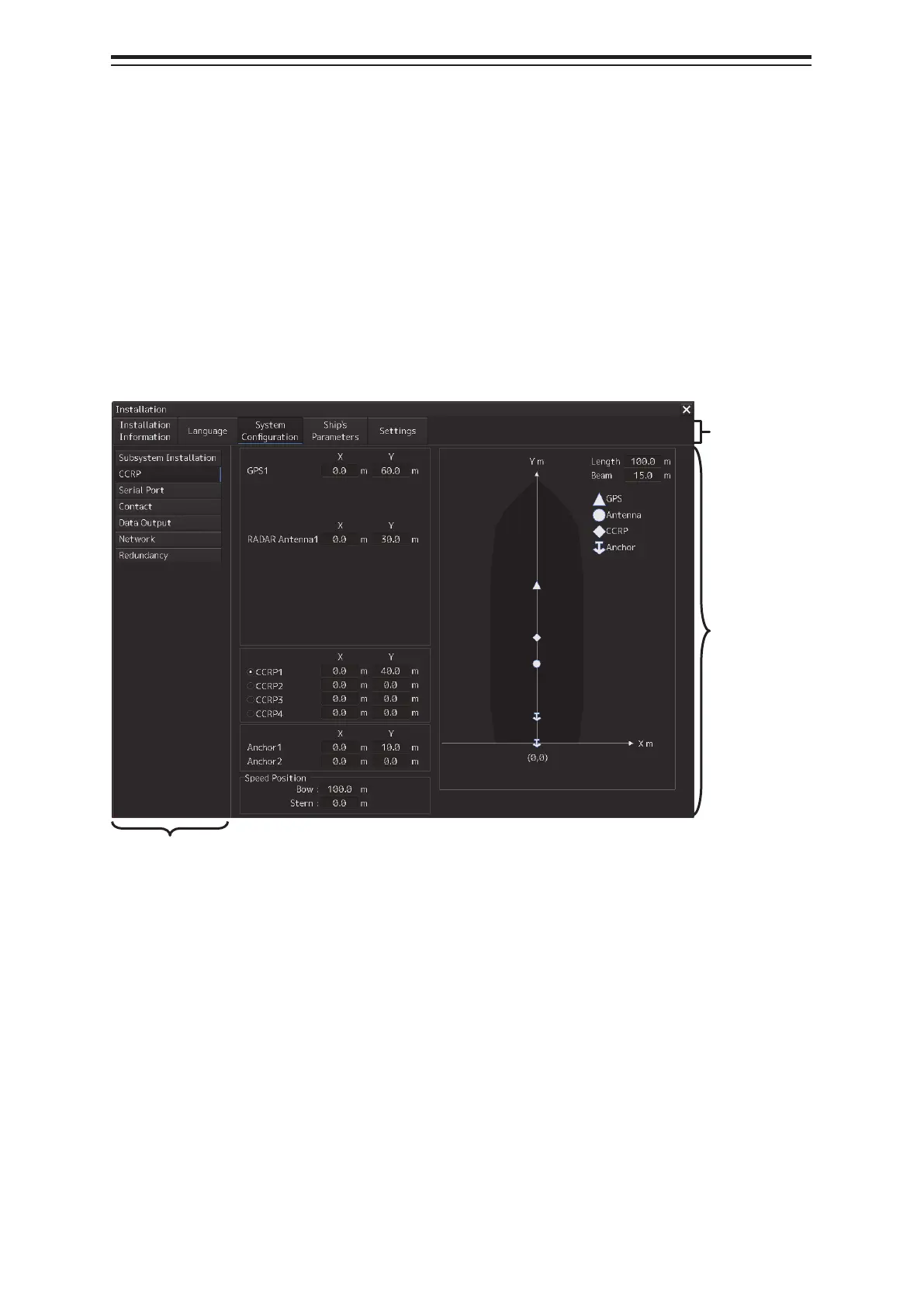

The [Installation] dialog box consists of the classification pane and the edit/result pane. The
classification pane consists of two-level layers of the first classification pane and the second
classification pane.
1 Click the item you want to set up in the classification pane.
The setup dialog of the item you selected is displayed in the edit/result pane.
2 Set up in the edit/result pane or check the setup result.
Edit/Result pane
First classification
pane
Second classification pane
