17.3.10 Setting the Route Plan Exchange
You can switch the enable / disable of route plan exchange and make various settings.
17.3.10.1 Displaying the [Route Plan Exchange] dialog

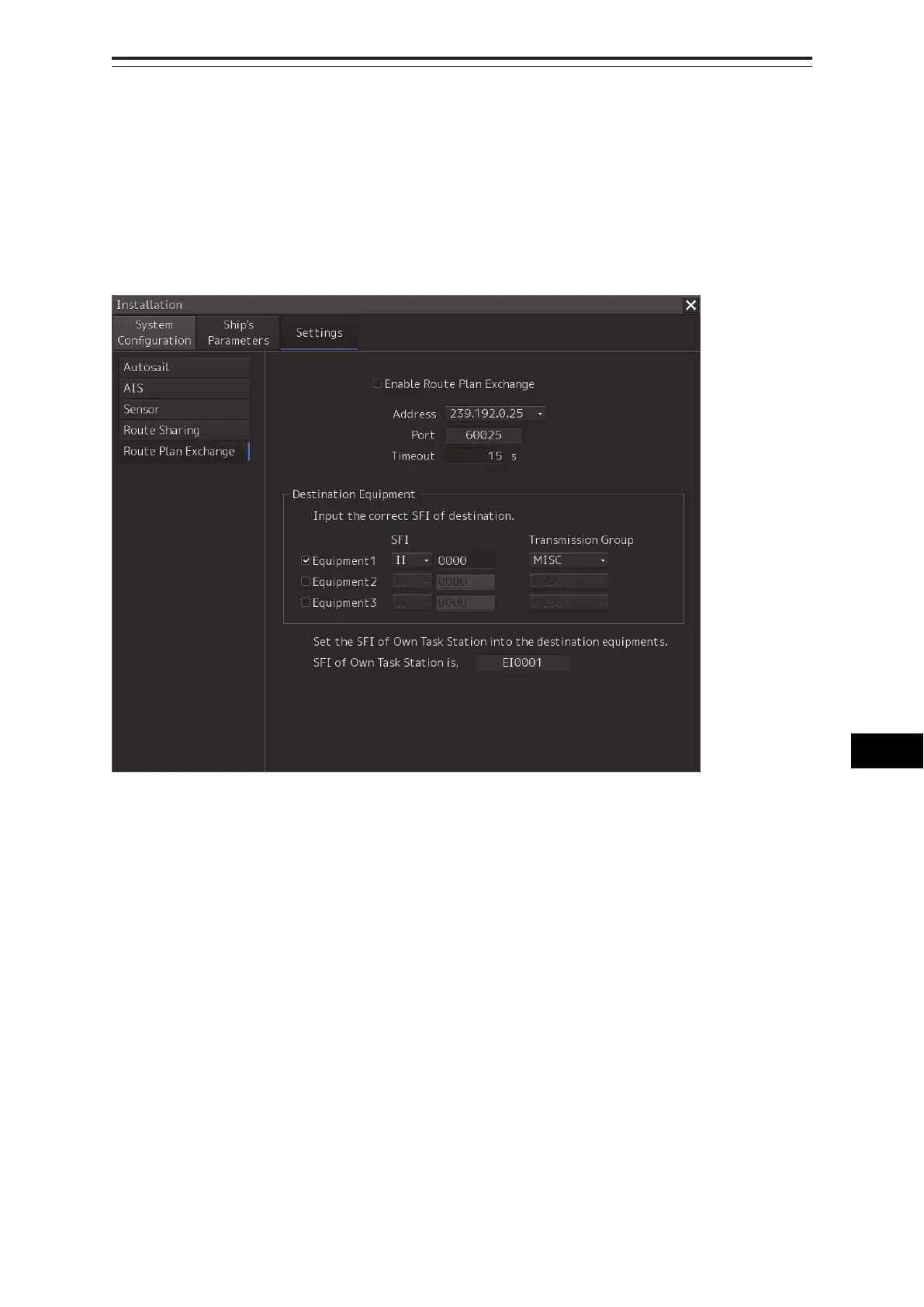

When [Settings] is selected in the 1st classification pane and [Route Plan Exchange] is selected in the
2nd classification pane, the [Route Plan Exchange] dialog is displayed in the edit/result pane.
17.3.10.2 Setting the Route Plan Exchange
When the Enable Route Plan Exchange check box is set to On, the route plan exchange function is
enabled.
In the Address combo box, you can select the multicast address to be used for route plan exchanges
from the following five.
・239.192.0.21 ・239.192.0.22 ・239.192.0.23 ・239.192.0.24 ・239.192.0.25
In the Timeout input box, you can set the response waiting timeout judgment value in the route plan
exchange.
In the SFI combo box, you can set two prefix characters that form SFI.
In the Transmission Groupe combo box, you can set the transmission group to be specified when
sending and receiving.
In SFI display box of Own Task Station, its own SFI is displayed.
