JRC JLR-30 User Manual

2-22

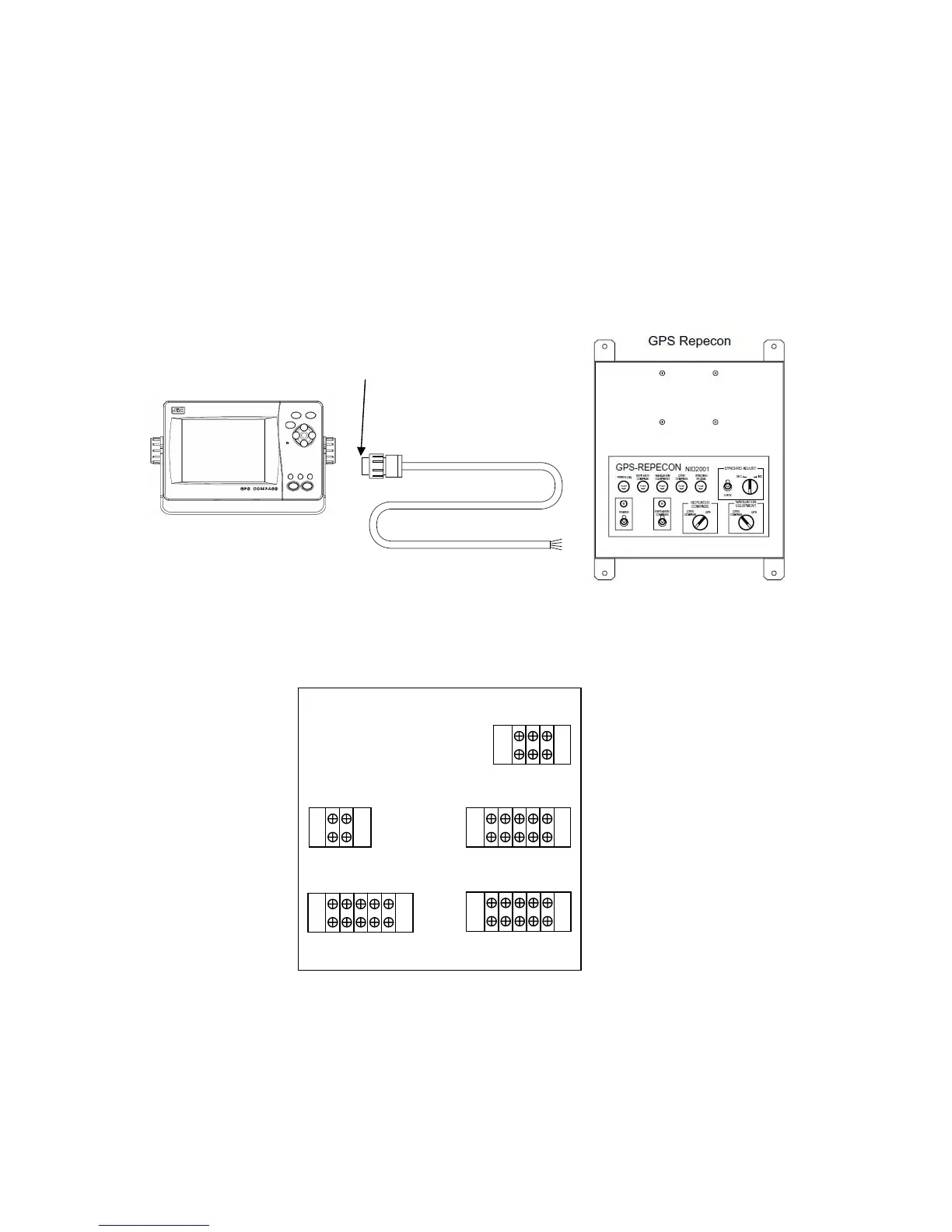

● GPS Repecon Connection
The "NQA-4115T GPS Repecon" option can be connected for repeater (90x) drive.
Use the CFQ-5374 option cable, and connect the DATA IN/OUT 1 or 2 connector to the GPS
Repecon.
The data output format is NSK (JRC radar format). (The display unit outputs "NMEA" data as
default)
Refer to the "NQA-4115T GPS Repecon" instruction manual for details.
c Connect the AC 100 V power supply to the AC 100 V R1, R2 connectors.
d Connect the terminal configured for NSK format output to the NSK RX+, RX- terminals.
e Connect the synchronization signal from the gyro compass to the synchronization signal
IN terminal.
f Supply signals from Repeater and Nautical Instrument terminals to each device.
e
CFQ-5374
Data Cable
NWZ-4700
Display Unit
AC100V
R1 R2
Repeater
R1 R2 S1 S2 S3
Nautical Instrument
R1 R2 S1 S2 S3
Gyro Signal IN
R1 R2 S1 S2 S3
NSK
RX+ RX- G
Connect to DATA IN/OUT 1
or 2 connector
NQA-4115T
