JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.1 INSTALLATION OF INTERSWITCH UNIT
5－1
5
5.1 INSTALLATION OF INTERSWITCH
UNIT
5.1.1 Equipment cable end processing
1)
Equipment cable end processing

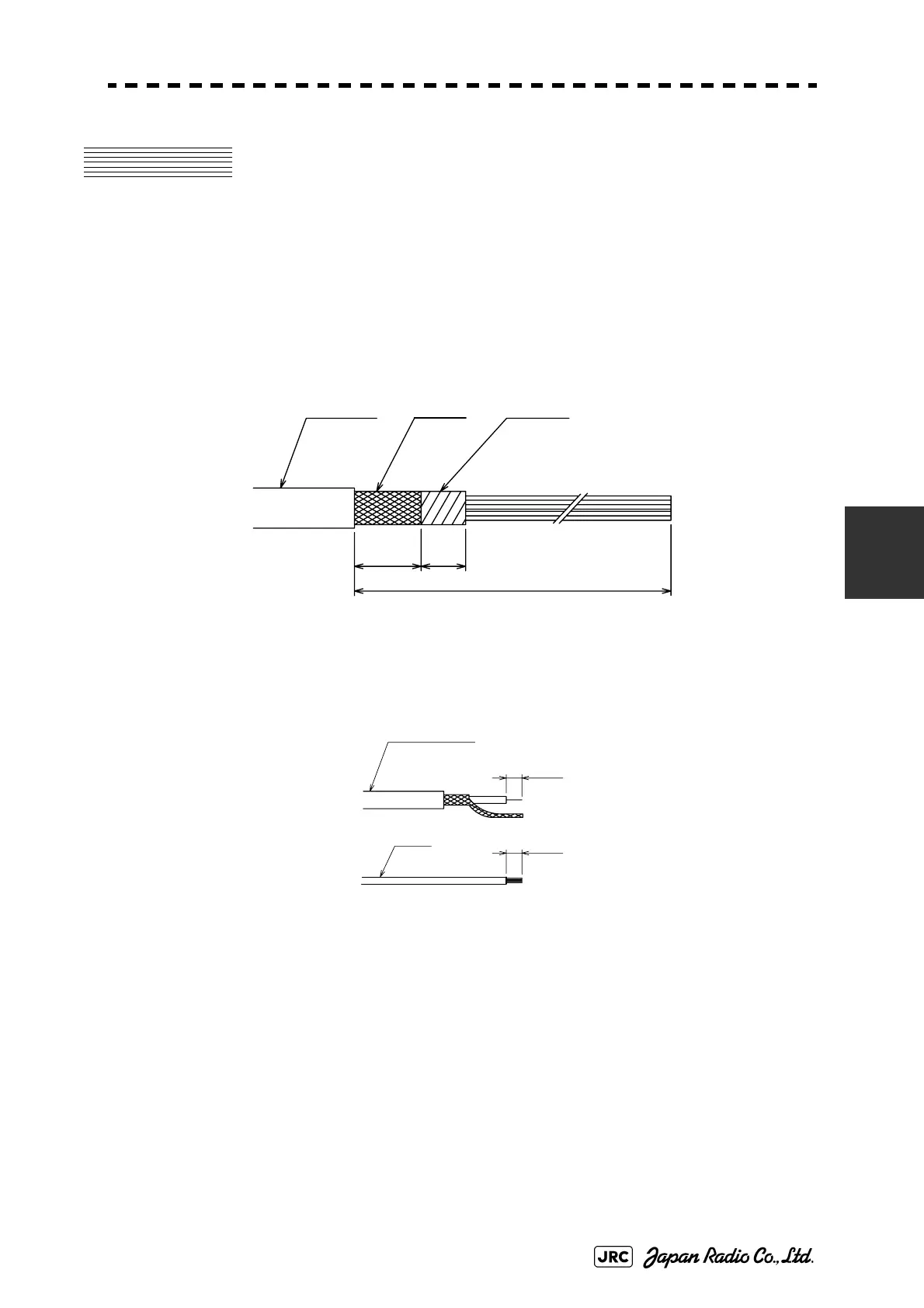

Fig 5-1: Equipment cable end processing
2)
End processing of each cable core
Fig 5-2: End processing of each cable core
Connection of equipment cable
1)
Remove the cable retainer.
2)
Connect each cable core to terminal board circuit TB4201 by referring to
Section 5.1.6Inter-board connection diagram. (For the method for
connecting the plug terminal block, see Section 5.1.2Plug terminal block
connection procedures)
3)
Securely mount the cable by using the cable retainer.
ShieldingEquipment
cable
Tape
30mm 20mm
280mm
Coaxial or Shield cable
Vinyl cable
6～7mm
6～7mm
To Next Page
