3.2.4 NCD-4990T
In the case of the desktop display unit NCD-4990T, NBA-5135 must be installed
outside the processing unit NDC-1399-9. The connection cable is 3 meters long.
NBA-5135 cannot be installed in a location which exceeds 3 meters from the
processing unit NDC-1399-9.
Install terminal block TB401 (No.6 and 8 in
Table3-1： NBA-5135 Packing List
)
inside the processing unit.

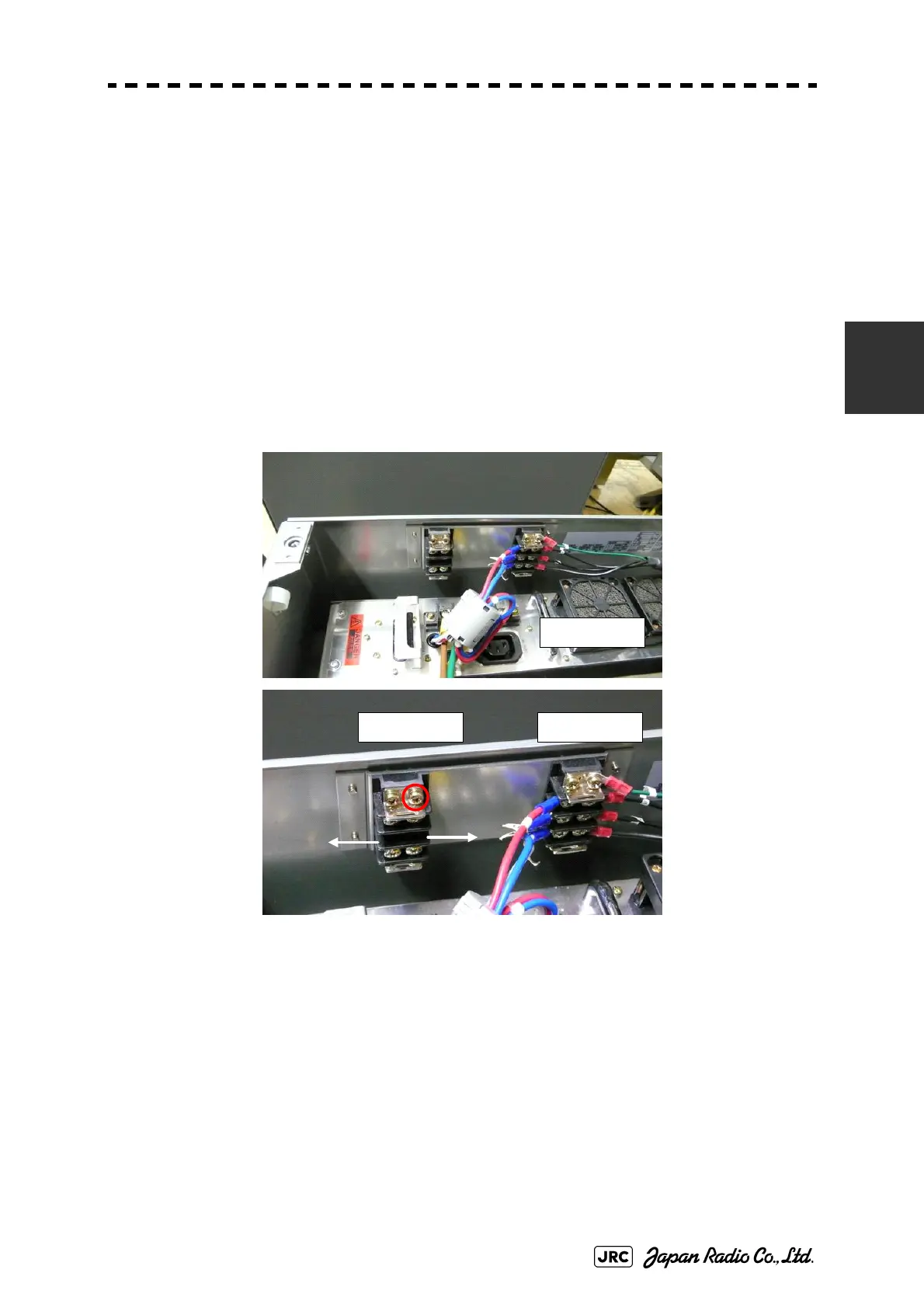

Fig 3-17: Installation position of TB401 and FG terminal
Install NBA-5135 at a proper location by using five hexagon bolts with a cross-
shaped hole. (No.2 and 9 in
Table3-1 ： NBA-5135 Packing List
)
W407 (No.4 in
Table3-1 ： NBA-5135 Packing List
) connects CBD-1661 to
TB521 of NBA-5135.
CBD-1661
TB402TB401
W408
NBA-5135
TO
SCANNER UNIT
FG
