JMA-9100/7100 Installation Manual > 2.INSTALLATION OF SCANNER UNIT > 2.4 PRECAUTIONS
2.4 PRECAUTIONS
2.4.1 Installation of scanner unit
1) Precautions for transporting and storing the scanner
• An scanner is a heavy load. Be very careful about handling it.
• Do not allow the scanner fall on its side while it is stored or being installed.
• Do not apply rope to the scanner in the way that squeezes or deforms the radiating
section.
• When hoisting the scanner by a crane, do not hoist it by attaching a belt or a rope only
to the scanner's radiating section as shown in Fig 2-11.
• For the S-band, attach a rope to the hoisting eyebolts attached to the scanner's chassis,
and then hoist the scanner (Fig 2-12). If a belt or a rope is attached to the scanner's
support section located at the bottom of the radiating section, a load is imposed to the
joint between the radiating section and the chassis.
• For the X-band, wrap a cloth around the scanner's support section located at the bottom
of the radiating section, and then attach a belt or rope to it to hoist the scanner (Fig 2-
13).

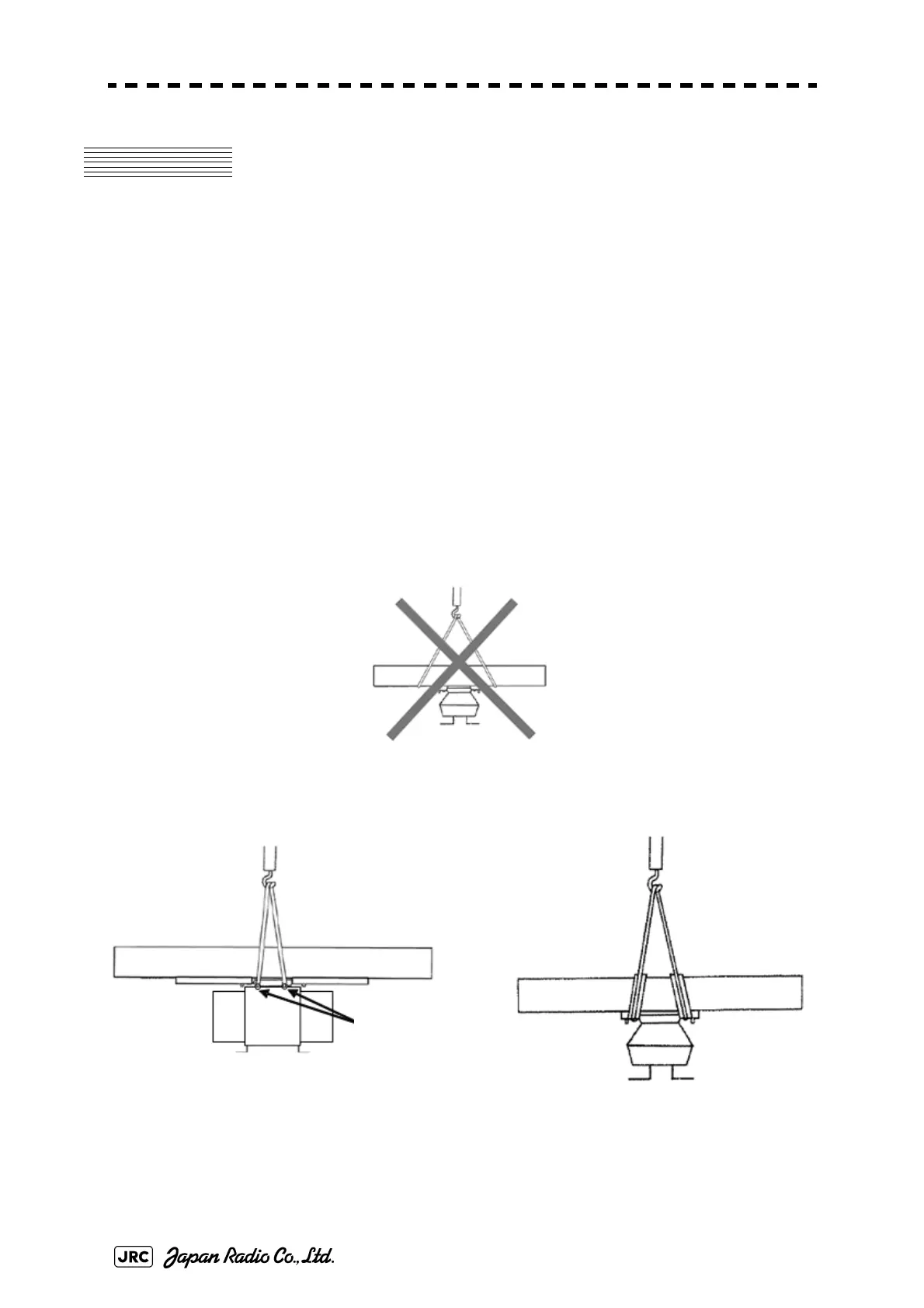

Fig 2-11: Improper way to hoist
Fig 2-12: S-band
Fig 2-13: X-band
Attach a rope to th
hoisting eyebolts
To Next Page
