JRC JMA-9133-SA - Installation of Sub-Operation Unit and Expansion of Trackball; Sub Operation Unit

5－64
JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.4 INSTALLATION OF SUB-OPERATION UNIT AND EXPANSION OF
TRACKBALL
5.4 INSTALLATION OF SUB-OPERATION
UNIT AND EXPANSION OF
TRACKBALL
5.4.1 Sub Operation Unit
With regard to JMA-7100 and JMA-9100 series radars, an operation unit can be
expanded as an option.
Connect the cable to J4312 of terminal board circuit CQD-2097 located in the
display unit (processing unit).

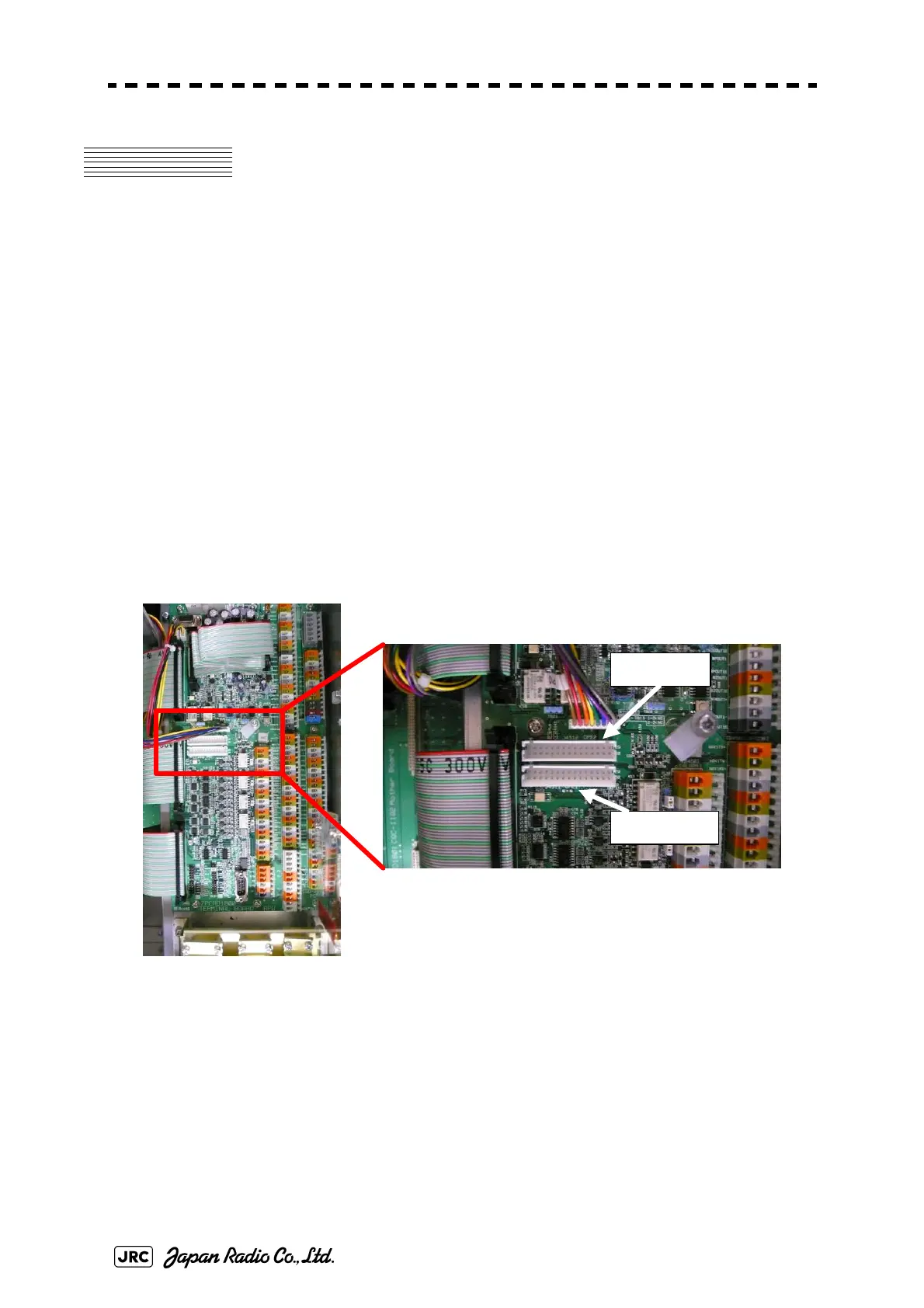

Fig 5-64: Sub-operation unit connection connector
MODEL: NCE-5163 (5-meter long cable)
J4312 SUB
J4311 MAIN
