JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.1 INSTALLATION OF INTERSWITCH UNIT
5－11
5

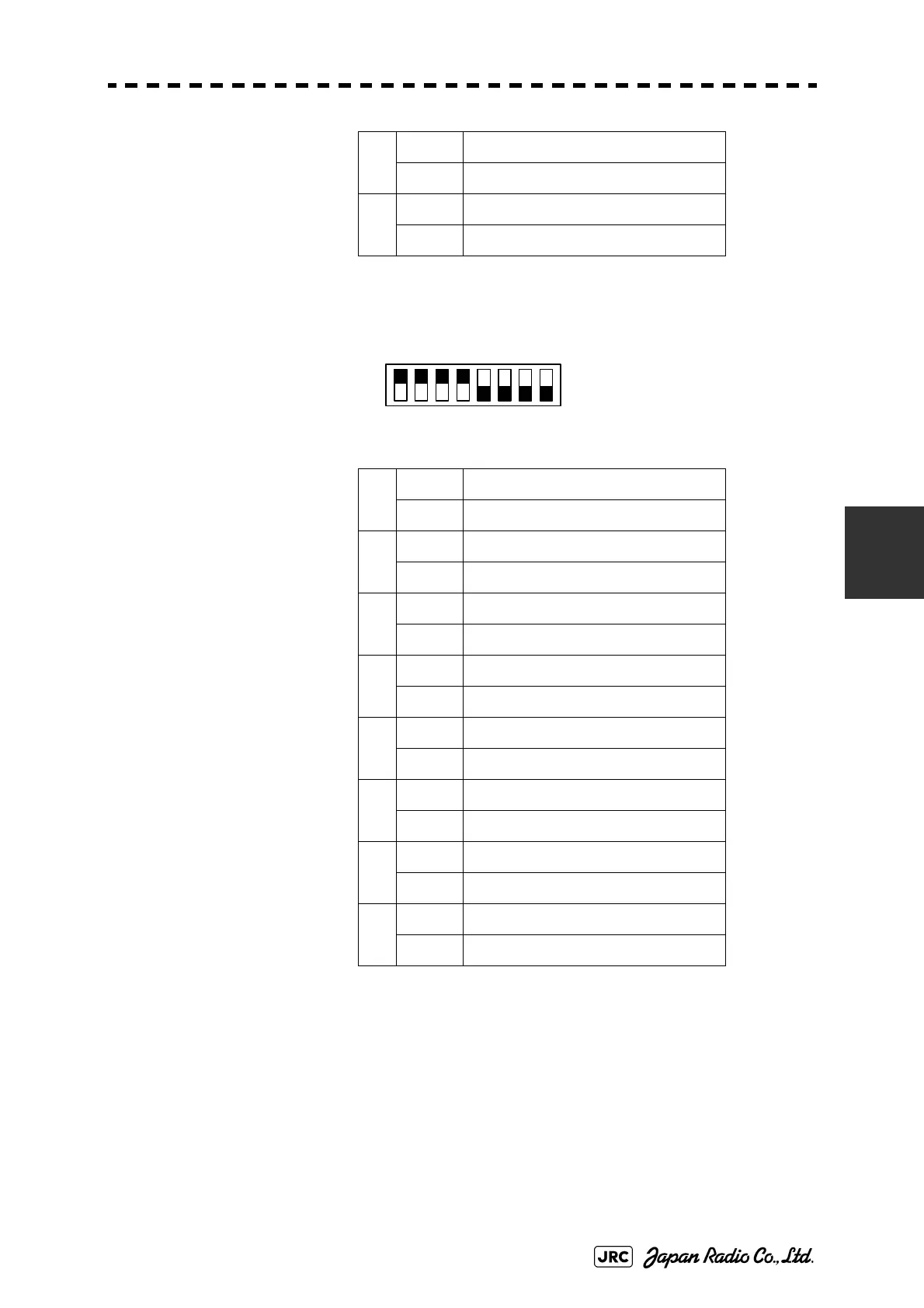

• Setting of lower CCL-304R, SW12 (radar connection setting)
Radar Connection Setting
5.1.5 Confirmation after installation
1)
After having checked connections, turn on the switchboard breaker.
2)
Turn on the power to the radar display unit, and make sure that the
interswitch button is displayed on the screen and pressing the button will
switch antennas.
7ON
No. 4 display unit connected
OFF
No. 4 display unit NOT connected
8ON
No. 4 antenna connected
OFF
No. 4 antenna NOT connected
1ON
No. 5 display unit connected
OFF
No. 5 display unit NOT connected
2ON
No. 5 antenna connected
OFF
No. 5 antenna NOT connected
3ON
No. 6 display unit connected
OFF
No. 6 display unit NOT connected
4ON
No. 6 antenna connected
OFF
No. 6 antenna NOT connected
5ON
No. 7 display unit connected
OFF
No. 7 display unit NOT connected
6ON
No. 7 antenna connected
OFF
No. 7antenna NOT connected
7ON
No. 8 display unit connected
OFF
No. 8 display unit NOT connected
8ON
No. 8 antenna connected
OFF
No. 8 antenna NOT connected
1 234
ON
OFF
5768
To Next Page
