JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.2 INSTALLATION OF POWER CONTROL UNIT
5－51
5
Fig 5-50: JMA-9123-9XA (w/ NQE-3167) desktop
NOTE: ELIMINATING THE INTERFERENCE ON FREQUENCIES USED FOR MARINE COMMUNICATIONS AND
NAVIGATION DUE TO OPERATION OF THE RADAR.
ALL CABLES OF THE RADAR ARE TO BE RUN AWAY FROM THE CABLES OF RADIO EQUIPMENT.
(ex. RADIOTELEPHONE, COMMUNICATIONS RECEIVER and DIRECTION FINDER. etc..)
ESPECIALLY INTER-WIRING CABLES BETWEEN SCANNER UNIT AND DISPLAY UNIT OF THE RADAR
SHOULD NOT BE RUN PARALLEL WITH THE CABLES OF RADIO EQUIPMENT.
(X-BAND 25kW RADAR)

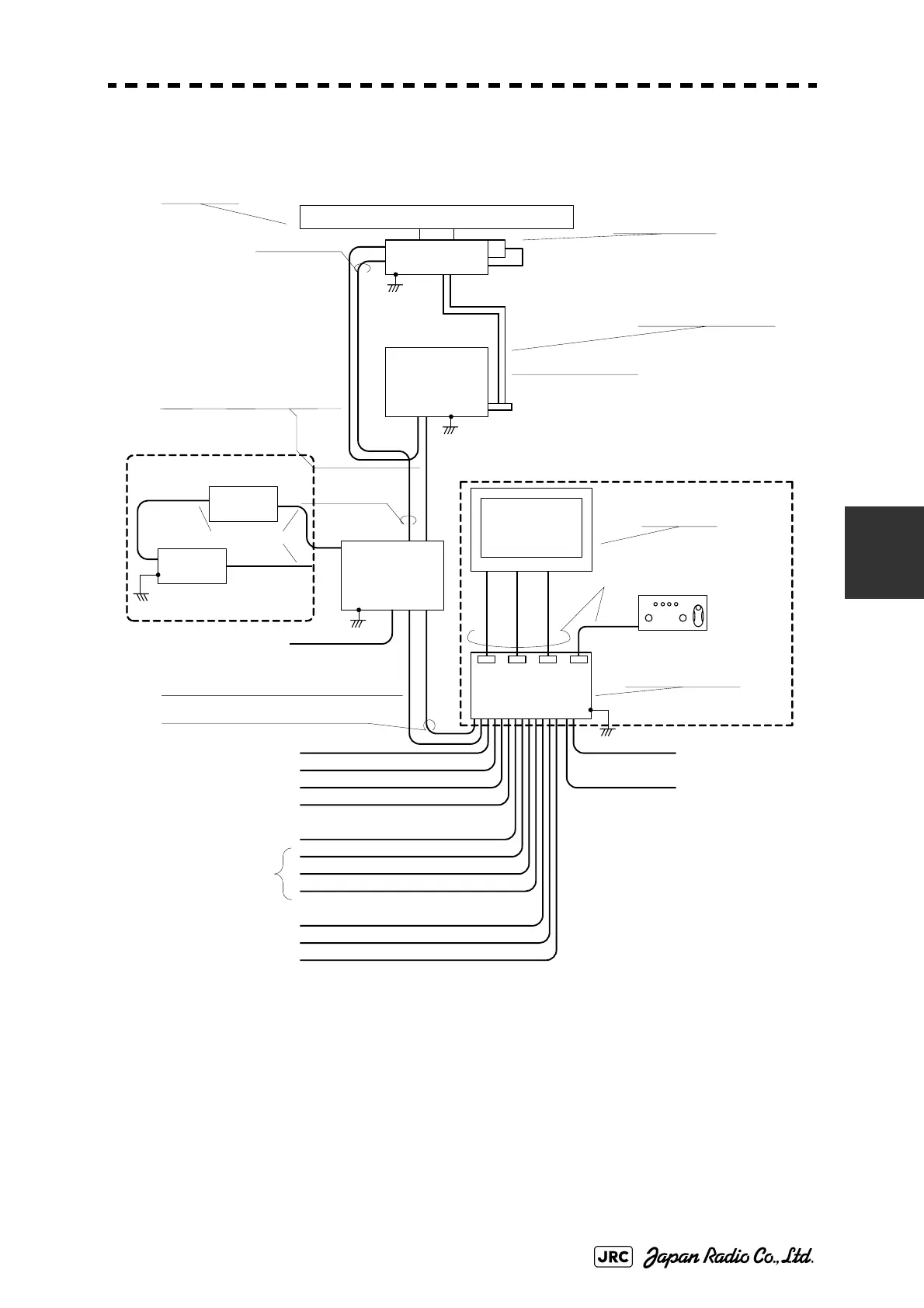

ＪＭＡ－９１２３－９ＸＡ形レーダー総合系統図
GENERAL SYSTEM DIAGRAM OF RADAR TYPE JMA -9123 -9XA
NJU-85
PERFORMANCE UNIT
250 V-MPYCYS -7
250 V-TTYCS-1
3C-2V x5 (MAX 30m)
250 V-TTYCS-1
18 CORES COMPOSITE CABLE
H-2695111153
MAX 18.0φ (JRC SUPPLY)
250 V-TTYCS-4
H-2695110006 (JRC SUPPLY )
H-7ZCNA0483 (JRC SUPPLY)
250 V-MPYC -4
250 V-TTYCS-4
250 V-TTYCS-4
GYRO
LOG
(NMEA 0183)
DGPS
VDR
RADAR
(I NTER SWI TCH)
ECDIS
(JAN-901M)
ALERM MONITORING SYSTEM
(NEAREST APPROACH)
(POWER FAIL)
CONNING DISPLAY
(JAN -701-CON)
AIS
0.6/1kV-DPYCY-6
0. 6/1 kV-DPYCYS-1 .5
SHIP’S MAIN
AC220 V,60Hz ,1 φ,800V A
SHIP’S MAIN
for POWER FAIL ALARM
DC24V(B ATTERY),1 W
(5A)
NBL-175
0.6/1kV-DPYCYS-1.5
SHIP’S MAIN
for HEATER
AC220V,60Hz,1φ
AC100V,60Hz
1φ,200 W
CIRCUIT BREAKER
(SHIP YARD SUPPLY)
0.6/1kV-DPYCYS-1.5
(WITH PM UNIT)
NKE-1129
SCANNER UNIT
STEPDOWN
TRANSFORMER
NTG-3225
TRANSCEIVER UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY)
FLEXIBLE WAVEGUIDE
FR-9 (JRC SUPPLY)
NDC-1399-9
RADAR PROCESS UNIT
NWZ-170
MONITOR UNIT
NCE-5163
OPERATION UNIT
H-7 ZCRD1338
Power & Contr ol C able
DVI CABLE
7ZCRD 134 6
CONTROL CABLE
7ZCRD 133 0A
POWER CABLE
5ZCGH00364
(JRC SUPPLY) max 5m
NCD-4990T DISPLAY UNIT
NQE-3167
POWER CONTROL
UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY)
400m MAX
COAXIAL CABLE for VIDEO
RG-10/UY (JRC SUPPLY)
400m MAX
0.6/1kV-DPYCYS-1.5
0.6/1kV-DPYCY -6
SHIP’S MAIN
AC220 V,60 Hz,1φ,400 VA
