5.5 ARPA DATA DISPLAY
..
...
An example of display is shown in Fig.5.1 and the definitions of symbols on the radar display in Table
5.2.

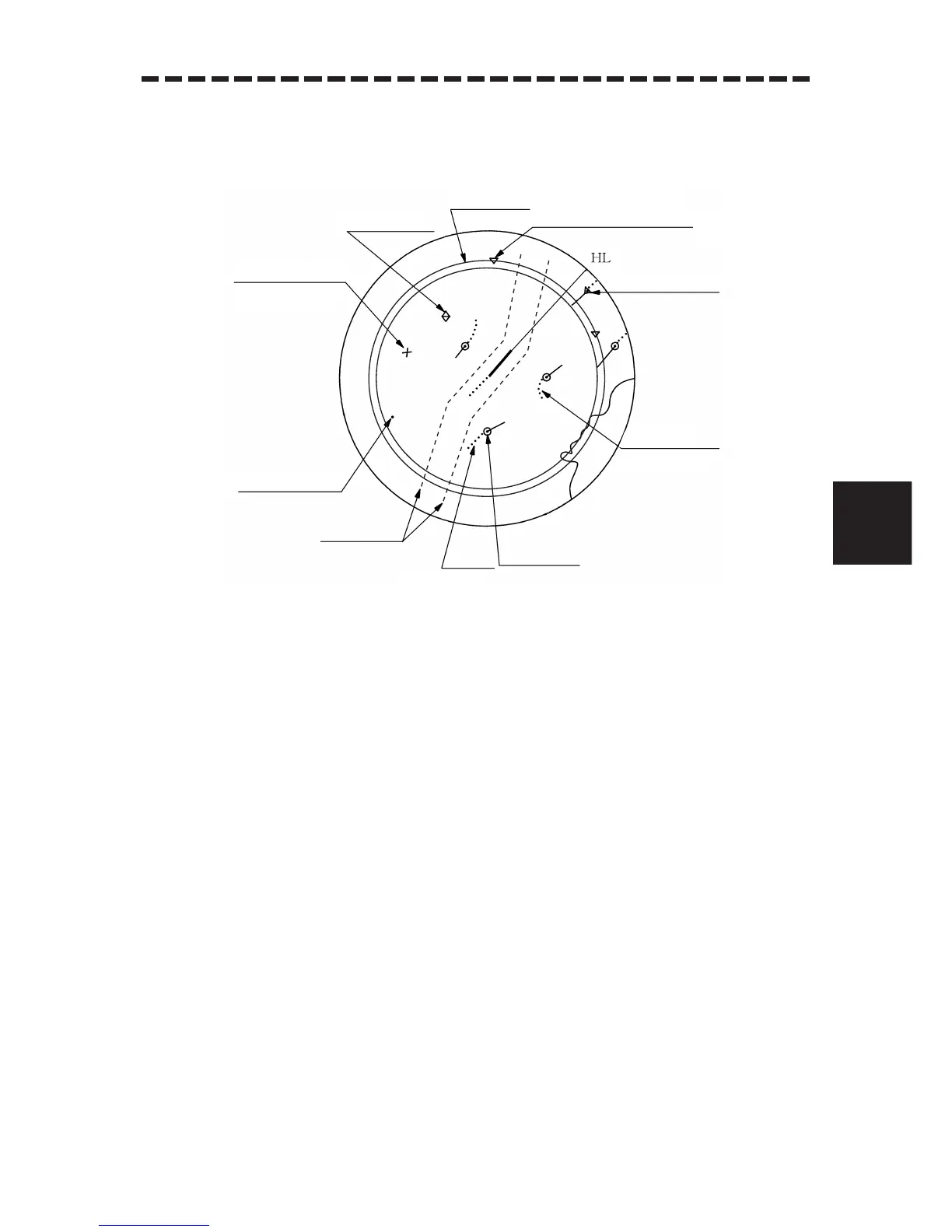

Fig.5.1 Example of Display (in North-up and True Vector mode)
In addition to the marks and symbols shown above, fixed/variable range markers, electronic bearing
lines, etc. are presented on an actual video.
Guard Zone
(Changed Course)
(Straight Course)
Safe Target
Past Positions
Dangerous Target
Target intruding
the Guard Zone
Lost Target
Trackball
(Cursor Mark)
Untracked Target
NAV Lines
Past
positions
204
206
