KE2000 Installation Manual
20
7. Board transport unit
7-1.Detachingthepackingmaterialsfromthetransportrail
Peel off the filament tapes fixing the rail M and rail F, and detach the air cap put at the center
of the transport rail.

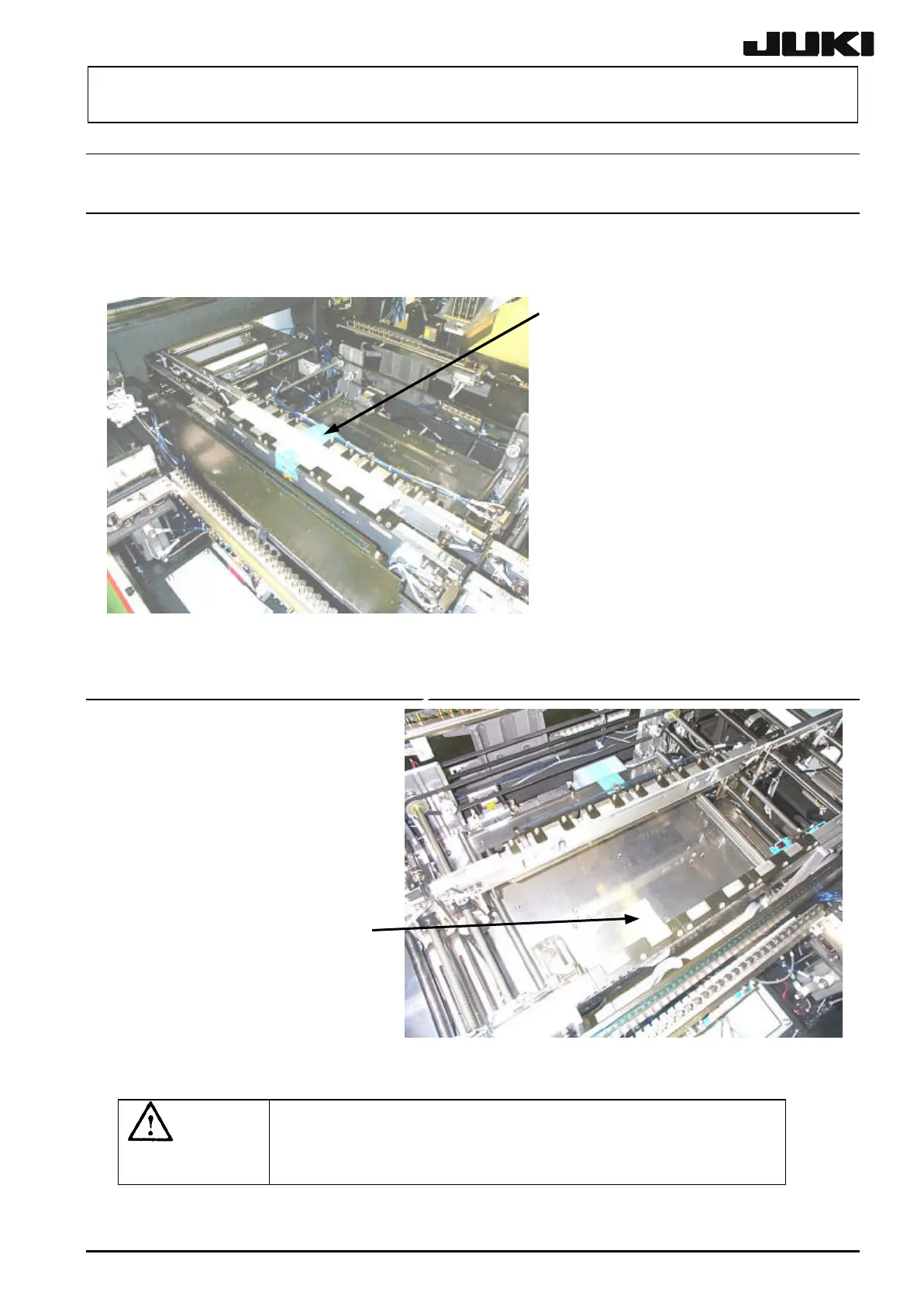

Fig ７−１−１
7-2.DetachingthepackingmaterialsfromtheBUtable
Fig ７−２−１
WARNING
To prevent the body from injury which can be caused by
accidental activation of the machine , cut off the power to the
machine before starting to work.
Filament tape
※ For only the model KE-2030,
the rail
is separated into four pieces, IN
buffer, IN center station, OUT center
station, and OUT buffer.
※
Keep the components from contact
with the sensors.
Peel off the filament tapes
the BU table.
※
Two BU tables are provided
only on the model KE-2030.
Filament tape
To Next Page
