KE2000 Installation Manual
23
8. ATC unit

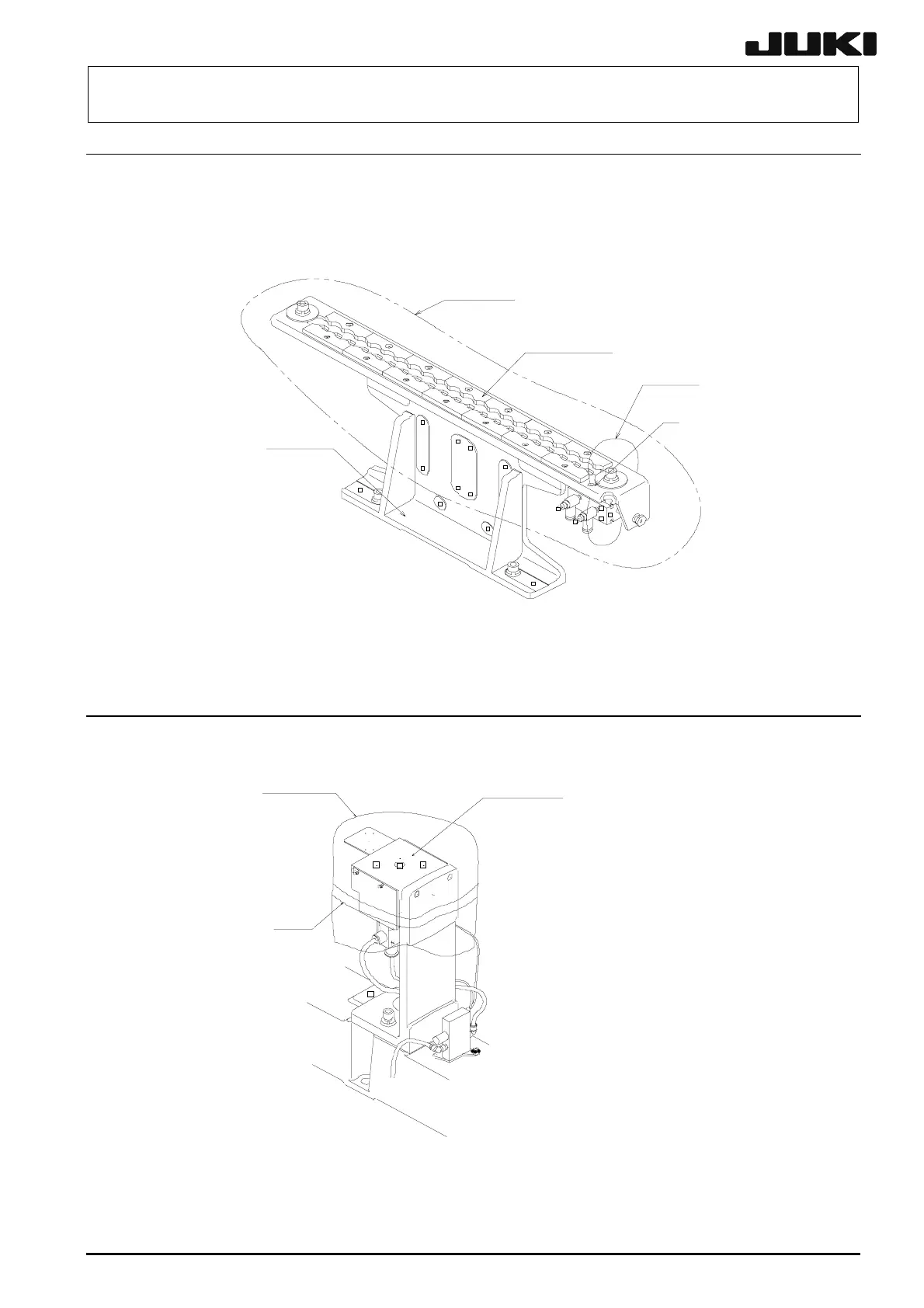

Detach the air cap from the ATC unit and the tie-up band fixing the ATC base and slide
plate.
9. CAL block
Detach the air cap from the upper portion of the CAL block.
Fig ８－１
Fig ９－１
A
ir ca
p
Slide
p
late
Tie-up band
Hole
A
TC base
Air cap
CAL block
Ta
p
e
