KE2000 Installation Manual
32

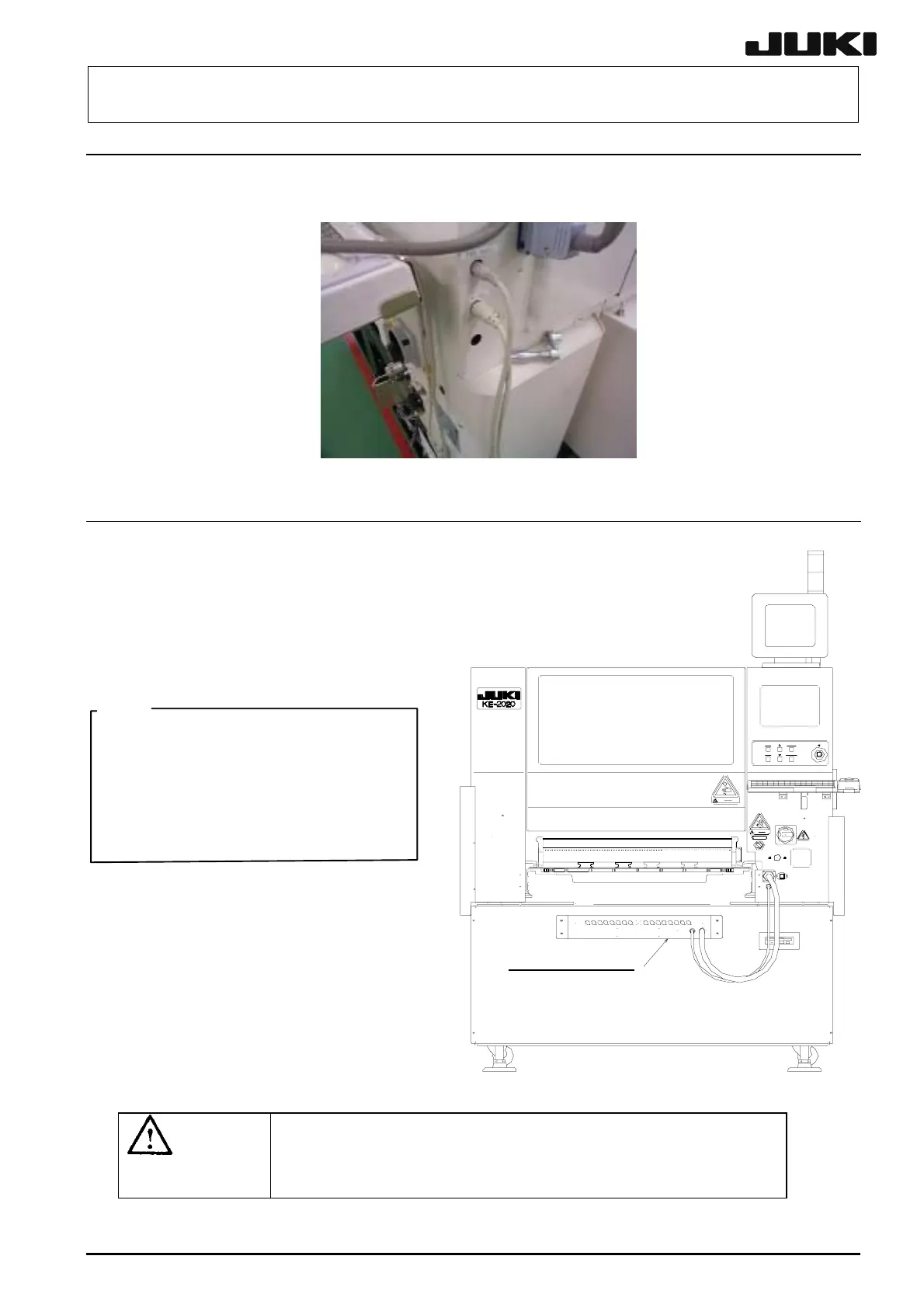

12-5. Hand knob
Place the hand knob on the groove (recessed part) on the top of the pulley cover on
the right side of the main unit.
12-6. Feed relay cable
Connect the feeder relay cable and
air tube coming from the connector
bracket to the connectors on the
main unit cover. (Perform this work
step on both the front and rear.)
<CAUTION>
When the machine is equipped with
the Overall feeder exchange trolley
(optional unit), the connector is
mounted on the Overall feeder
exchange trolley.
WARNING
WARNINGWARNING
WARNING
To prevent the body from injury which can be caused by
accidental activation of the machine , cut off the power to
the machine before starting to work.
Fig １２－５－１
図１２－６－１
Connector bracket
Fig
１２－６－１
To Next Page
