4-2. Replacing the CCD Camera and Lens
1) Detach the camera assembly from the head plate using the procedure described in section
4-1, Replacing the OCC Assembly.
2) Remove the bolts c and d securing the CCD camera and lens to replace the CCD camera
and lens.
3) Reassemble the components in the reverse order of disassembly.
(Apply Loctite 242 to the SEMS cap bolts c (×2), and then fix them with a tightening torque of
1.0N⋅m.)
4) After the CCD camera and lens have been replaced, adjust the focus and input the MS
parameters. (See 4-7, List of Readjustment Items After Replacement.)
OCC lens
SM6030602TN (×2)
CCD camera
c SL6041292TN
SEMS cap bolt with
washer M4×12
d SM6020302UZ
SEMS cap bolt
M2×3

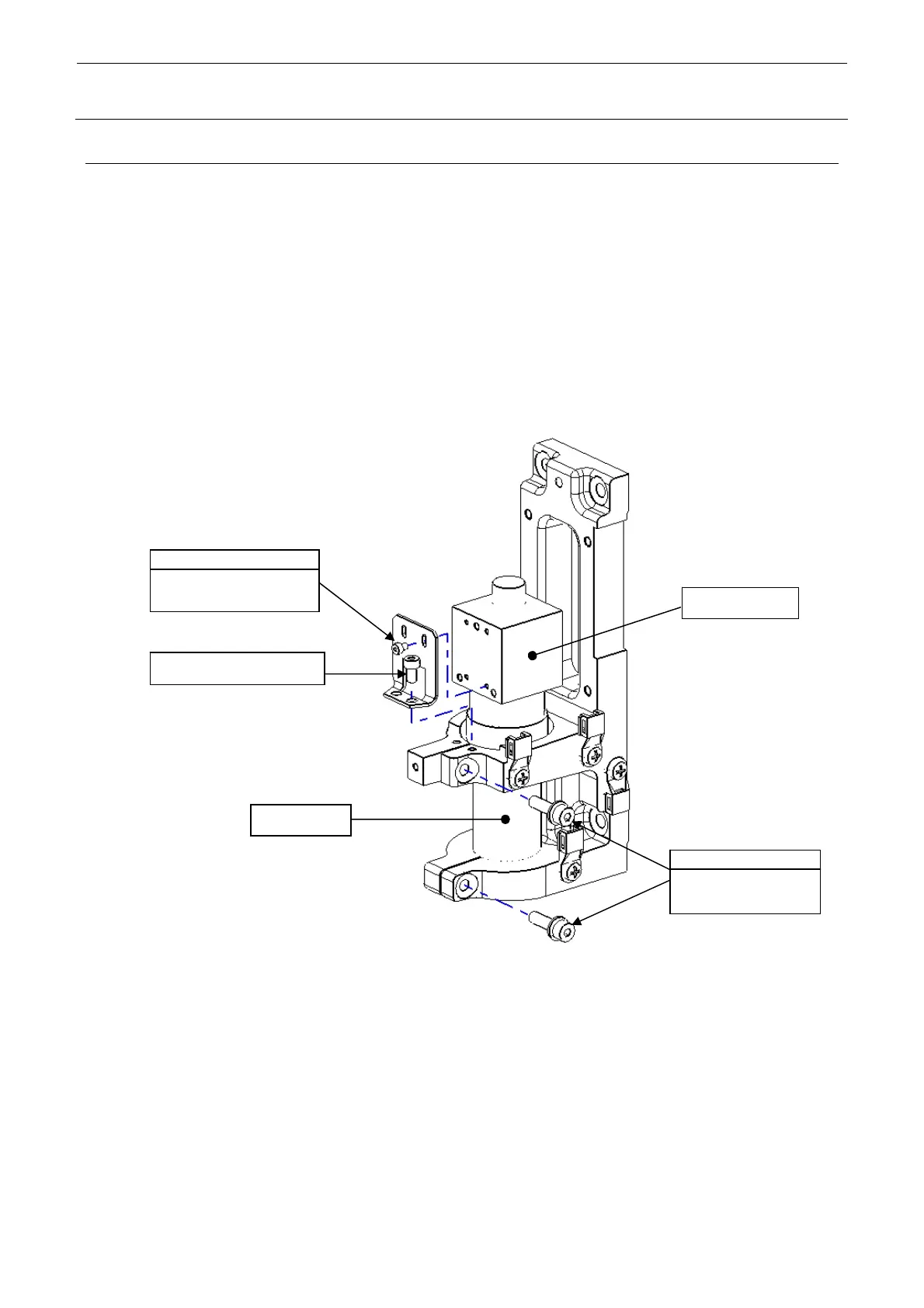

Figure 4-2-1 CCD Camera/Lens
