JUKI KE-3010 - Replacing the Transport Pulley; Transport Pulley a Assembly: E21117150 A0; Transport Pulley B Assembly: E20897210 A0

Rev. 2.0
Maintenance Guide
5-2
5-2. Replacing the Transport Pulley
Two kinds of transport pulleys are available. If the mounting position is changed or the pulley is
mounted incorrectly, this may cause incorrect pulley rotation or incorrect alignment of the
transport belt, resulting in wear on the belt.
Always refer to relevant mounting procedure when mounting the transport pulley.

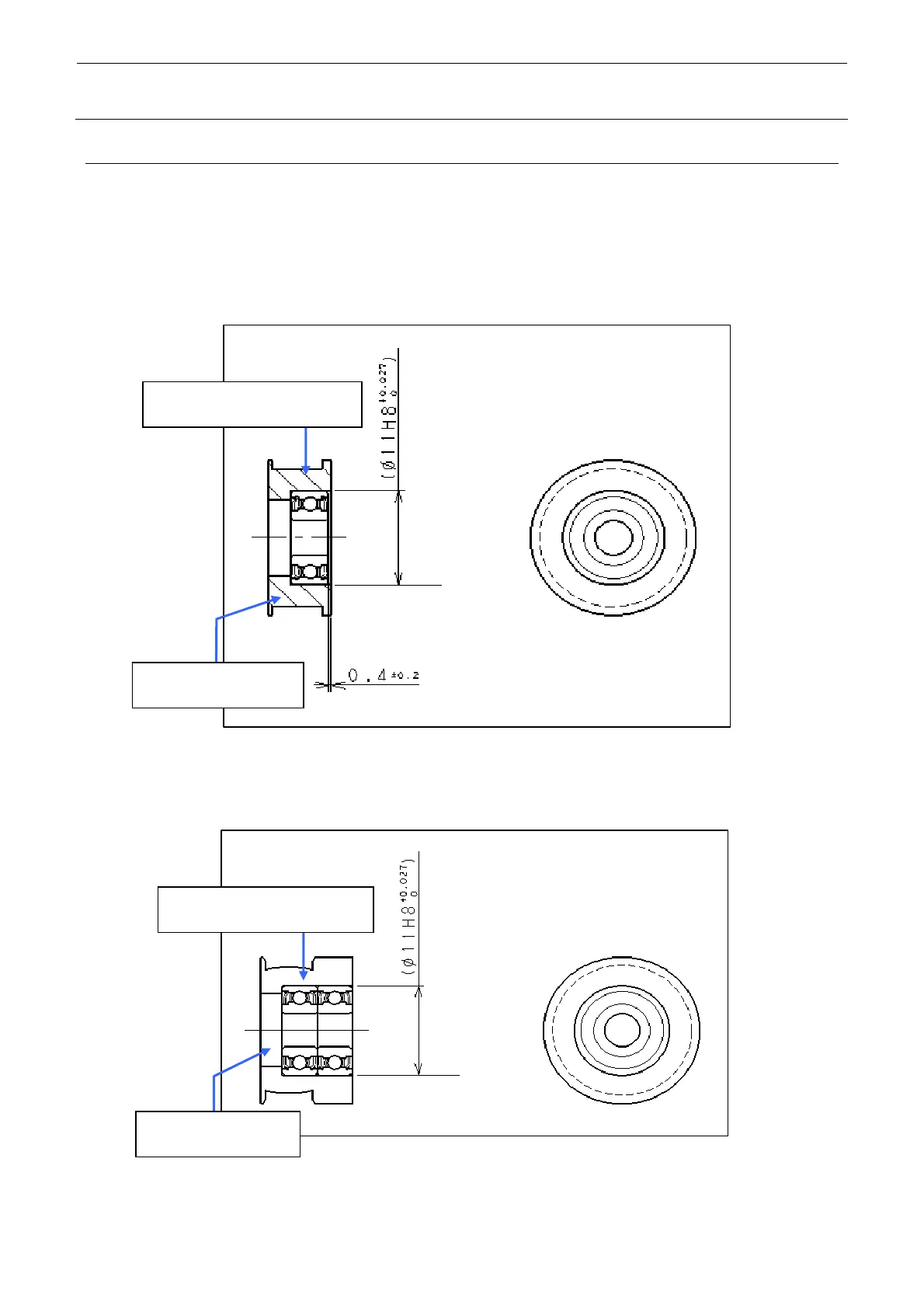

5-2-1. Transport Pulley A Assembly: E21117150A0
SB104000100
Roll bearing Q’ty: 1
E2111715000
Transport pulley A Q’ty: 1
Figure 5-2-1-1 Transport Pulley A Assembly
5-2-2. Transport Pulley B Assembly: E20897210A0
E2089721000
Transport pulley B Q’ty: 1
SB104000100
Roll bearing Q’ty: 2
Figure 5-2-2-1 Transport Pulley B Assembly
