Rev. 2.0
Maintenance Guide
5-21
5-9.
Replacing the Support Tabl
e Home Position Sensor
(BU Home Position Sensor)
1)

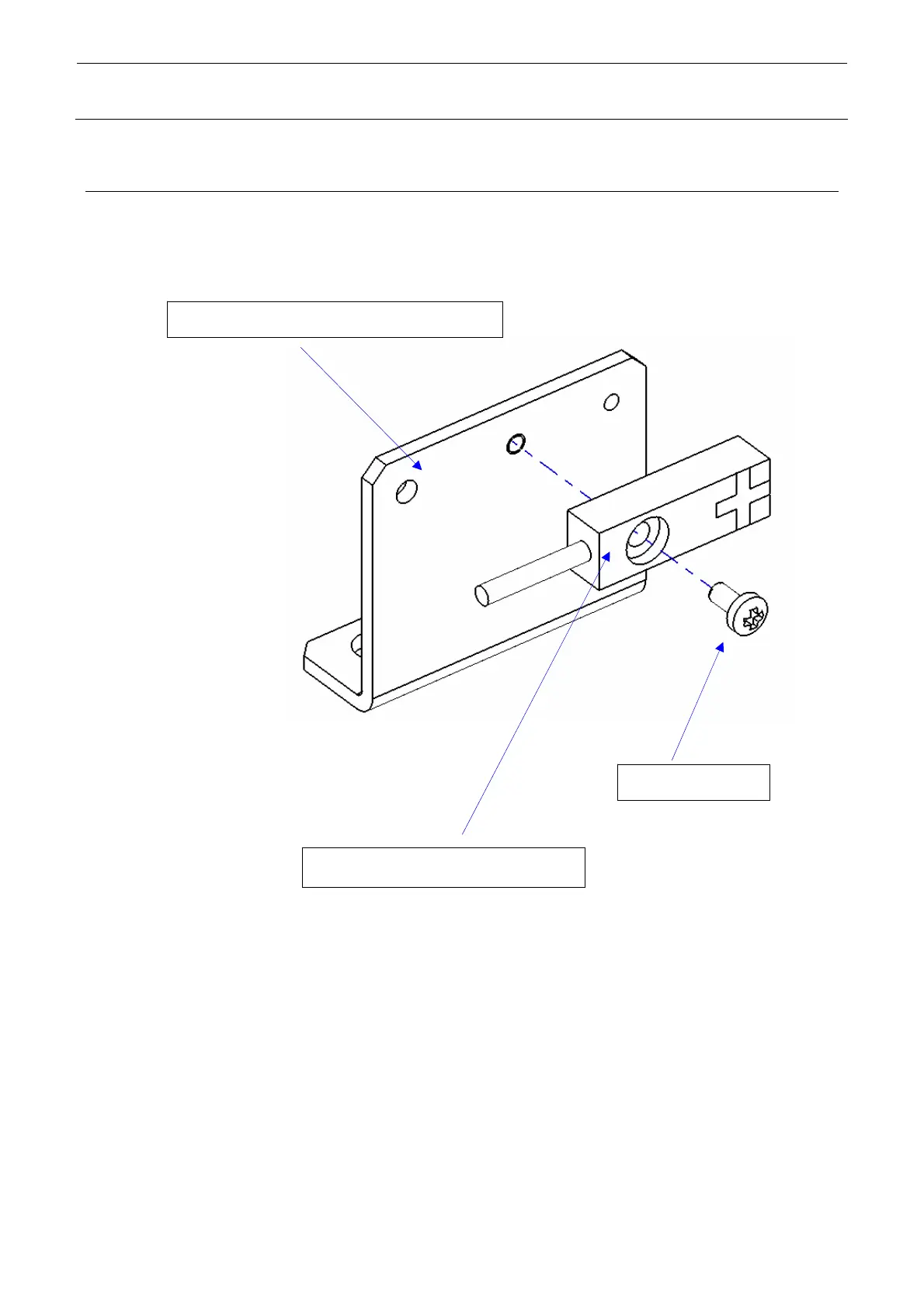

Detach the sensor from the sensor bracket.
2)
Adjust the distance between the sensor and sensor dog to 1 mm.
E4115729000: BU_SENSOR_BRACKET
Attached screw
40092573: BU ORG SENS ASM
Figure 5-9-1
BU Home Position Sensor
161
163
