14-7-2. Adjusting the BASE I/O Board (40071680)
The jumper switches and DIP switches on the BASE I/O board assembly used in the transport
unit have already been set at delivery. However, check that they are set as shown below before
setting the BASE I/O board assembly in the transport unit.
SW2 SW3 SW4（Board revision）
W1 W2 W3 W4
部
スイッチの設定位置、及
リセ
タクルの取付位置となります。
Ｏ Ｎ
1
2
3
4
5
6
7
8
Ｏ Ｎ
1
2
3
4
5
6
7
8
Ｏ Ｎ
1
2
3
4
5
6
7
8
2
6
15
31
6
15
1
62

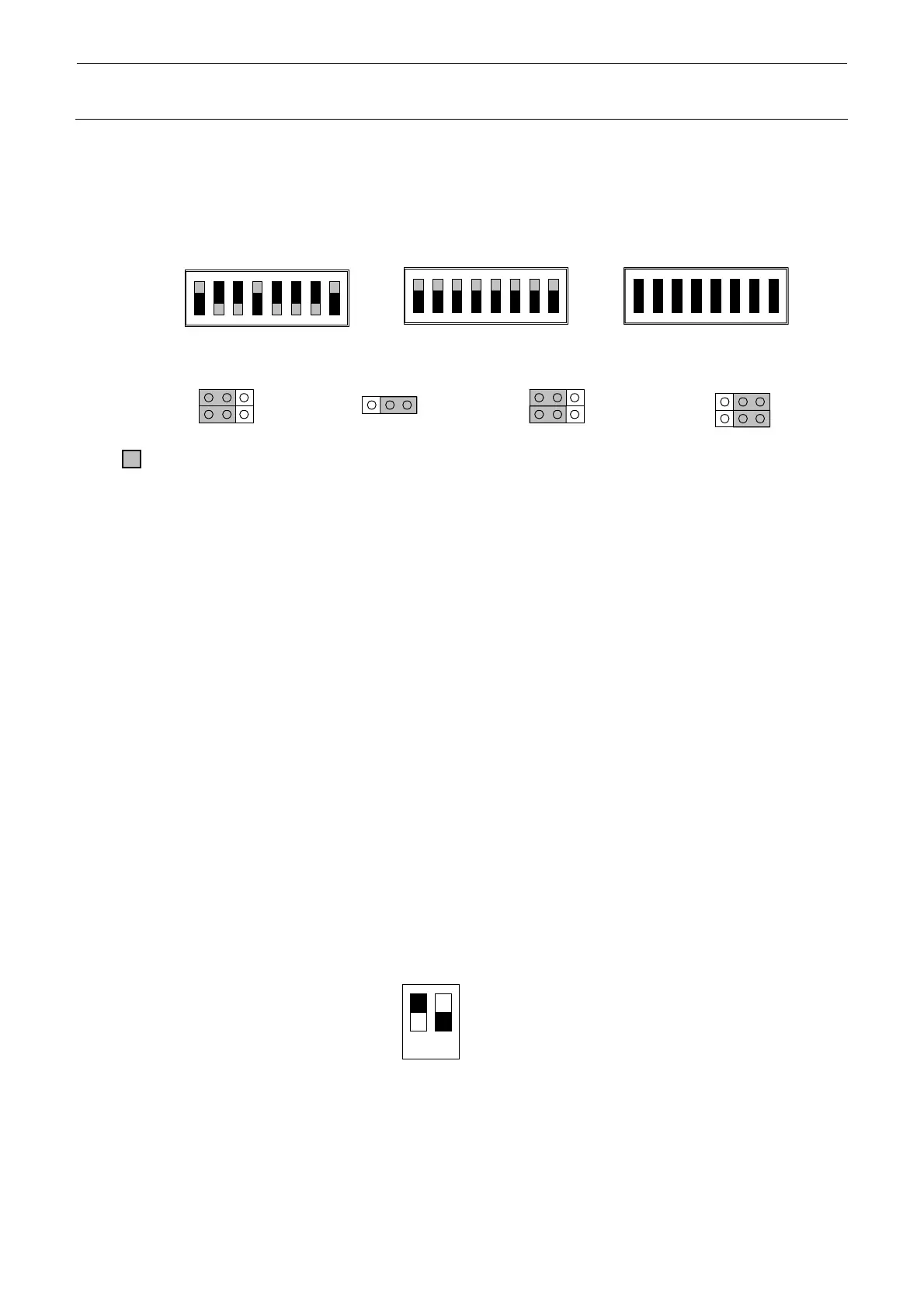

Figure 14-7-2-1 DIP-Switches on BASE I/O Board Assembly
14-7-3. Adjusting the Stepping Driver
A stepping motor is used for the transport motor and support table/auto width adjustment motor of
the transport unit.
To rotate the stepping motor correctly, it is necessary to adjust the 5-phase stepping driver.
• IN, Center, OUT transport motor (Transport stepping motor)
HM001320000 5-phase stepping driver
• Support table/width adjustment motor (non-EN specification)
HX004200000 5-phase stepping driver
• Support table/width adjustment motor (EN specification)
HX005450000 5-phase stepping driver
14-7-3-1. Adjusting the Drive Current of the Transport Stepping Motor
<Adjustment Procedure>
c Before starting the adjustment procedure, make sure that the DC power source output
voltage has been properly adjusted.
d Turn the transport stepping motor and measure the voltage across [CP1] and [CP2] on the
five-phase stepping driver with a digital voltmeter.
Connect the positive (+) and negative (-) probes of the digital voltmeter to [CP1] and [CP2],
respectively.
e Slowly turn the RUN variable resistor so that the voltage across [CP1] and [CP2] becomes
2.8 ± 0.01 V.
f Set the DIP switches on the step driver as shown in the figure below.
Figure 14-7-3-1-1 DIP Switch Settings
• Specification value
Drive current: 1.4 A ± 0.005 A/phase
(Measured with the voltage across CP1 and CP2. 2.8 V ± 0.01 V)
portion shows the switch set position and receptacle mounting position.
1. ON
2. OFF
ON
1 2
