JUKI KE-3010 - Replacing the Bank-Up Cylinder (Optional Replacement Table)

Rev. 2.0
Maintenance Guide
9-5
9-1-2. Replacing the Bank-up Cylinder (Optional Replacement Table)
1) Turn OFF the compressed air to the machine main unit. (Hand valve)
2) Remove the hexagon socket head cap flat screw (M6×20).
3) Remove the cylinder mounting screws to detach the cylinder from the supporter.
4) Attach the speed controller and shaft to a new cylinder.
5) Reassemble the components in the reverse order of disassembly.
6) Turn ON the compressed air to the machine main unit and adjust the cylinder speed.

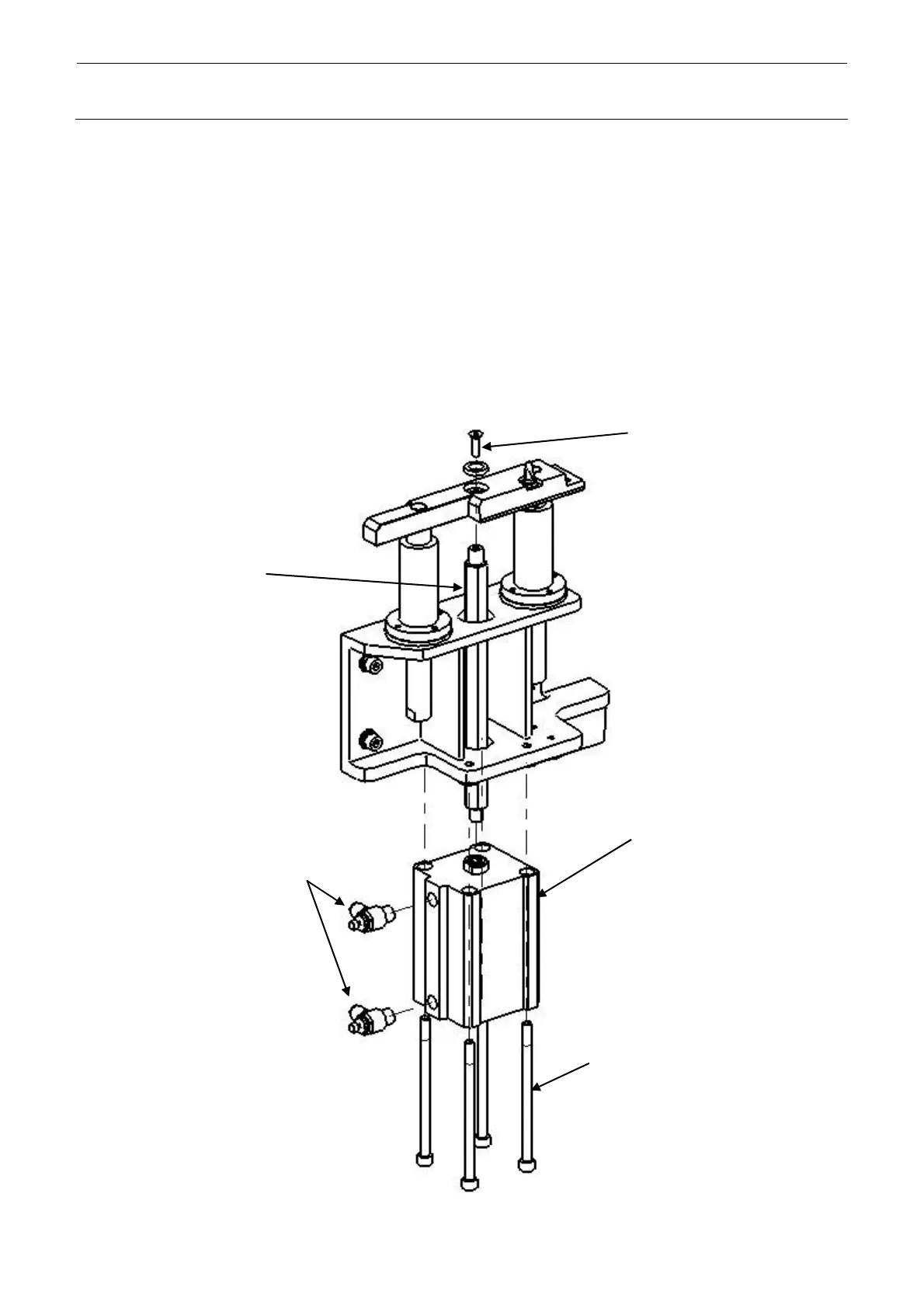

<M and L Specifications>
40110295
LIF_CYL_SHAFT
PA630750300
AIR CYLINDER
40093854
CYLINDER_SCREW_M8_L=125
PC015203000
SPEED CONTROLLER
SM1062052TP
Hexagon socket head
cap flat screw
