Rev. 2.0
Maintenance Guide
16-6

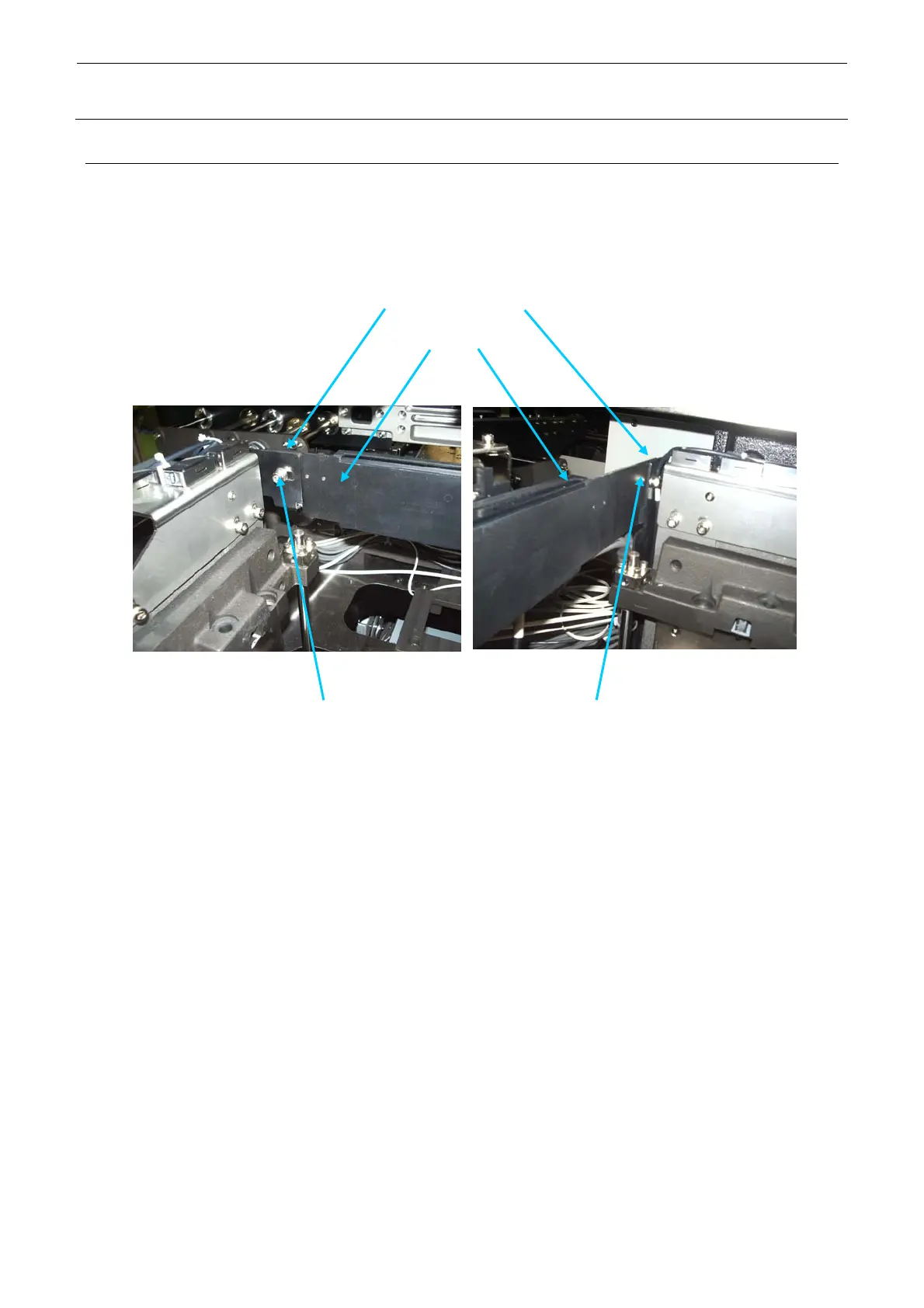

16-6. Detaching the FPI (Rear) (XL Board Specifications)
When viewed from the rear of the machine, the FPI (rear) is secured to the mounting holes in the
FPI side brackets L and R with the SEMS cap bolts (M6 × 12) that are secured to the base frame.
To detach the FPI, remove two bolts and slide it upward.
M6
12 SEMS cap bolt
FPI assembly R
FPI side bracket L FPI side bracket R
Figure 16-6-1
