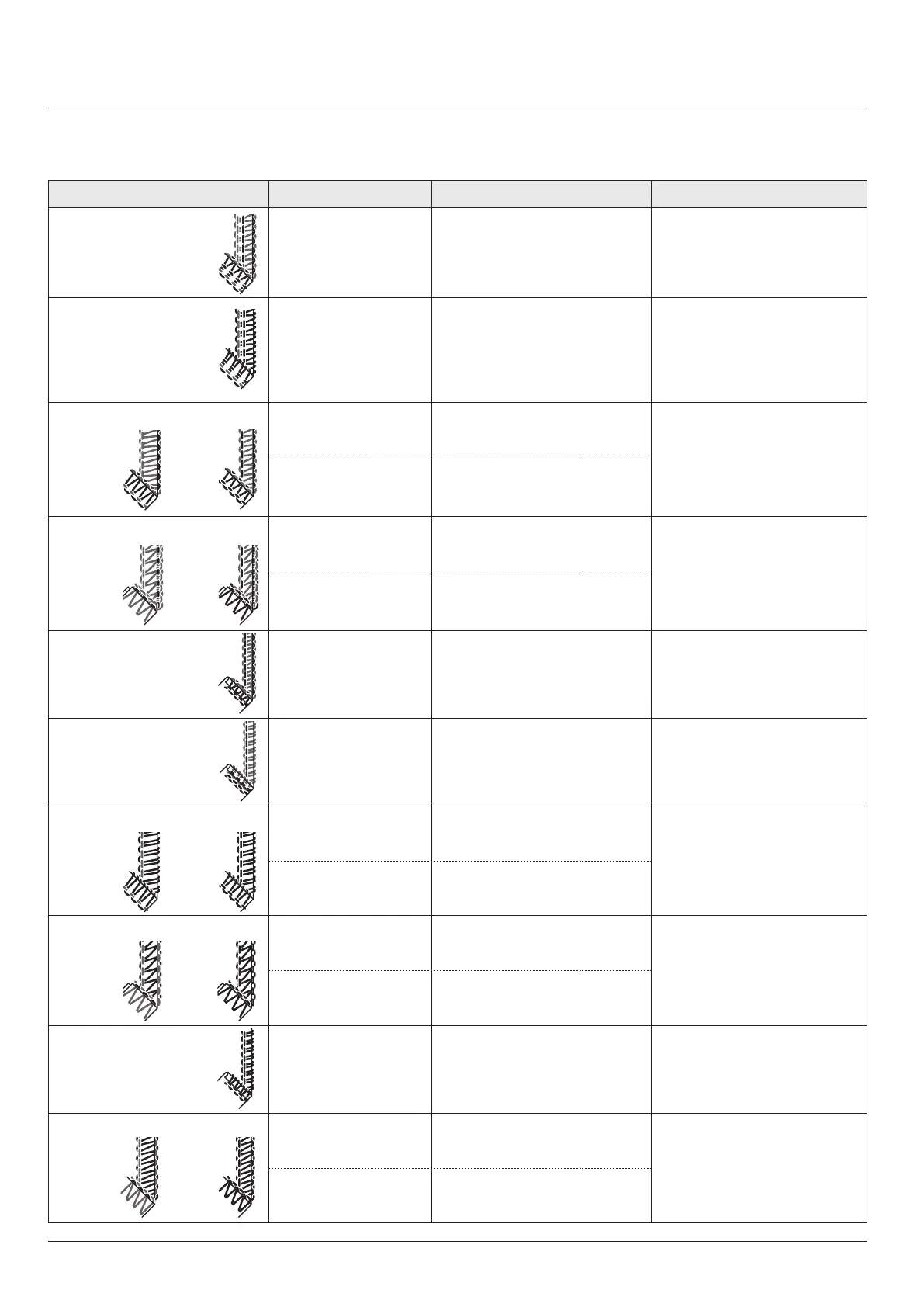

Stitch chart
Stitch Stitch width Thread tension Basic settings
4-Thread overlock with
integrated safety seam
5-7.5 mm,
right and left needles
Left needle (beige) 3-5
Right needle (green) 3-5
Upper looper (purple) 3-5
Lower looper (red) 3-5
Stitch length: 2.5
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N-2 (knits)
0.7-N (wovens)
3-Thread super stretch
5-7.5 mm,
right and left needles
Left needle (beige) 3-5
Right needle (green) 3-5
Lower looper (red) 1.5-4
Stitch length: 2-2.5
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N-2 (knits)
0.7-N (wovens)
Upper looper converter
3-Thread overlock
5-7.5 mm, left needle
Left needle (beige) 3-5
Upper looper (purple) 3-5
Lower looper (red) 3-5
Stitch length: 2.5
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N-2 (knits)
0.7-N (wovens)
3-5.5 mm, right needle
Right needle (green) 3-5
Upper looper (purple) 3-5
Lower looper (red) 3-5
3-Thread Flatlock
5-7.5 mm, left needle
Left needle (beige) 1-3
Upper looper (purple) 1-5
Lower looper (red) 5-7
Stitch length: 2-2.5
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N
3-5.5 mm, right needle
Right needle (green) 1-3
Upper looper (purple) 1-5
Lower looper (red) 5-7
3-Thread narrow seam
2 mm, right needle
Right needle (green) 3-6
Upper looper (purple) 3-6
Lower looper (red) 3-5
Stitch length: 0.7-1.5
Cutting width: 2.5-3.5
(Left needle 4.5-5.5)
Di󰀨erential: N-0.7
Stitch lever: roll hem
3-Thread roll hem
2 mm, right needle
Right needle (green) 3-5
Upper looper (purple) 3-4
Lower looper (red) 3-5
Stitch length: 0.7-1.5
Cutting width: 2.5-3.5
(Left needle 4.5-5.5)
Di󰀨erential: N-0.7
Stitch lever: roll hem
2-Thread wrapped overlock
5-7.5 mm, left needle
Left needle (beige) 4-6
Lower looper (red) 3-5
Stitch length: 1-2.5
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N
Upper looper converter
3-5.5 mm, right needle
Right needle (green) 3.5-5.5
Lower looper (red) 2.5-4.5
2-Thread Flatlock
5-7.5 mm, left needle
Left needle (beige) 1-3
Lower looper (red) 3-5
Stitch length: 2-3
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N
Upper looper converter
3-5.5 mm, right needle
Right needle (green) 2-4
Lower looper (red) 4-6.5
2-Thread roll hem
2 mm, right needle
Right needle (green) 3-5
Lower looper (red) 4-6
Stitch length: 0.7-1.5
Cutting width: 2.5-3.5
(Left needle 4.5-5.5)
Di󰀨erential: N-0.7
Upper looper converter
2-Thread overlock
5-7.5 mm, left needle
Left needle (beige) 1-3.5
Lower looper (red) 4-6
Stitch length: 2.5
Cutting width: 2.5-5.0
(Left needle 4.5-7.0)
Di󰀨erential: N
Upper looper converter
3-5.5 mm, right needle
Right needle (green) 1.5-4
Lower looper (red) 5.5-7.5
