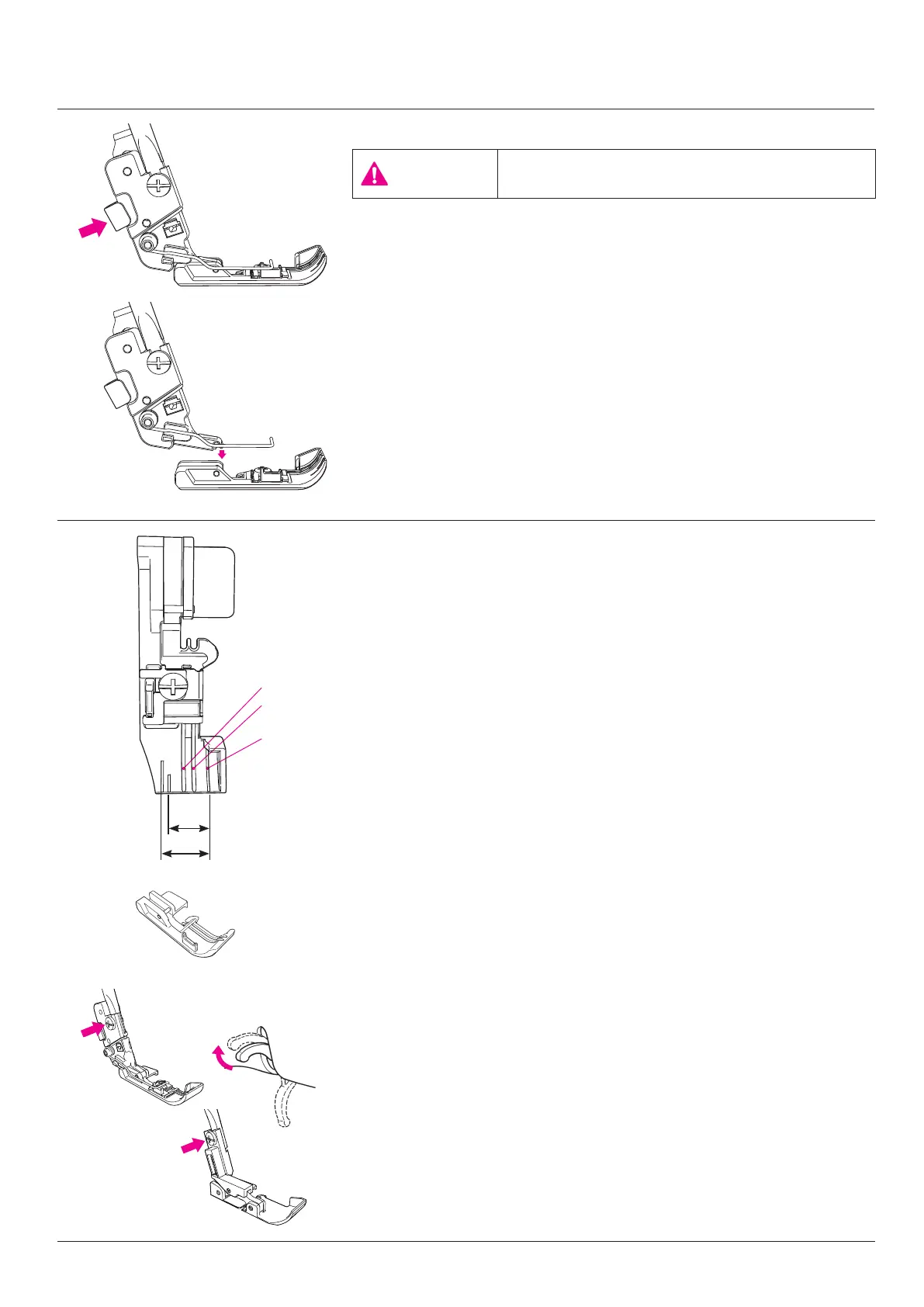

Changing the presser foot
CAUTION
When you want to change the presser foot, turn
OFF the power switch and lower the upper knife.
• Raise the presser foot.
• Turn handwheel towards you until needles are fully raised. Match the
matching up marks on handwheel and side cover.
Press the catch (C) to release the presser foot from the clamp. Raise the
presser foot shank to the highest position (B) and remove the presser foot
to the left. To attach the presser foot, place it under the shaft. The groove
in the shaft should line up exactly with the presser foot pin (D). Lower the
presser foot lifting lever and check that the groove in the shank should line
up exactly with the presser foot pin (D). If it is not lined up, press the catch (C)
to line up.
Using the machine
How to use the presser foot
Use the marker on the presser foot as a guide when placing the material
under the presser foot.
(F) Left needle position
(G) Right needle position
(H) Knife position (when the cutting width adjusting dial is set at scale mark
“3.0”)
The knife position represents the position at which the material is cut.
・
Curve foot
The curve foot is able to make small turns since it is smaller than the stan-
dard presser foot. It is useful for sewing small curves.
D
C
8.5mm
10mm
F
G
H
・
Tractor foot
Multi-layered parts of the material can be easily fed under the tractor foot.
It is possible to produce seams at regular intervals by using the tractor foot.
How to set tractor foot
• Raise the presser foot.
• Turn handwheel towards you until needles are fully raised.
Using the screwdriver, loosen the (A) screw and remove the presser foot.
Raise the presser foot lifter to position (B) illustreated in the gure, attach
the tractor foot.
Securely tighten the (A) screw for tractor foot holder.
A
B
A
