JUKI MO-3500 - Right Needle

27

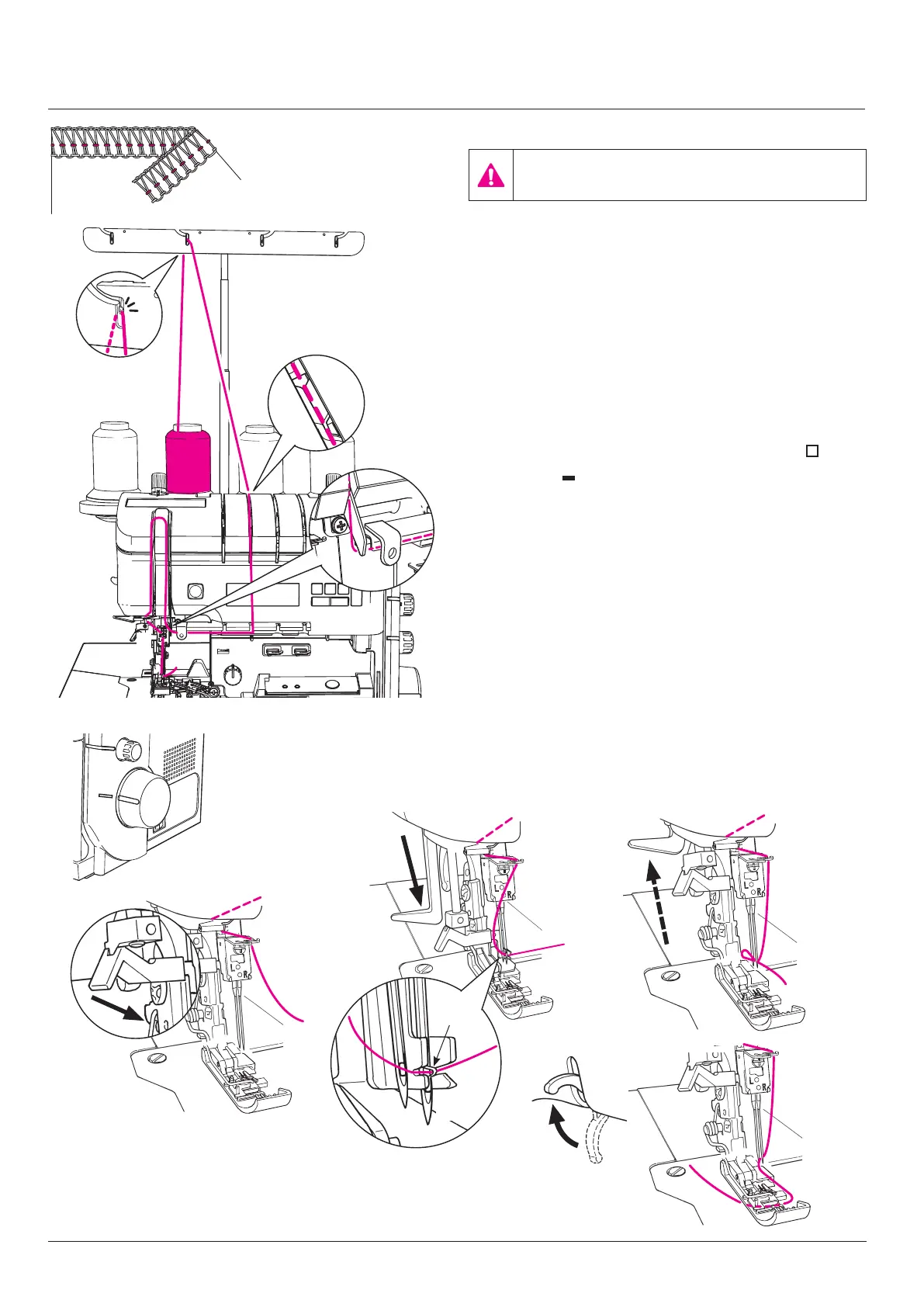

Right-hand needle, green markings
Switch the machine o󰀨 (power switch”0”)
Place the spool on the spool holder pin as illustrated.
(1) Thread the thread guide which is located just above
the spool from back to front.
 Atthistime,tthethreadrmlyinthegroove.
(2) Thread the thread guide No.1
(3) Route the thread in the groove.
(4) Put the thread under the thread guide plate.
(5) Thread the thread take-up cover (marked in green)
(6) Thread the thread guide.
(7) Thread the needle bar thread guide (right-hand side).
(8) Turnthehandwheeltowardyoutoalignthe“
” mark
withthe“ ” mark on the side face of the side cover.
Then, lower the presser foot.
(9) Set the right-/left-needle changeover lever to the right
needle side.
Be sure to move the right-/left-needle changeover
lever to the right needle side until it will go no further.
(10) Lower the threading lever as far as it goes.
(11) Push the thread into section A with both hands.
(12)Thethreadautomaticallypassesthroughtheneedle
eyeletbypushingthethreadingleverupward.
(13) Lift the presser foot.
(14)Pulloutthethreadbyapproximately10cmtorouteit
under the presser foot and draw it out from its rear.
Threading 4/3 Thread OL
8
10
11
A
7
6
9
12
14
13
1
3
4
5
7
6
2
Thread
guide No. 1
