JUKI MO-3500 - Details of the Machine

5
LCD screen
Operation buttons
Chain-o󰀨 thread cutting button
Cloth plate

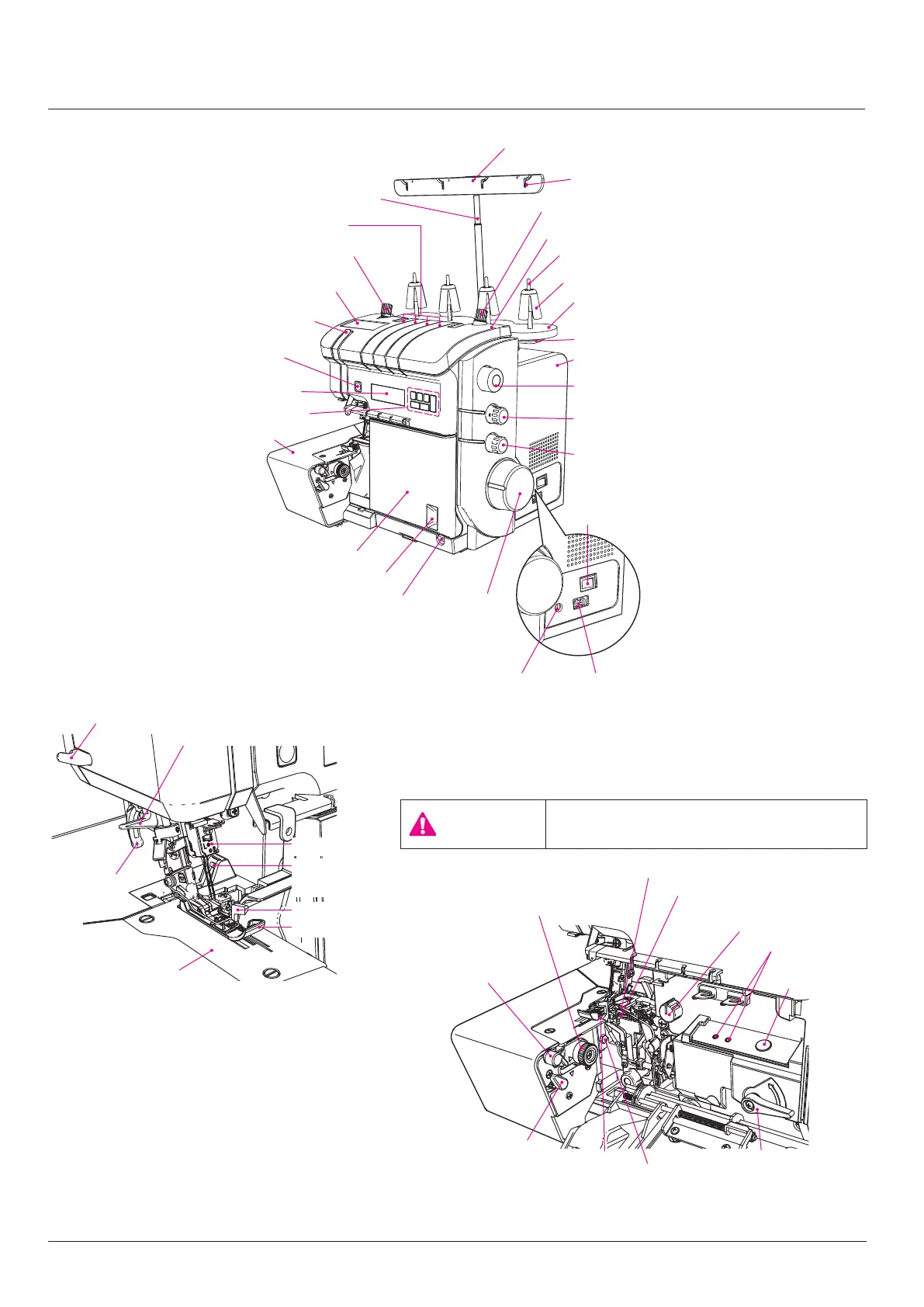

Details of the machine

View with looper cover open
CAUTION
Be sure to turn o󰀨 the power switch be-
fore opening the looper cover.
Thread cutter
Presser foot
lifter
Stitch plate
Needle clamp
Upper knife
Presser foot
Automatic needle threader
Thread guide support
Retractable support rod
Thread take-up cover
Open thread guide
Foam pad
Main Power/Light switch
Thread stand
Spool holder pin
Anti - vibration cone
Stitch length adjustment dial
Di󰀨erential feed adjustment dial
Side cover
Handwheel
Inlet of electric power cord
Looper cover with built in knife guard
Looper cover opening indent
Top cover
Knee lifting lever hole
Magnet needle tray
Micro-lifter dial
Threading hole
Upper knife
changeover knob
Lower knife
Upper looper
Lower looper
Upper knife
xing screw
Cutting width adjusting dial
Air-control
pushbutton
Threading change-
over lever
Selection lever for
overlocking or roll
hemming
Thread guide No. 1
Presser foot pressure regulating knob
Stitch changeover knob
Inlet of the controller
Looper thread tension ne
adjustment knob
Chain-o󰀨
thread cutter
