INSTALLING THE SENSORS

The package contains three wireless sensors with a factory setting that is activated immediately when the

battery is inserted (the remote control must be activated in the system before it can be used – see Using

Remote Control). We recommend that you start by installing the alarm package’s main components, and

only adjust the settings once the system is working properly. This section will help you to alter the system

settings to your requirements.

First determine where the sensors are to be located:

NOTE! The sensors must be situated:

 in locations that are not easy to access

 in the most exposed rooms or close to important entrances

 at a safe distance from extreme temperature sources (radiators, ovens, stoves, etc.) and large

metal objects that can disrupt the wireless signal transfer

 where the best RF performance can be achieved (if necessary).

When you have selected the locations for the sensors, you can start the system.

A. Door/window sensor

The door/window sensor consists of two parts: a transmitter and a magnet. When the two parts of the

sensor have been installed on the door or window, it will be triggered and signal to the Smart Panel when

the door or window is opened. One door/window sensor is factory-programmed for zone 1 and the other

for zone 2, although you can adapt these settings to your own requirements. (See Zone Settings in

Operating different modes and Code settings for zone allocation).

Starting door/window sensor

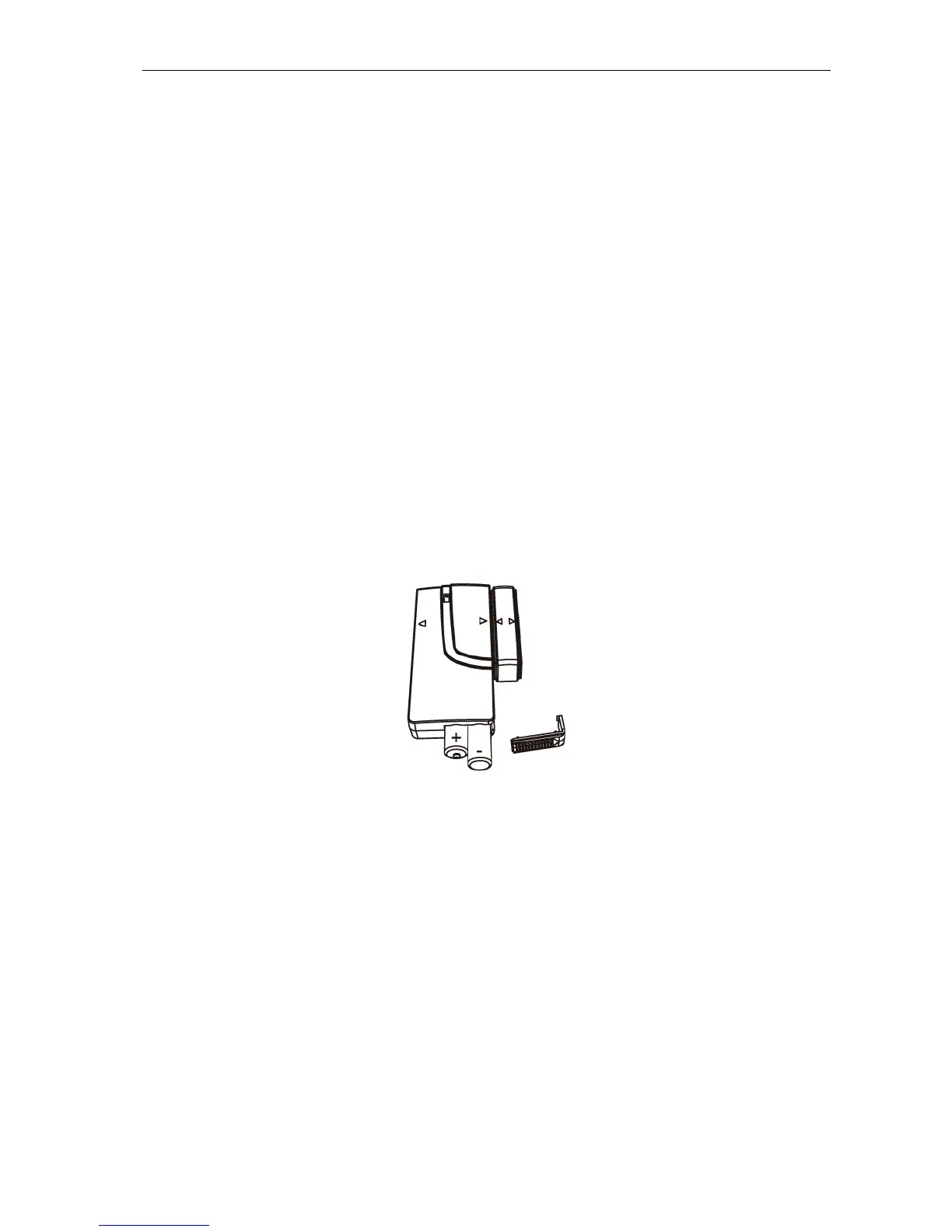

 Remove the battery cover and insert 2 new AAA batteries, with the correct polarity as illustrated

below, and refit the cover.

 Low battery level indicator: If the batteries need to be replaced, the RED LED on the transmitter will

flash slowly.

Installation of door/window sensor

 Install the transmitter on a solid surface, e.g. the door or window frame.

 Install the magnet on a moving surface, e.g. the door leaf or window casement.

 Check that the markings >/< on the sides of the transmitter and magnet are directly opposite each

other as illustrated.
