JUMO 4341 - Block and Connection Diagrams; 2-Wire Circuit

7

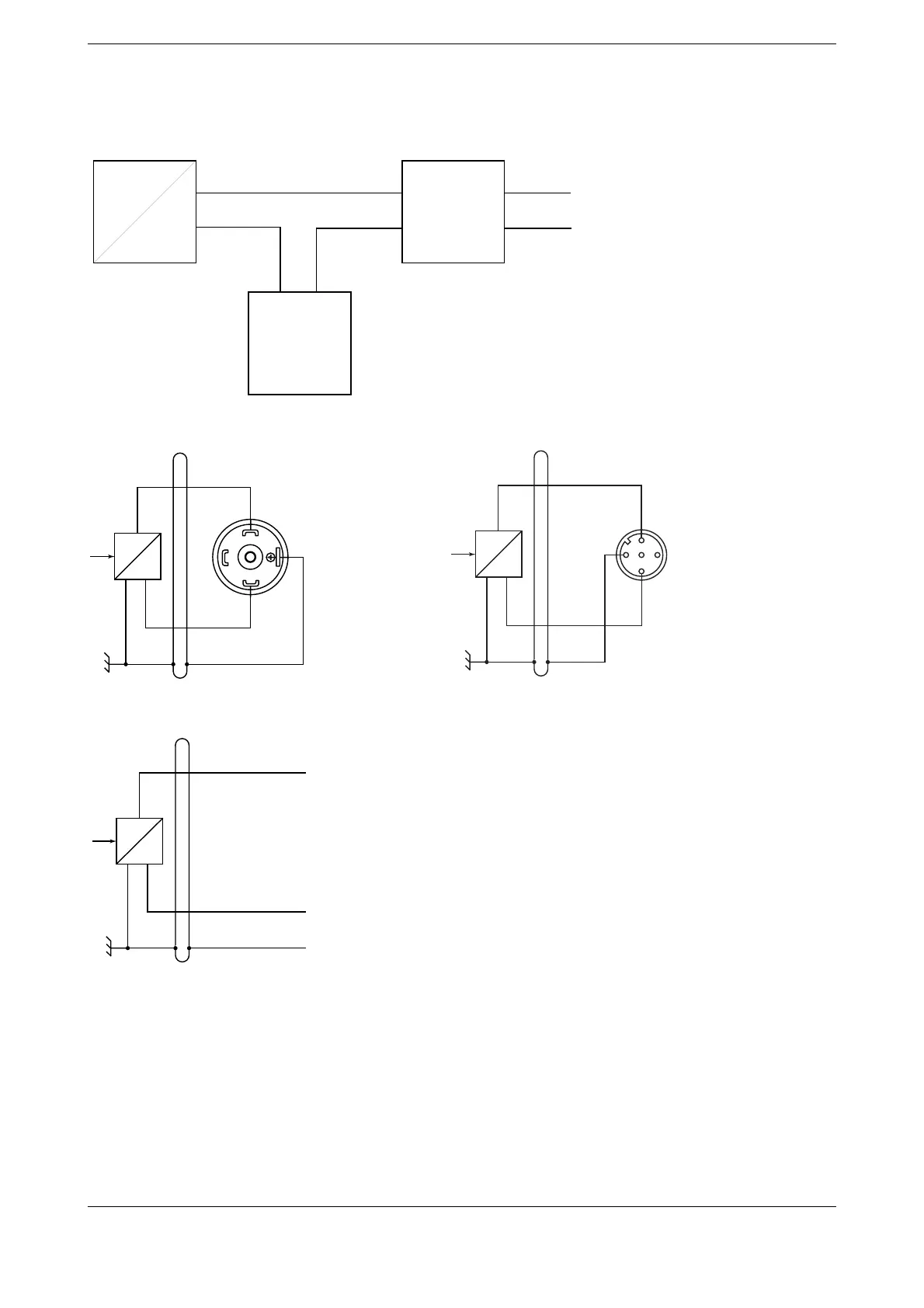

4.3 Block/connection diagrams
4.3.1 2-wire circuit
All components of the measuring circuit are wired in series.
(Output 4 – 20 mA)
Connection with terminal box Connection with plug M12
Connection with connecting cable (Extra code /73)
L1
N
L+
L-
0V / S-
U
B
/ S+
Power
supply
Output
Evaluation
(recorder)
(indicator)
P
I
+
+
-
-
+
-
1
2
3
Shielding
0V / S-
U / S+
B
P
I
Abschirmung
0V / S-
U + / S+
B
P
I (U)
1
4
2
3
0V / S-
U / S+
B
P
I
(1)(white)
(grey)
(black)
(2)
Shielding
