23
03.11 EN

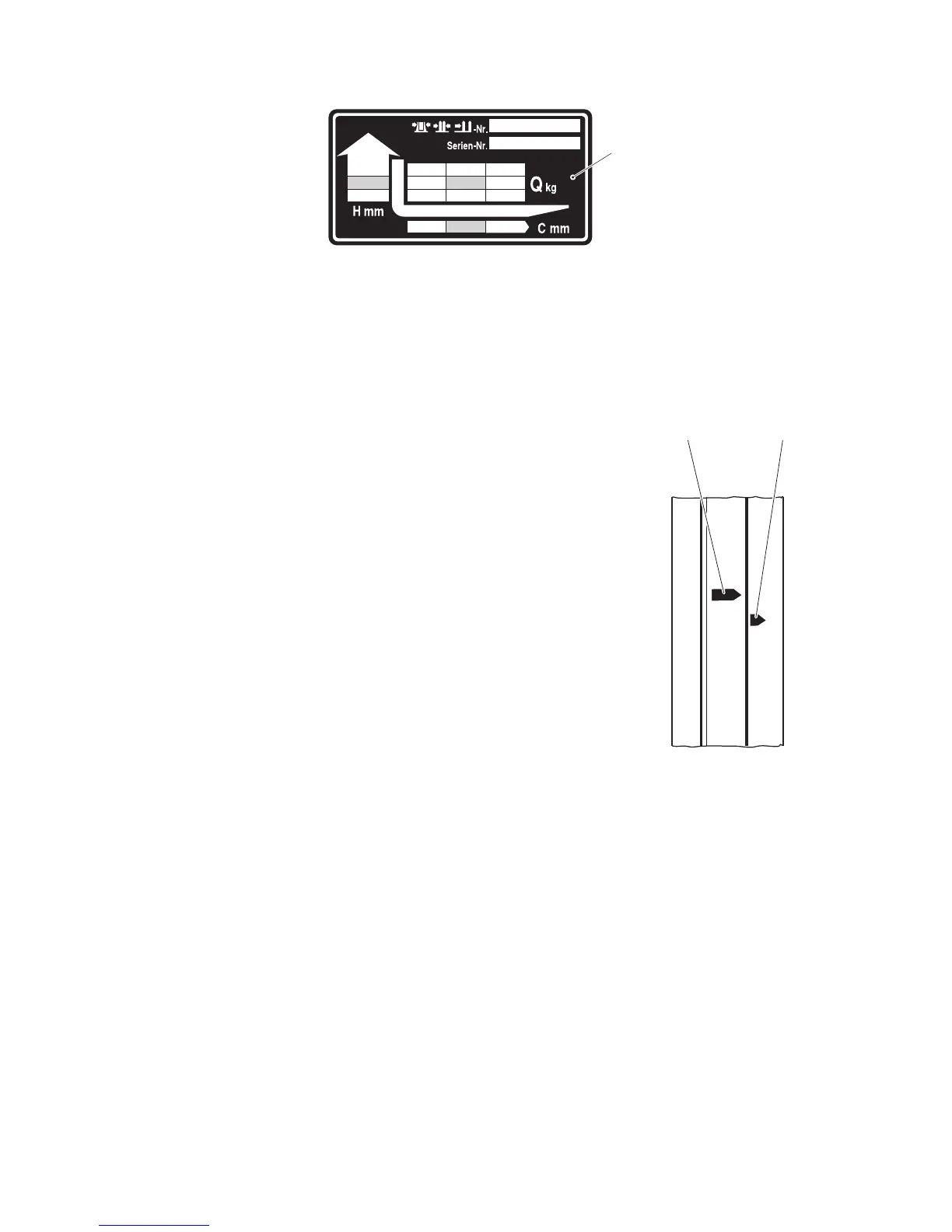

4.2 Truck load chart
The load chart (40) indicates the maximum capacity Q (in kg) for a given load centre
D (in mm) and corresponding lift height H (in mm) for the truck with a horizontal load.
Example of calculating the maximum capacity:
With a load centre of gravity distance C of 600 mm and a maximum lift height H of
3600 mm. the max. capacity Q is 1105 kg.
The arrow shaped marks ("41" and "41") on the inner
mast and bottom and outer tie bar indicate to the driver
when he has exceeded the height limits specified by the
capacity plate (21).
600
X.XXXX.XX.XX
11053600
40
41
41
23
03.11 EN
4.2 Truck load chart
The load chart (40) indicates the maximum capacity Q (in kg) for a given load centre
D (in mm) and corresponding lift height H (in mm) for the truck with a horizontal load.
Example of calculating the maximum capacity:
With a load centre of gravity distance C of 600 mm and a maximum lift height H of
3600 mm. the max. capacity Q is 1105 kg.
The arrow shaped marks ("41" and "41") on the inner
mast and bottom and outer tie bar indicate to the driver
when he has exceeded the height limits specified by the
capacity plate (21).
600
X.XXXX.XX.XX
11053600
40
41
41
