Jungheinrich EKS 310k User Manual

0504.GB
C 2

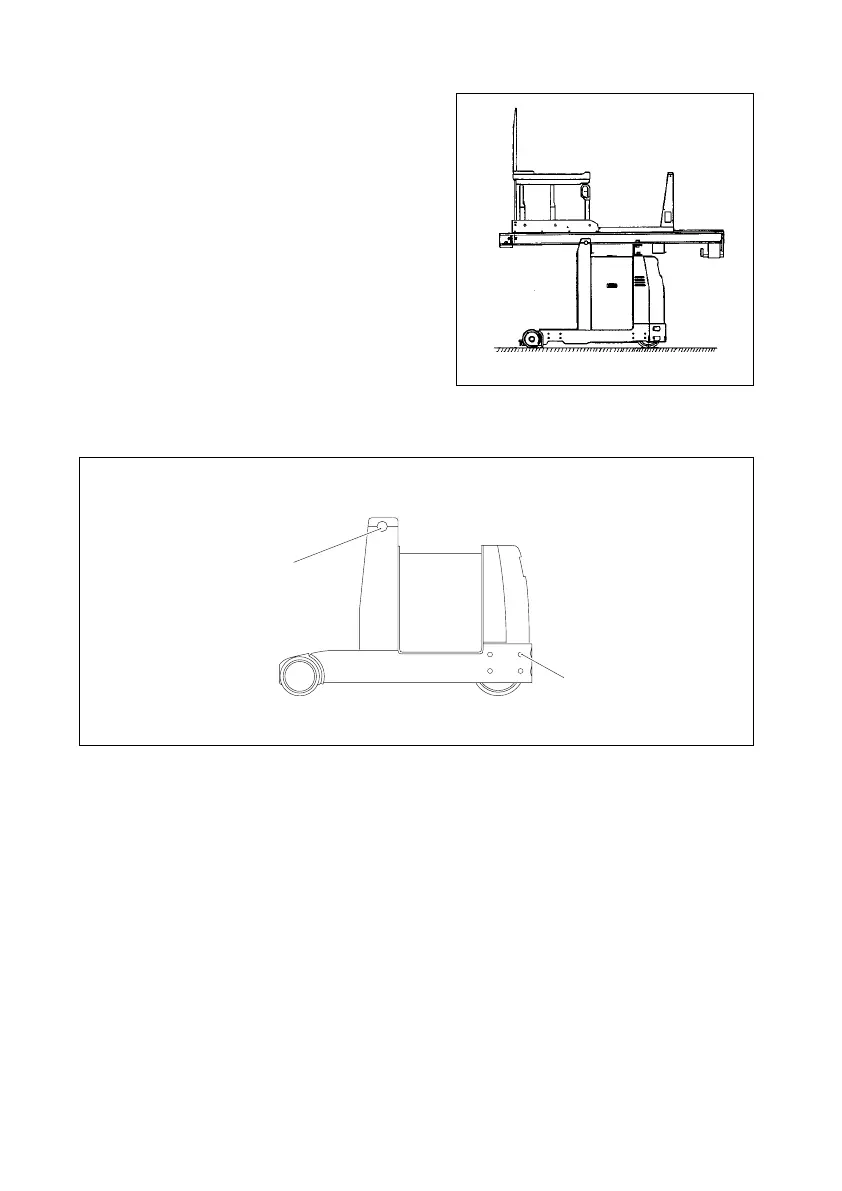

Crane loading with collapsed mast
– When the mast is collapsed the crane
lifting gear must be attached to the top
and bottom mast cross members.
– If the truck is attached to the crane with
the mast collapsed, the transport parts
must be attached to it.
M
Attach the crane slings to the strap points
(1) so that it cannot slip under any
circumstances.
Crane loading with mast disassembled
– When the mast is disassembled, attach
the crane slings to either side of the
frame (2) and the top mast bearing (3).
M
Attach the crane slings to the strap points (2, 3) so that it cannot slip under any cir-
cumstances.
1
1
3
2
0504.GB
C 2
Crane loading with collapsed mast
– When the mast is collapsed the crane
lifting gear must be attached to the top
and bottom mast cross members.
– If the truck is attached to the crane with
the mast collapsed, the transport parts
must be attached to it.
M
Attach the crane slings to the strap points
(1) so that it cannot slip under any
circumstances.
Crane loading with mast disassembled
– When the mast is disassembled, attach
the crane slings to either side of the
frame (2) and the top mast bearing (3).
M
Attach the crane slings to the strap points (2, 3) so that it cannot slip under any cir-
cumstances.
1
1
3
2
