3 Operating and Display Equipment

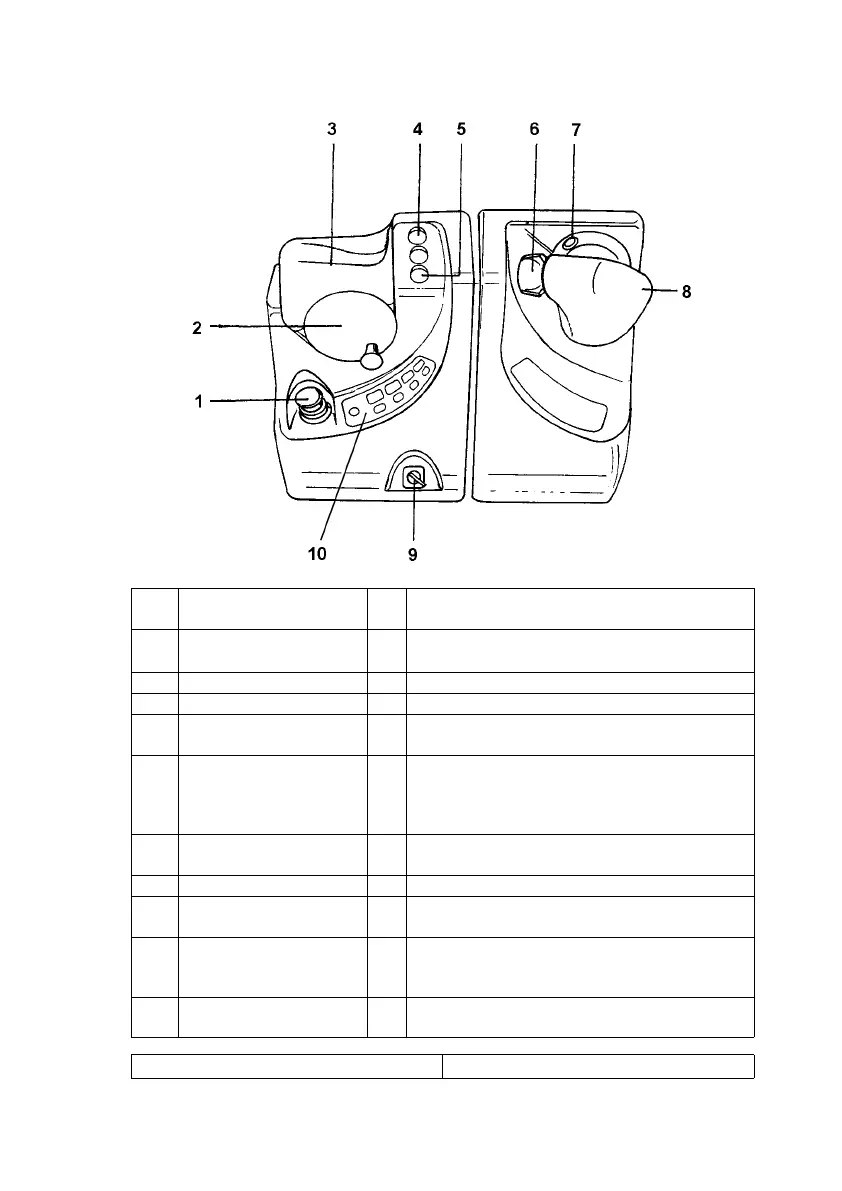

3.1 Operating and display equipment on control panel

Item Operating / Display

Equipment

Function

1 EMERGENCY

DISCONNECT switch

t Interrupts the main supply, all truck

movements are disabled

2 Steering wheel t Steers the truck in the required direction.

3 Support handle t Two-hand operation

4 “Lift cutout override”

switch

o Automatic lift cutout is deactivated.

5 Guidance On „switch“ RG

Sets the drive wheel to straight ahead position

Activates the aligning process (and frequency

selection for multi-frequencies)

6 Travel selection switch t Controls the travel direction and speed of the

truck

7 “Warning” switch t Activates a warning.

8 Hydraulic control switch t Raising and lowering of Main and Aux. lift,

reach and swivel of load forks

9 Keyswitch t Switches control voltage on and off. Removing

the key prevents the truck from being switched

on by unauthorised personnel.

10 Optional

function keys

t Activates or confirms the function related to

the symbol displayed above it

t = Standard equipment o = Optional Equipment
