2.5 Mast transport safety

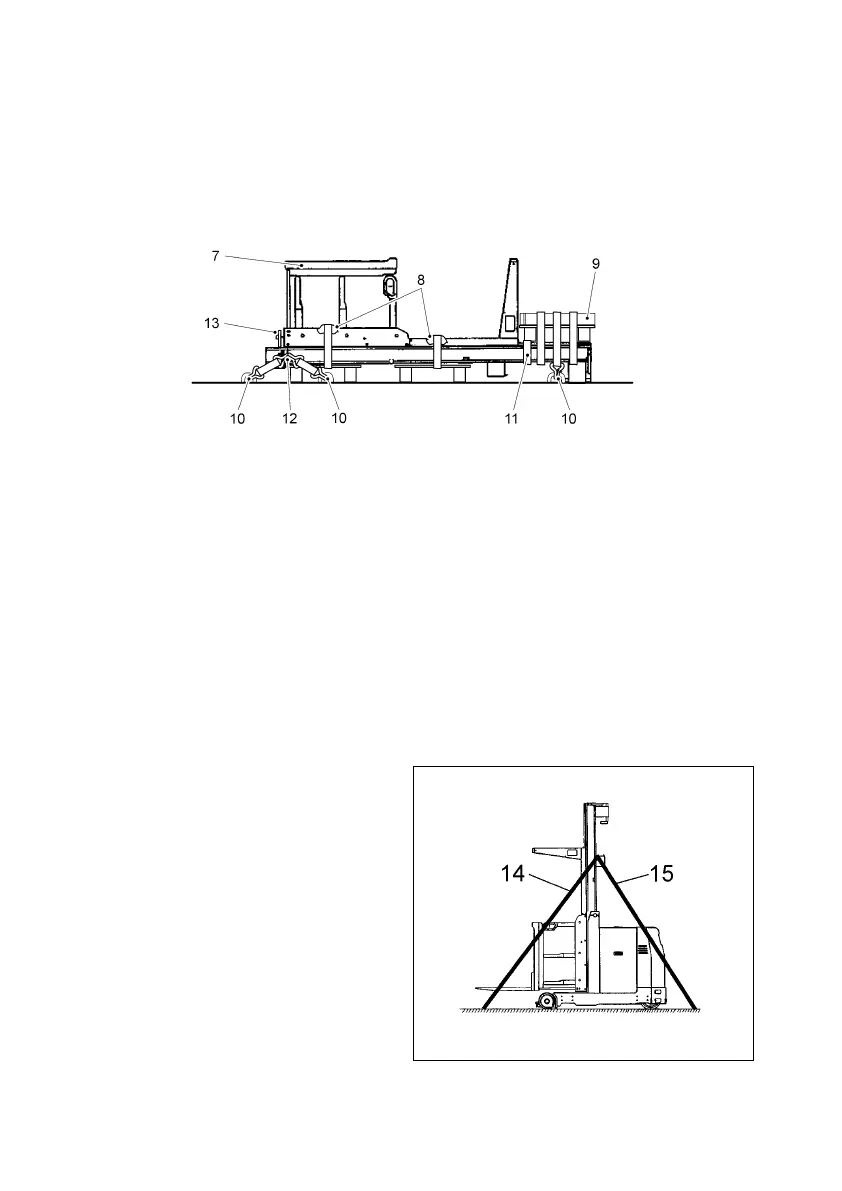

Secure the driver’s position carriage (13) to prevent it from slipping.

If the mast is stored on a pallet(s), fasten them securely to the mast (11).

Use the lower attachment bracket (10) as the "mast bottom" strap point for securing

to the lorry eyes (12).

Route the belt over the lift cylinder/chains to act as the "mast top” strap point.

Protect the belt placed over the lift chains with a suitable material (8).

Any supplied parts (forks (9), guide rollers etc.) can be attached to a pallet, which can

then be fastened to the mast.

2.6 Mast assembled

Safely transporting the truck with the mast assembled

If the truck battery is supplied in the

chassis, disconnect the

Only use belts with a rated capacity

of >5 to.

At least 4 belts, 2 on the left and 2 on

the right (14,15) must be attached to

the mast.
